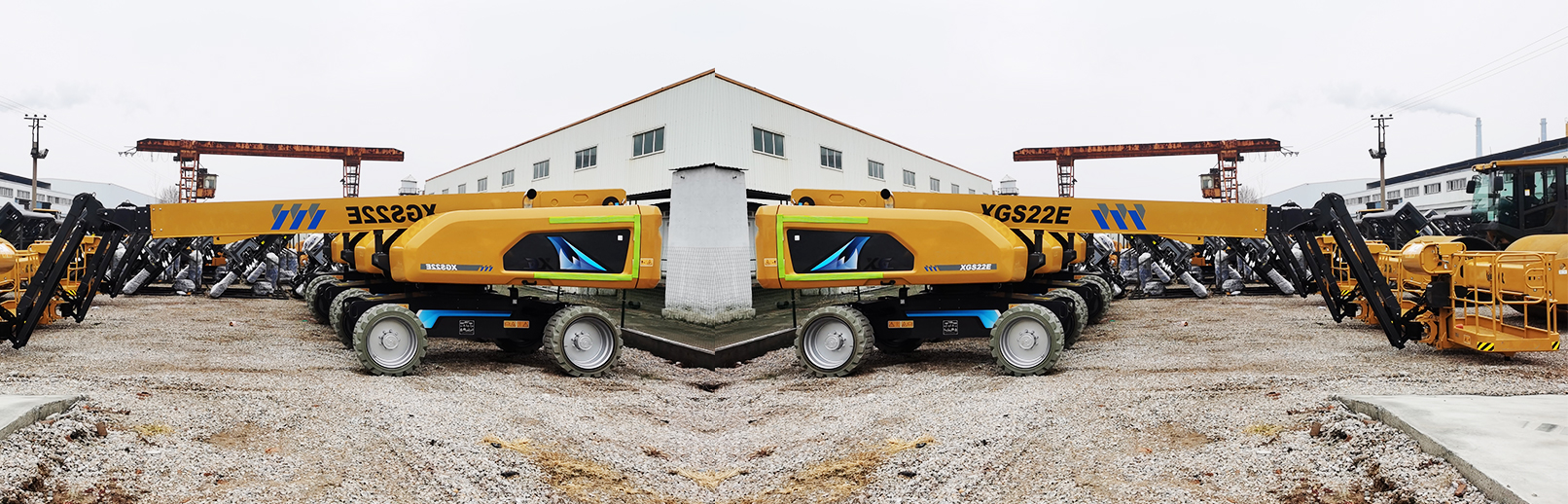

Diesel articulated boom lift
1. Complete Safety Devices :Standard four-link weighing devices; measures such as overload protection, automated detection device for detecting platform amplitude and height, automatic control of the movement speed and traveling speed of the boom, and high-precision weighing devices, to ensure the safety and stability of operation in all directions.
2. Control box:Full proportional control handle and CAN bus as well as PLC control system with high positioning accuracy are easy to be controlled and can be operated by the users at will.
 |
 |  |
Model | Engine Model | Rated Power (kw) | Rated Load of Platform(kg) | Max Operating Height(m) |
Perkins 404D-22 | 38 | 230 | 14.05 | |
Perkins 404D-22 | 38 36.3 | 230 | 18.6 | |
Perkins 404D-22T Deutz D2011 L04i | 43 41 | 340 | 22 | |
QSF2.8 71BHP KDI2504 TCR | 53 55.4 | 230 | 24.38 | |
Foton Cummins QSF2.8-71HP | 53 | 340 | 26.2 | |
Perkins 1104D-44T | 55.5 | 480 | 30.5 | |
Perkins 1104D-44T | 55.5 | 340 | 32.2 | |
Perkins 1104D-44T Cummins B3.3-85HP | 55.5 63 | 340 | 38.2 | |
Perkins 1104D-44T | 55.5 | 450 | 41.6 |
Scissor lift
1. Strong power: The diesel scissor lift has powerful power, and the four- wheel drive has strong climbing capacity. The scissors lift can shift high and low speeds.
2. Draggable engine tray: The engine is installed on the tray that can be dragged out, which facilitates maintenance and repair.
 |  |
Model | Max. Platform Height(m) | Platform Size(LxWxH mm) | Rated Load of Platform(kg) |
5.8 | 1655×740×1185 | 230 | |
8 | 2276×810×1254 | 230 | |
10 | 2276×1120×1254 | 320 | |
11.8 | 2276×1120×1254 | 320 | |
13.7 | 2636×1120×1254 | 230 |
