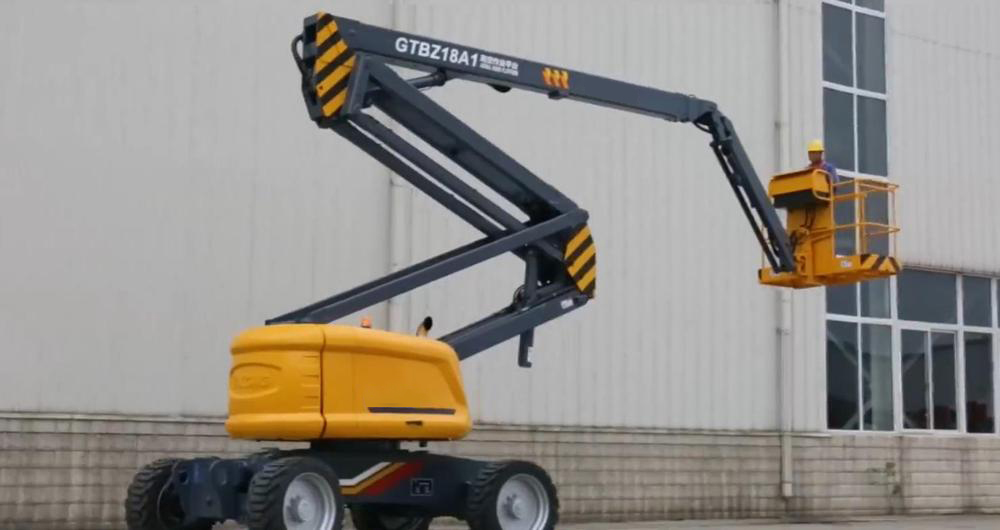

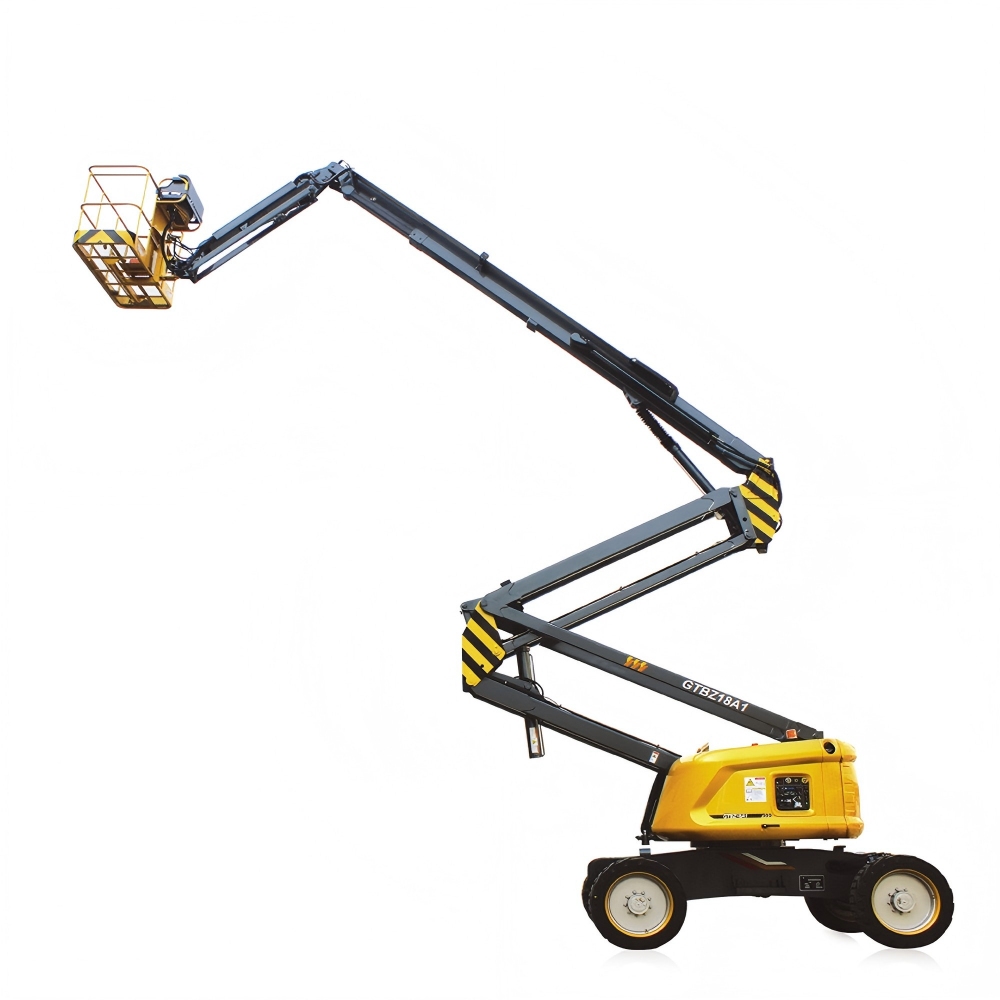

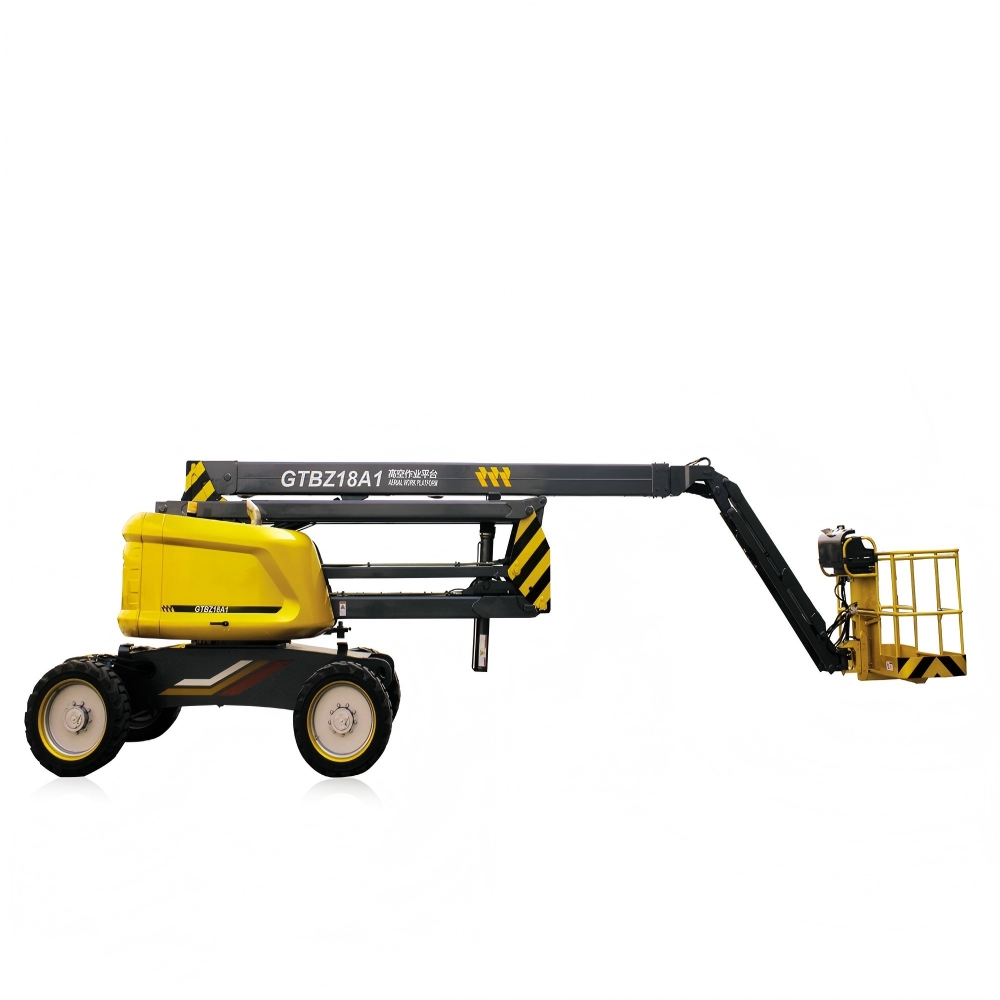

Home > Special purposs vehicleAerial Work PlatformXCMG GTBZ18A1 Aerial Work Platform
Item | Unit | Parameter |
a. Overall length | mm | 9080 |
b. Overall width | mm | 2490 |
c. Overall height | mm | 2680 |
d. Wheelbase | mm | 2500 |
Maximum working height | m | 20.3 |
Maximum platform height | m | 18.6 |
Maximum working range | m | 11.9 |
Maximum load weight | kg | 230 |
No.1 arm luffing range | ° | 0 ~ +70 |
No.2 arm luffing range | ° | 0 ~ +75 |
Crank arm luffing range | ° | -65 ~ 70 |
The swing angle of the rotary table | ° | 360 |
Maximum tail wagging | mm | 0 |
Platform size | mm | 1830×760×1150 |
The swing angle of the platform | ° | 180 |
Machine weight | kg | 10600 |
Maximum travelling speed | km/h | 6.0 |
Minimum turning radius | m | 6.0 |
Minimum ground clearance | mm | 230 |
Maximum gradeability | % | 45 |
Tyre size | 355/55D625 | |
Motor model | Perkins 404D-22 | |
Rated power of motor | kW/(r/min) | 38KW/3000rpm, |
