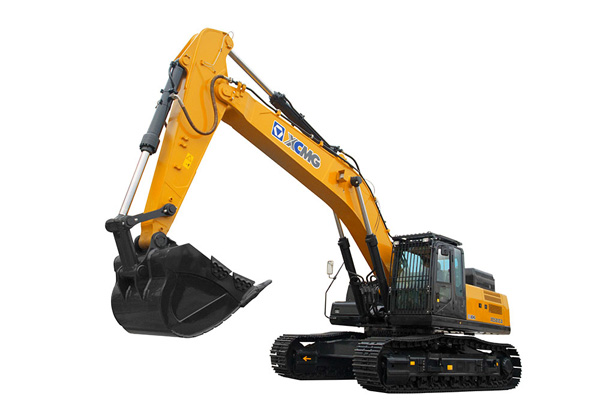

XCMG CRAWLER EXCAVATOR
XCMG Excavators’ are minimum swing radius excavators excel at digging and lifting in the tightest work areas, providing faster cycle times and high performance. Built to be your trusted excavating partner and your edge in the industry.
 |  |  |  |
Model | Engine Model | Rated Power (kW/rpm) | Backet Capacity(m³) | Operating Weight(kg) |
Yanmar | 16.5/2200 | 0.044 | 1640 | |
Yanmar | 27.6/2200 | 0.14 | 4050 | |
Kubota | 35/2200 | 0.21 | 5750 | |
Yanmar | 39.8/2200 | 0.23 | 5960 | |
Isuzu | 53.8/2150 | 0.3 | 7460 | |
Isuzu | 53.8/2150 | 0.34 | 7700/8100 | |
Isuzu | 72.7/2200 | 0.4-0.52 | 13000 | |
Cummins | 85.4/2200 | 0.52-0.61 | 14400 | |
Isuzu | 106.5/1950 | 0.83 | 20600 | |
Isuzu | 128.5/2100 | 0.9～1.0 | 21750 | |
Isuzu | 106.5/1950 | 0.4 | 22350 | |
QSB7 | 135/2050 | 0.8～1.3 | 21900 | |
Isuzu | 128.5/2100 | 1.05 | 22300 | |
Isuzu | 128.5/2100 | 0.9-1.1 | 23500 | |
Isuzu | 135.5/2150 | 1.05-1.25 | 25500 | |
QSB7 | 150/2050 | 1.1~1.4 | 26400 | |
QSB7 | 169/2050 | 1.2-1.6 | 30800 | |
Isuzu | 190.5/2000 | 1.4-1.6 | 33800 | |
Isuzu | 190.5/2000 | 1.4-1.8 | 36600 | |
Cummins | 250/2000 | 2.1 - 2.5 | 46100 | |
Cummins | 250/2000 | 2.2-2.6 | 47900 | |
Cummins | 336/1800 | 2.8-3.5 | 68000 | |
Cummins | 395/1800 | 3.5-4.5 | 88000 | |
Cummins | 567/1800 | 5 | 125000 | |
QSB7 | 42.4/2400 | 0.23 | 5930 | |
Cummins | 104/2000 | 0.58 | 15318 |
