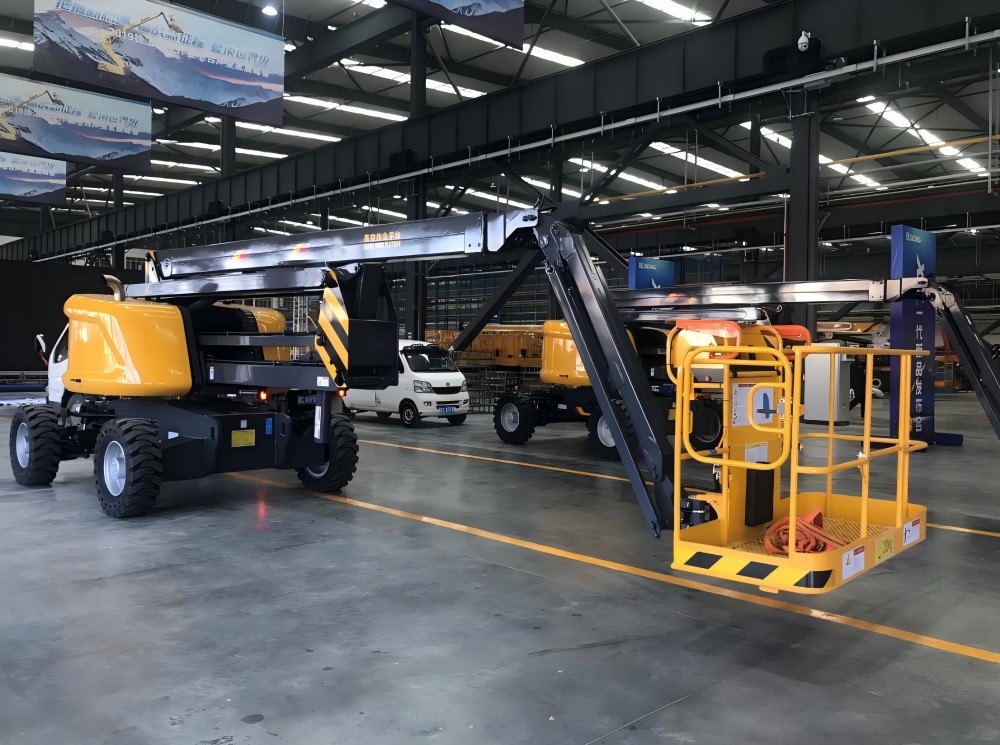

Home > Special purposs vehicleAerial Work PlatformXCMG GTBZ14J Aerial Work Platform
Item | Unit | Parameters |
a Overall Length | mm | 6690 |
b Overall Width | mm | 2260 |
c Overall Height | mm | 2130 |
d Wheel Base | mm | 2100 |
Maximum Working Height | m | 15.75 |
Maximum Platform Height | m | 14.05 |
Maximum Working Range | m | 8.22 |
Maximum Load Capacity | kg | 230 |
1stBoom luffing Range | ° | 0～+60 |
2ndBoom luffing Range | ° | -8～+75 |
Crank Arm Luffing Range | ° | -60～+80 |
Rotation Angle of Rotating Platform | ° | 355 |
Maximum Tail Wagging | mm | 0 |
Platform Size | mm | 1830×760×1150 |
Platform turning angle | ° | 180 |
Total Weight | kg | 6900 |
Maximum Travel Speed | km/h | 6.1 |
Minimum Turning Radius | m | 4.5 |
Minimum Ground Clearance | mm | 250 |
Maximum Grade Ability | % | 45 |
Tire Specification | - | 315/55D20 |
Engine Model | - | Perkins |
404D-22 | ||
Rated Power of Engine | kW/(r/min) | 38/（3000） |
