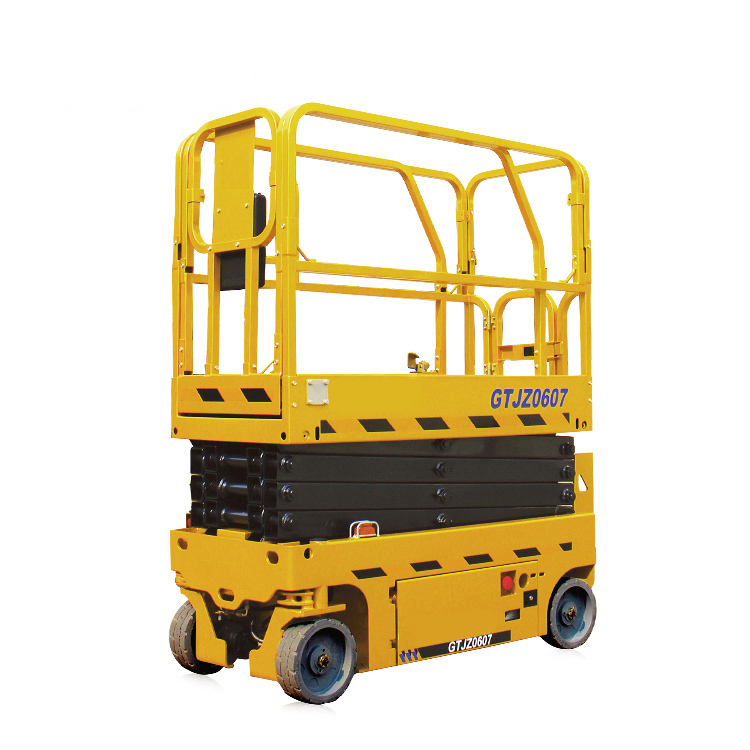

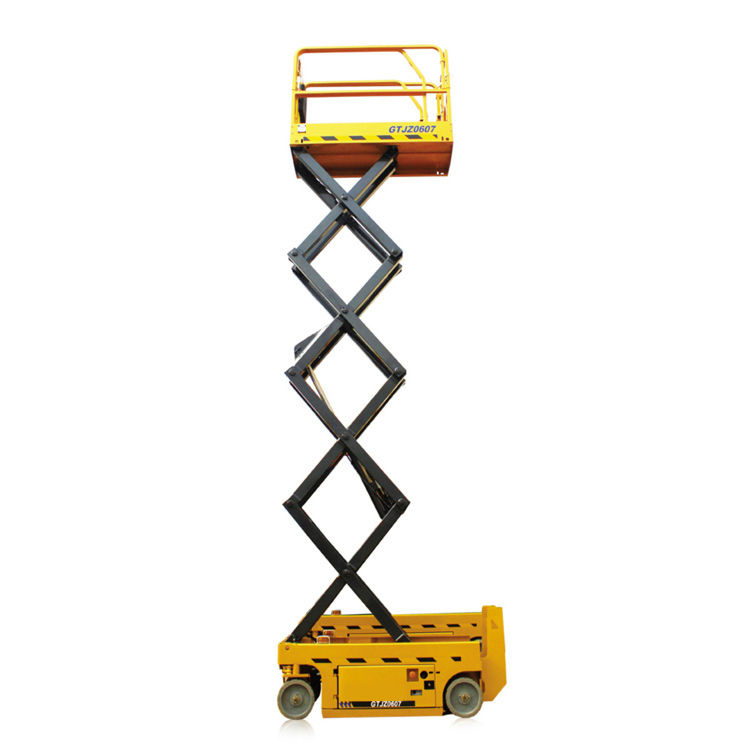

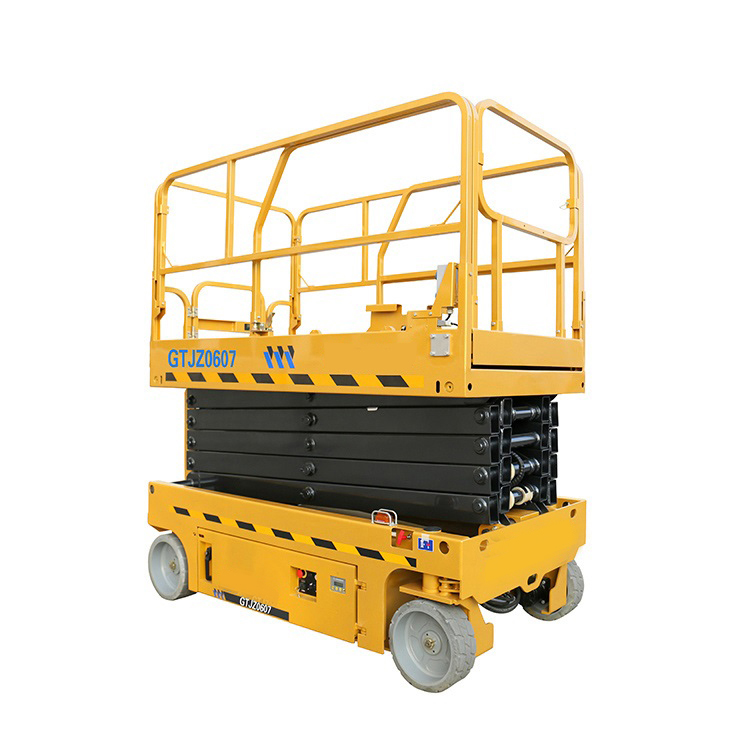

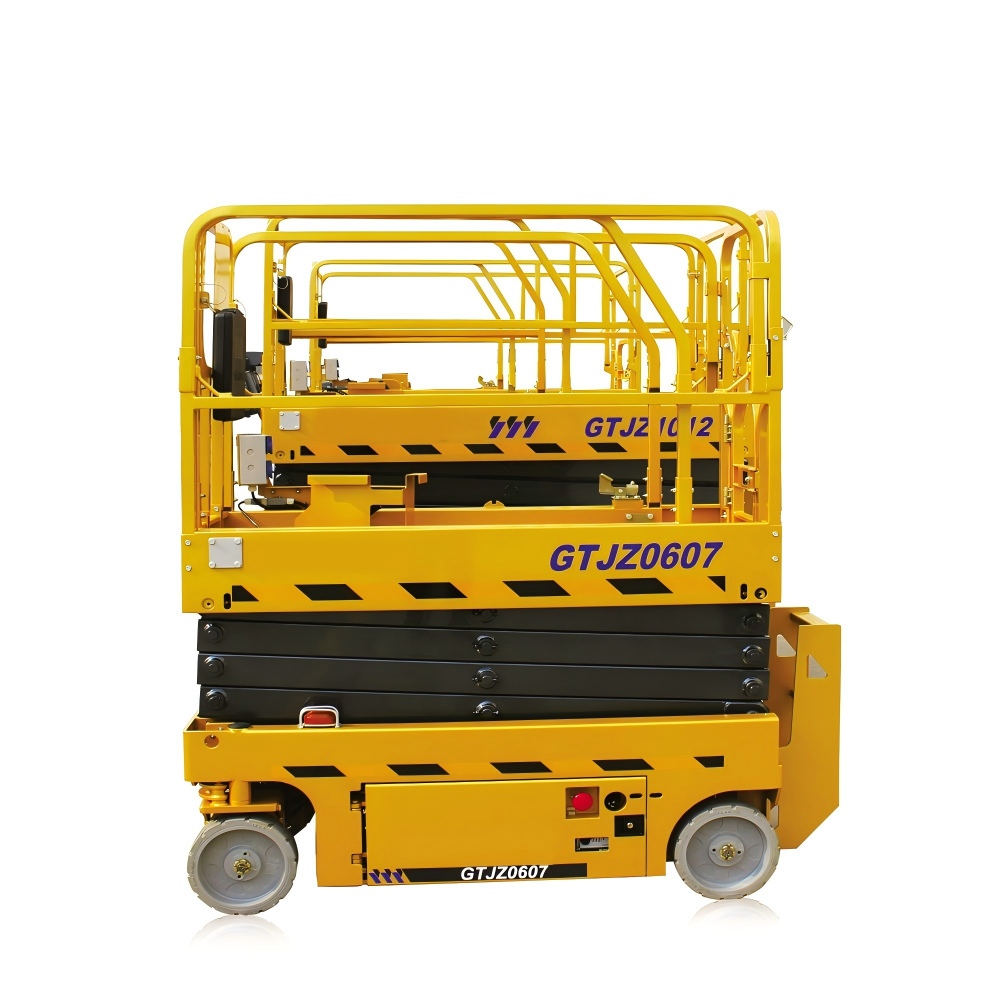

The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
Item | Unit | Parameters |
a Overall Length | mm | 1882 |
b Overall Width | mm | 760 |
c Overall Height (Guardrail folding) | mm | 1771 |
d Wheel Base | mm | 1360 |
Maximum Working Height | m | 7.8 |
Maximum Platform Height | m | 5.8 |
Maximum Load Capacity | kg | 230 |
Extension Platform Load | kg | 115 |
Platform Size | mm | 1655×740×1185 |
PlatformExtension Length | mm | 900 |
Lifting Speed of Working Platform | s | 16-24 |
Falling Speed of Working Platform | s | 20-28 |
Total Weight | kg | 1490 |
Travel Speed (High Speed) | km/h | 4.0 |
Travel Speed (low Speed) | km/h | 0.8 |
Minimum Turning Radius | m | 0 |
Minimum Ground Clearance (Pot Hole Protector Rises/Falls) | mm | 60/20 |
Maximum Grade Ability | % | 25 |
Tire Specification | _ | Traceless solid 30.5cm×10.0cm |
Battery | V/(Ah) | 4×6(225) |
Charger | A | 30 |
Warning Angle of Inclination | ° | 1.5 (Both sides) |
° | 3(Front or Rear) |
