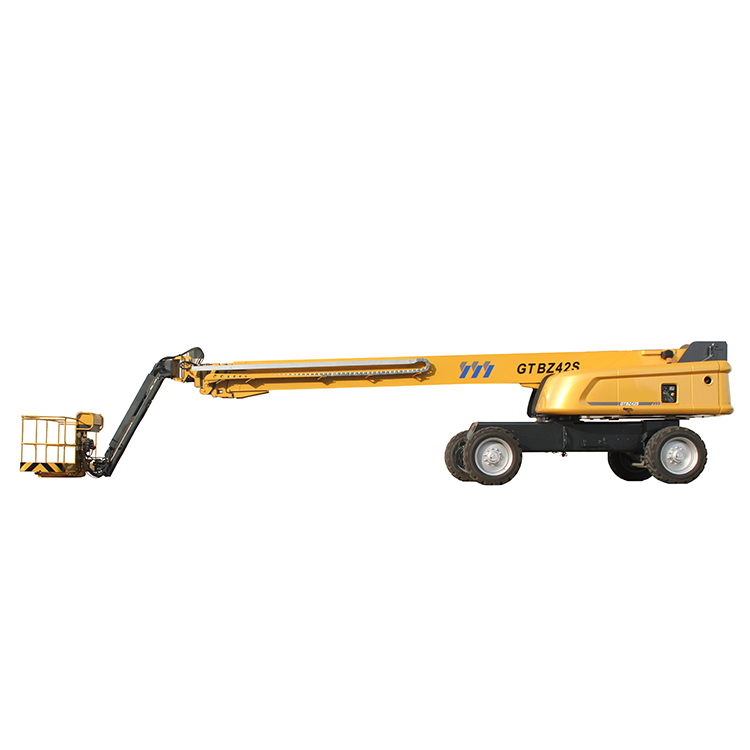

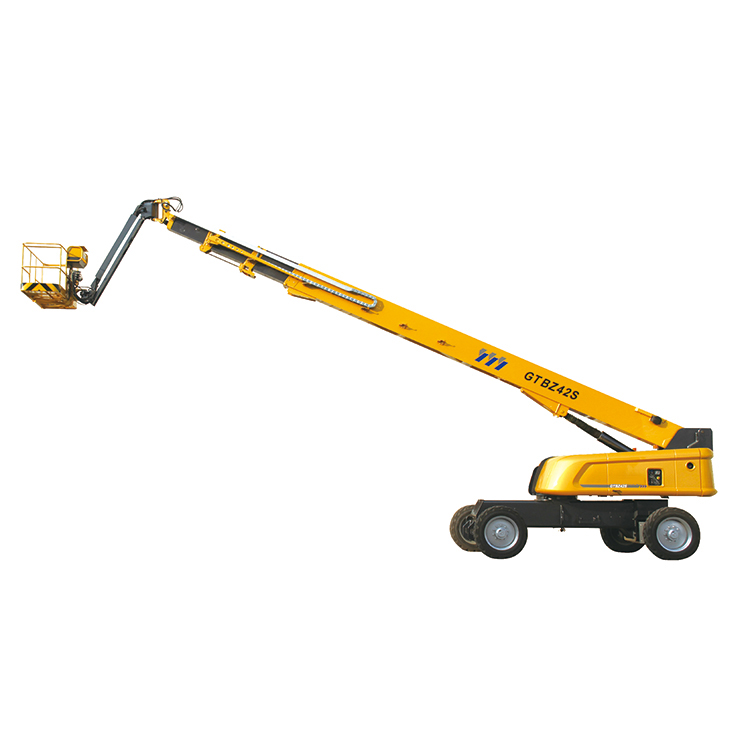

Home > Special purposs vehicleAerial Work PlatformXCMG GTBZ42S Aerial Work Platform
Item | Unit | Parameter |
a Overall Length | mm | 14950(12000) |
b Overall Width | mm | 2490/3800 |
c Overall Height | mm | 3050 |
d Wheel Base | mm | 3800 |
Maximum Working Height | m | 43.6 |
Maximum Platform Height | m | 41.6 |
Maximum Working Range | m | 25 |
Maximum Load Capacity | kg | 450(230) |
Boom Luffing Range | ° | -1~+75 |
Crank Arm Luffing Range | ° | -60~+70 |
Rotation Angle of Rotating Platform | ° | 360 |
Maximum Tail Wagging | mm | 2390/1725 |
Platform Size | mm | 2400*900 |
Rotation Angle of Platform | ° | 180 |
Total Weight | kg | 21900 |
Maximum Travel Speed | km/h | 5 |
Minimum Turning Radius | m | 10.8/6.8(Two—turn)5.8/6.8(Four—turn) |
Minimum Ground Clearance | mm | 320 |
Maximum Grade Ability | % | 40 |
Tire Specification | - | 445/50D710 |
Engine Model | - | Perkins 1104D-44T |
Rated Power of Engine | kW/(r/min) | 55.5/(2400) |
