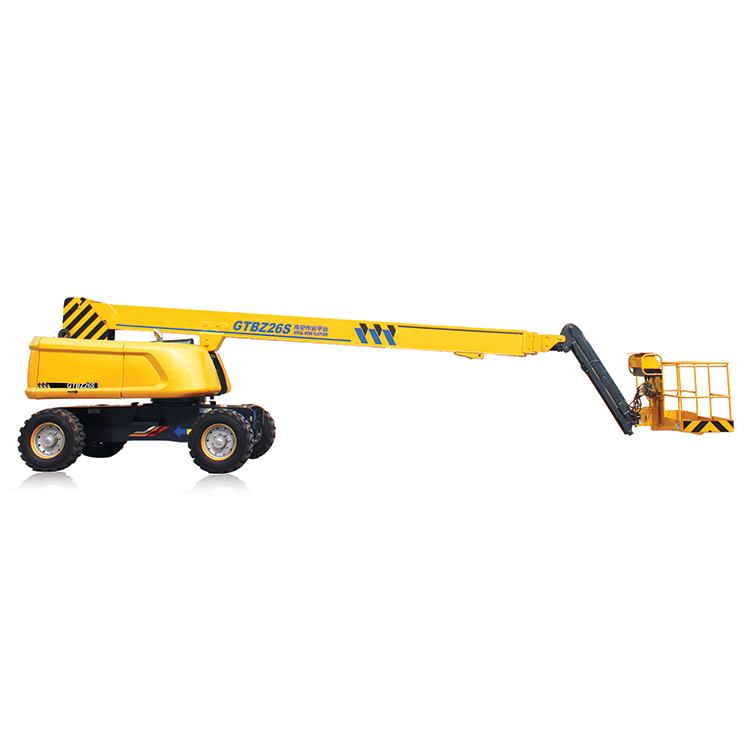

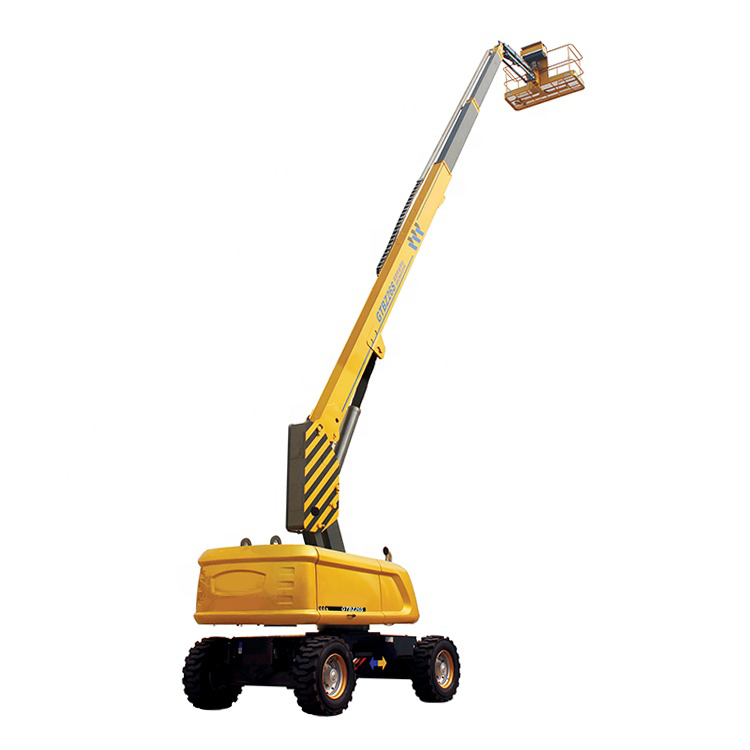

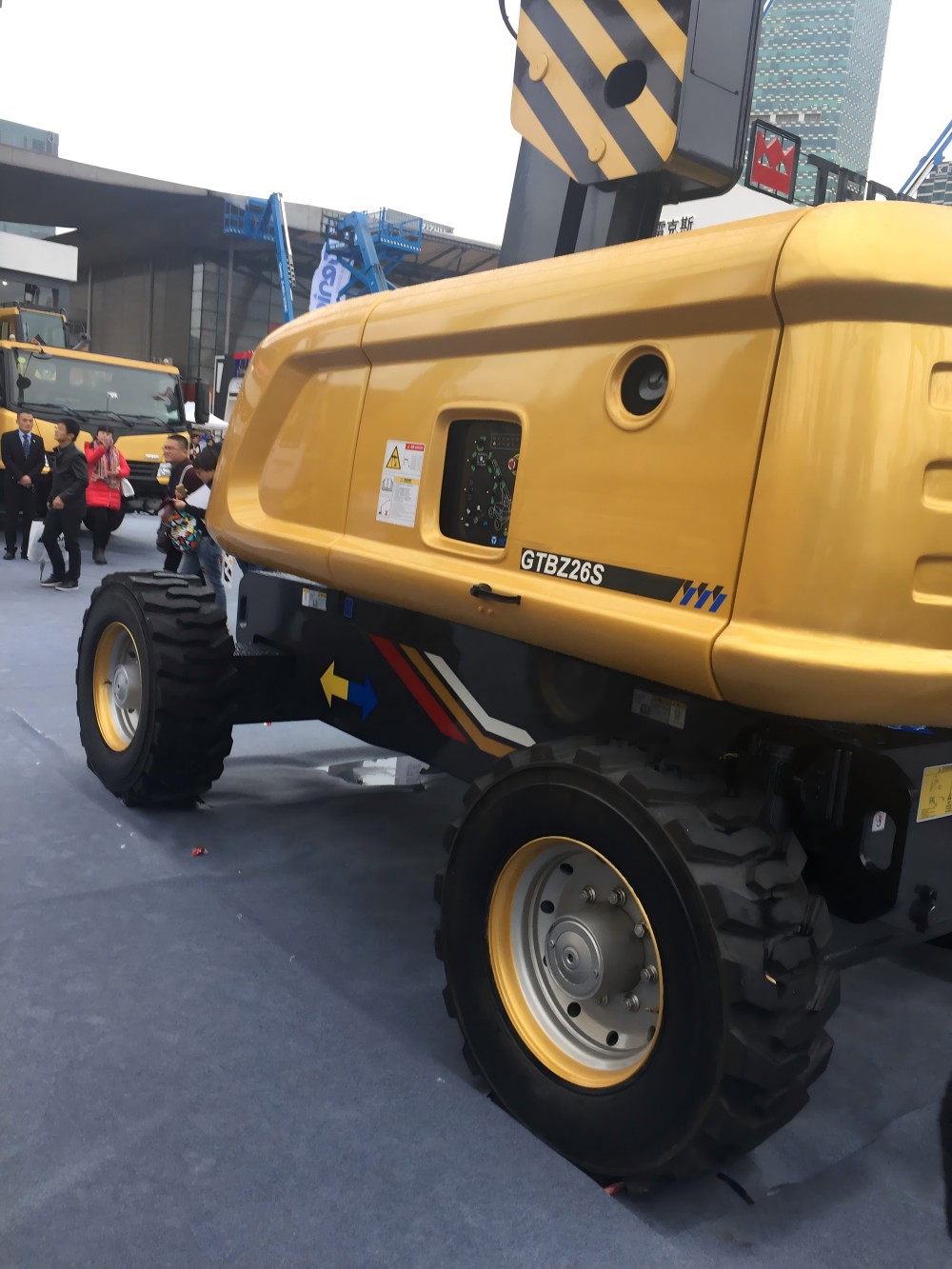

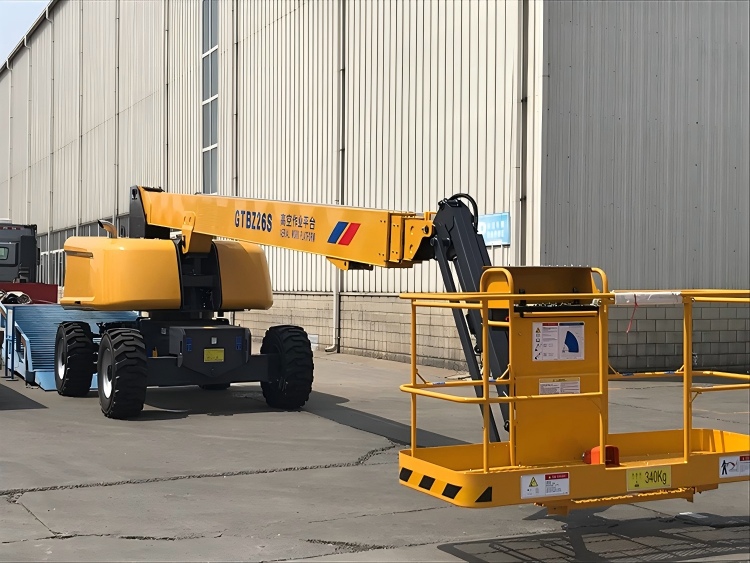

XCMG GTBZ26S Aerial Work Platform


Similar Product





<<  BACK TO LIST

The straight boom aerial work platform at the elevation of 26 meters developed by XCMG is self-equipped with a small-sized fly jib, thus having a certain capacity in obstacle crossing, and being stretchable to any inaccessible position; the double-load control system may automatically adjust the operating radius as the loads may be, which will satisfy the different demands of the users on different loads. It is an ideal choice for users engaged in building construction, bridges, steel structures and installation & construction both inside and outside the venue.

Product Highlights:
1.Ability in Fast Access to the Construction Area

The boom driven by a single cylinder and the synchronously amplitude-varying and lifted stand column enhance the operating speed, and realize the fast access to the construction area, which will improve the construction efficiency.

2.Better Adaptability to Poor Construction Enviroment
The application of a lubrication-free shaft sleeve and slider relieves the friction between each hinge point for connection and inter-arm slider, thus resulting in better adaptability to welding and dusty enviromeent.

3.Advanced power system integration control
Electronic-controlled engine is adopted as the dynamical system, oil pressure, water temperature, rotating speed, sensor etc. are integrated by engine and controlled through ECU, which is safe and reliable. Meanwhile, there is a fault diagnosis interface as supporting for convenient of fault diagnosis and maintenance.



Item

Unit

Parameter

a Overall Length

mm

12100

b Overall Width

mm

2490

c Overall Height

mm

3050

d Wheel Base

mm

3000

Maximum Working Height

m

27.9

Maximum Platform Height

m

26.2

Maximum Working Range

m

23.2

Maximum Load Capacity

kg

340

Boom Luffing Range

 °

-5~+75

Crank Arm Luffing Range

 °

-65~+70

Rotation Angle of Rotating Platform

°

360

Maximum Tail Wagging

mm

1400

Platform Size

mm

2.4×0.9/1.8×0.8

Rotation Angle of Platform

 °

180

Total Weight

kg

16600

Maximum Travel Speed

km/h

6.1

Minimum Turning Radius

m

6.7

Minimum Ground Clearance

mm

320

Maximum Grade Ability

%

45

Tire Specification

-

385/65-22.5

Engine Model

-

Foton CumminsQSF2.8-71HP

Rated Power of Engine

kW/(r/min)

53/(2200)
