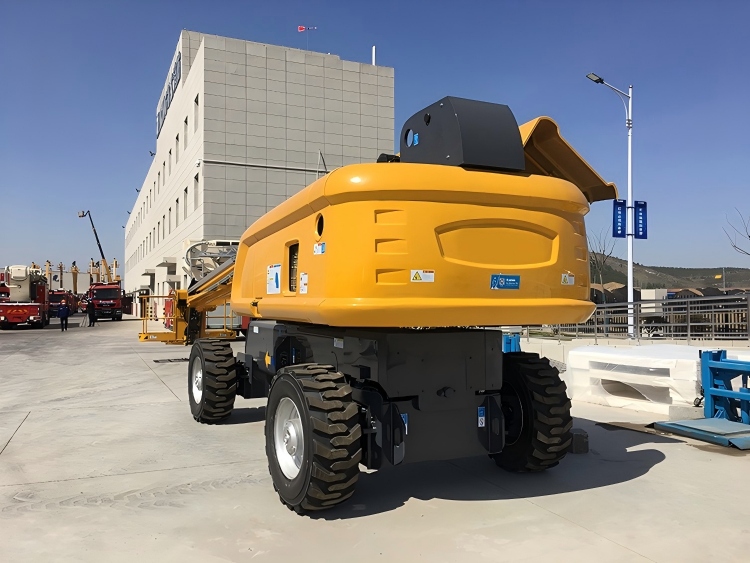

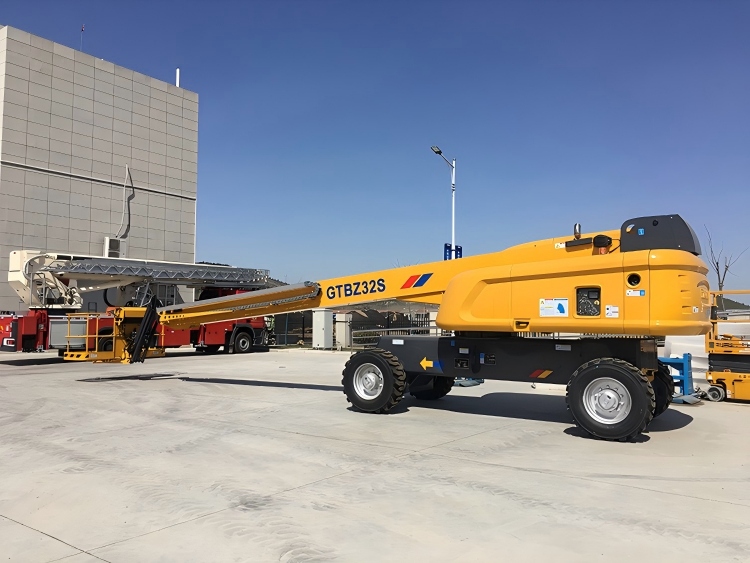

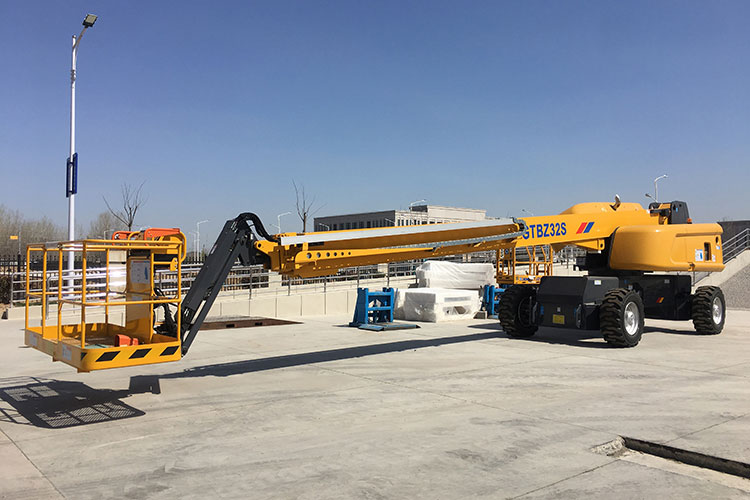

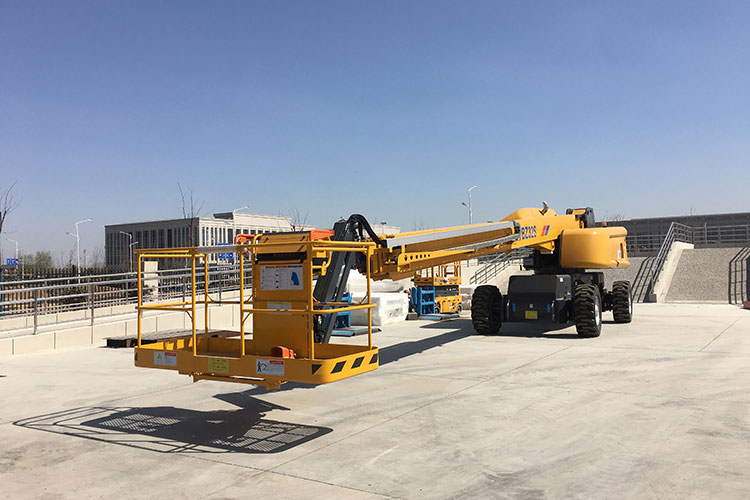

Home > Special purposs vehicleAerial Work PlatformXCMG GTBZ32S Aerial Work Platform
Project | Unit | Parameters |
a Full length of machine | mm | 14300 |
c Full height of machine | mm | 3070 |
d Wheelbase | mm | 3800 |
Maximum operation height | m | 33.9 |
Maximum platform height | m | 32.2 |
Maximum operation margin | m | 24.6 |
Maximum bearing weight | kg | 230 (unlimited) / 340 (limited) |
Boom variable amplitude range | ° | -6~+75 |
Rotary table rotation angle | ° | 360° |
Maximum tail pendulum (shaft retraction / shaft extension) | mm | 2085/1430 |
Platform size | mm | 2400×900 |
Platform rotation angle | ° | 180 |
Total weight | kg | 18400 |
Maximum driving speed | km/h | 5 |
Minimum turning radius | m | 8.2 / 10.8 (two turns) |
(shaft retraction / shaft extension) | 5.8 / 6.8 (four turns) | |
Minimum ground clearance | mm | 260 |
Maximum climbing ability | % | 45 |
Tire specification | - | 385/65D22.5 |
Engine model | - | Perkins 1104D-44T |
Engine rated power | kW/(r/min) | 55.5/2400 |
