Home > Hoisting machinerySide lifterXCMG MQH37A Side Lifter

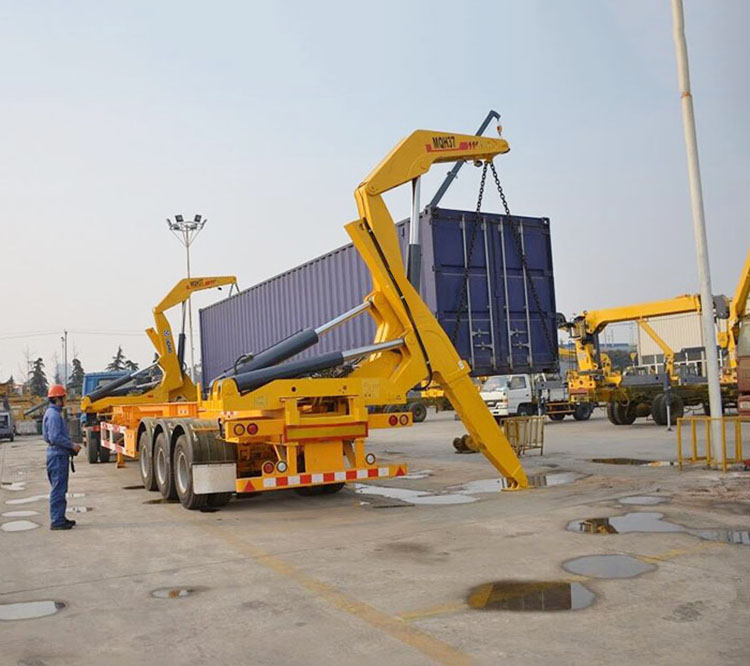

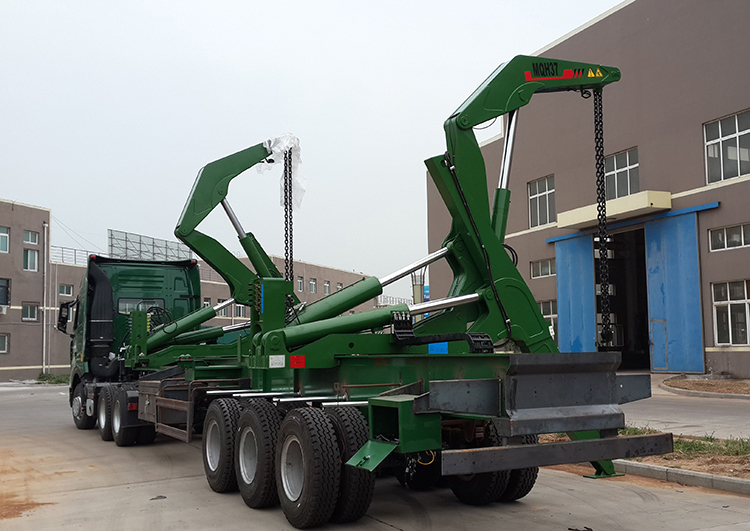

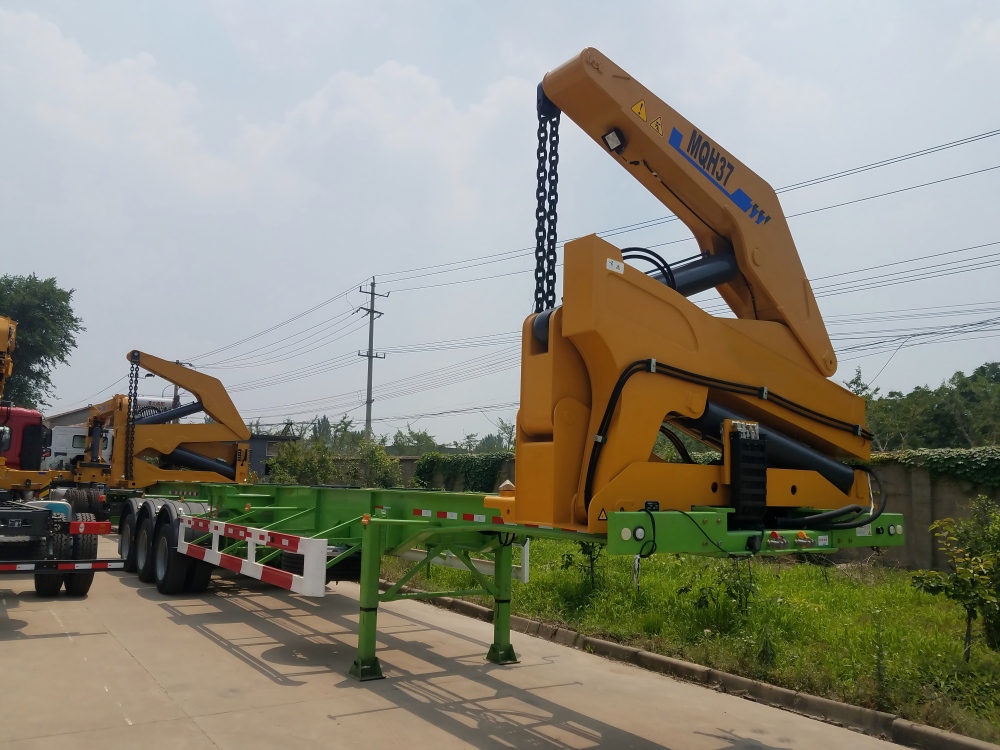

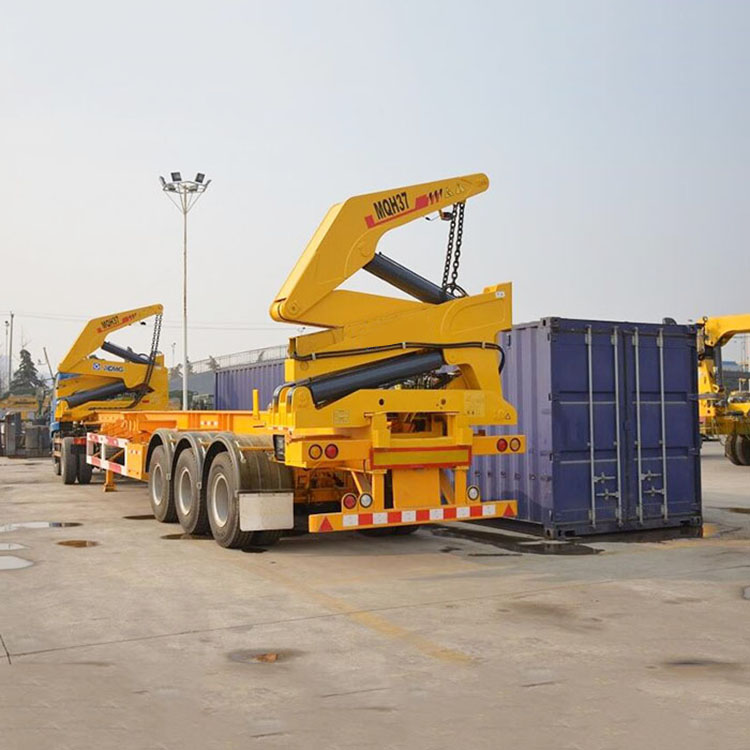

XCMG side loader MQH37A have several advanced core technologies and a number of patents,itcan transfer containers to other trailers, trucks, or onto the ground. Its characters includingbiglifting capacity, large working range, wide applicationrange, good versatility and strong guarantee ability, meet the demands of lifting containeranywhere. It iswidely used for shipping, port, railway, storage and custom etc.Its characteristics of "rapid, vivid, efficiency, convenience" get more and more understanding and approbations.
Advantages and highlights:
* Power take off(PTO) or Diesel APU.
* Sideloader can slide to fit 20ft-40ft Containers.
* Wireless remote contrcl/Manual operating.
* Engine throttle size and engine speed can be control, improving working efficiency.
* The front and rear crane can work together and Separate, adjusting container conveniently.
* Safety control with stop button.
* Elegant appearance,Reliable performance.
* Convenient operation,Facilitate manufanture and maintenance.
Product Paramenters
Item | Units | Specification | ||
Specification | Max lifting capacity | kg | 37000 | |
Max stabilizer outreach | mm | 3200 | ||
Max working range | mm | 4000 | ||
Overall height | mm | 2490 | ||
Over width | mm | 2500 | ||
Over length | mm | 1020 | ||
Max pressure of hydraulic system | Mpa | 28 | ||
Tare weight | kg | 7000 | ||
Power system specification | Motor manufacturer | Kubota | ||
Engine Model | V2403-M-DI-E3B-CSL-1 | |||
Total displacement | L | 2.434 | ||
Brake Horse Power | kW/rpm | 36.5/2600 | ||
Max Torque/Speed | N•m/rpm | 158.6N•m/1600 | ||
Min Idling Speed | rpm | 1050~1150 | ||
Max Idling Speed | rpm | 2820 | ||
Dry Weight | kg | 185 | ||
Power Voltage | V | 12 | ||
Emission Regulation | EU Stage3 | |||
Main technical parameters of semi-trailer | Type / | Frame | ||
Outline dimension | mm | 14100*2480*（≤1510） | ||
Maximum gross mass | kg | 52000 | ||
Curb mass | kg | 7200 | ||
Payload mass | kg | 44800 | ||
Quantity of wheel | / | 3 | ||
Spread of axles | mm | 8000+1350+1350 | ||
Tare weight | kg | 7000 | ||
Axle load | kg | - / 24000 | ||
Maximum Kingpin Mass | kg | 16000 | ||
ABS | YES | |||
Front/Rear overhang | mm | -/2370 | ||
