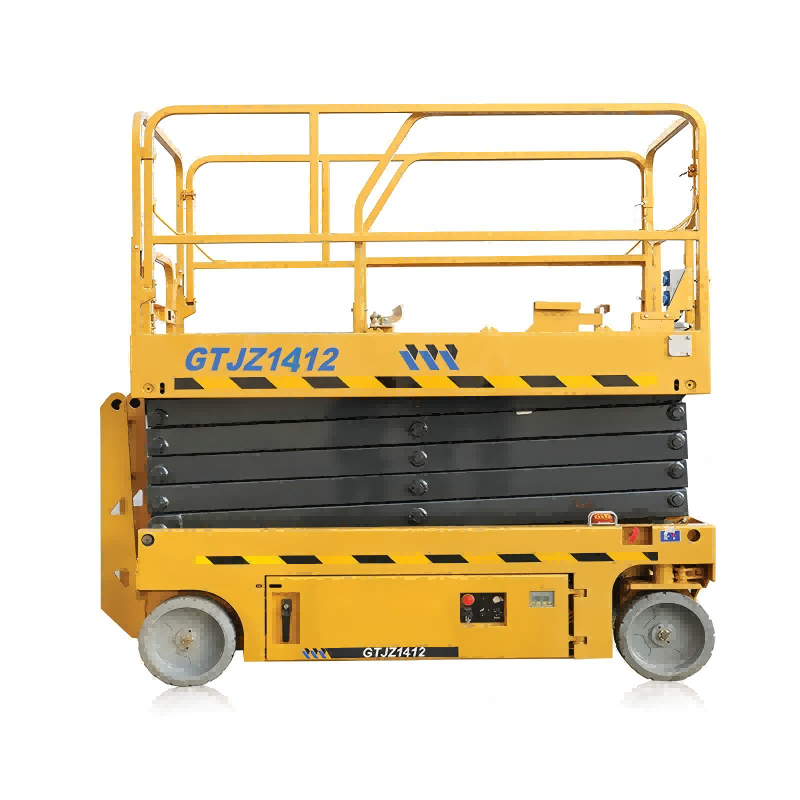

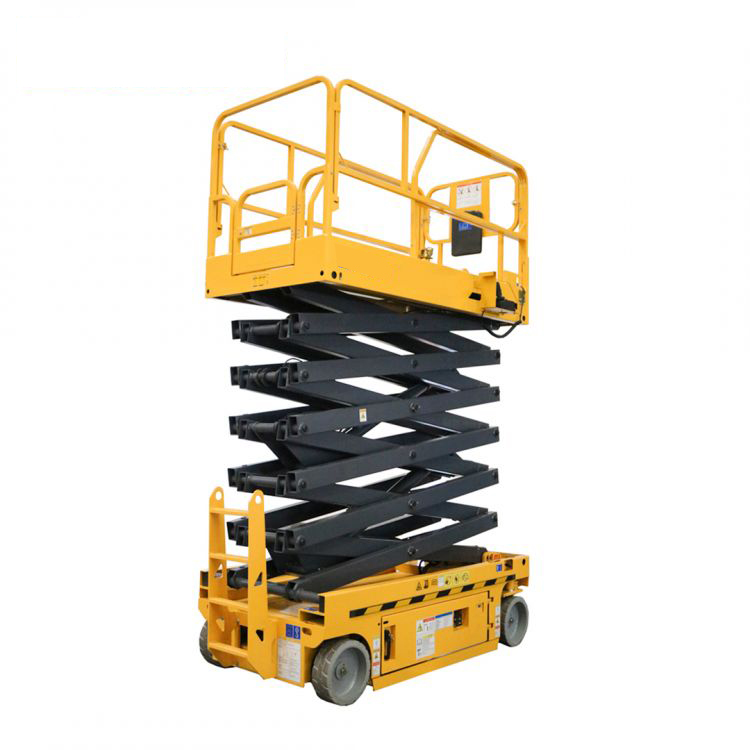

Home > Special purposs vehicleAerial Work PlatformXCMG GTJZ1412 Scissor Lift
Convenient transportation and stable operation
The telescoping sub-platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.
Environmental construction and convenient service
Pure electric drive, zero release,low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
General and modular design
The modular design for the machine guarantees the universality of parts,makes the customers' repairs and maintenances easier, and achieves more competitive cost.
Item | Unit | Parameter | ||
Dimension parameters | Dimension of machine | Length | mm | 2850 |
Width | mm | 1250 | ||
Height | mm | 2600 | ||
Wheelbase | mm | 2240 | ||
Wheel track | mm | 1123 | ||
Running parameters | Maximum running speed at low altitude | km/h | ≤3.2 | |
Maximum running speed at high altitude | km/h | ≤0.8 | ||
Minimum turning radius | Inside | m | 0 | |
Outside | m | ≤2.65 | ||
Minimum ground clearance | mm | 100/20 | ||
(retraction/supporting of pothole protector) | ||||
Maximum gradeability | ％ | ≥25 | ||
Mass parameters | Total mass of machine | kg | 3380 | |
Front shaft | kg | 1670 | ||
Rear shaft | kg | 1710 | ||
Battery | Model | T1275 | ||
Specification/capacity | V/Ah | 4×12/300 | ||
Manufacturer | Trojan | |||
Tire | Specification | Markless solid rubber tire | ||
Size | mm×mm | 381×127 | ||
Dimension of working platform | Length | mm | 2636 | |
Width | mm | 1120 | ||
Height | mm | 1254 | ||
Centroid position of machine | Horizontal distance to front shaft | mm | 1127 | |
Height of centroid | mm | 720 | ||
Tilt warning angle | Front/rear | ° | 3 | |
Left/right | ° | 1.5 | ||
Rated load of working platform | kg | 230 | ||
Maximum working height | m | ≥15.7 | ||
Maximum height of working platform | m | ≥13.7 | ||
Extension length of extension platform | m | 0.9 | ||
Rated load of extension platform | kg | 115 | ||
Minimum height of working platform | m | ≤1.47 | ||
Lifting speed of working platform | m/s | 0.15 - 0.17 | ||
Lowering speed of working platform | m/s | 0.17 - 0. | ||
