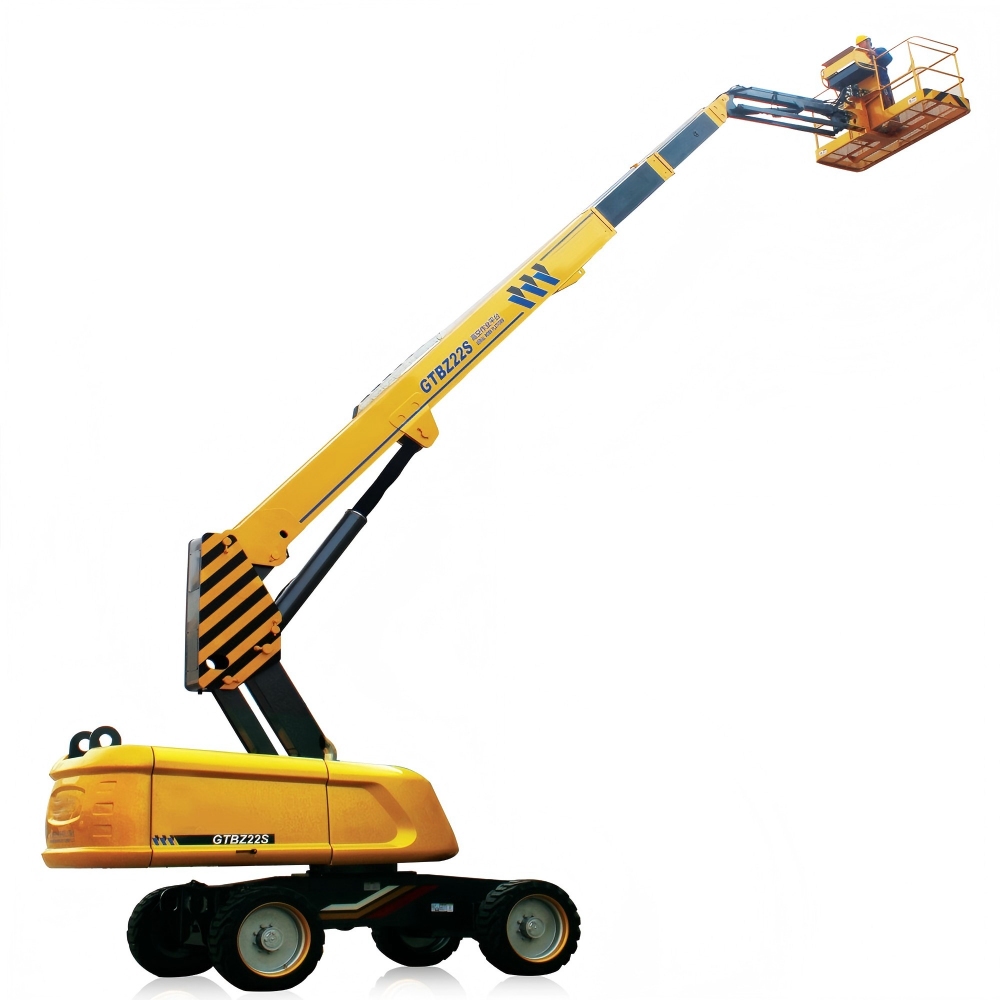

GTBZ22S is the highest-efficiency straight boom aerial work platform applied at the elevation of 22 meters. Being four-wheeldriven, it has the top-ranking gradeability among the industry; provided with the double-operating-radius curve, the machine has the industry-leading operating altitude/radius and carrying capacity. This type of machine, not only simple and high-efficiency, but also safe and reliable, may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.
Item | Unit | Parameter |
a Overall Length | mm | 10150 |
b Overall Width | mm | 2490 |
c Overall Height | mm | 2800 |
d Wheel Base | mm | 2500 |
Maximum Working Height | m | 23.7 |
Maximum Platform Height | m | 22 |
Maximum Working Range | m | 18.3 |
Maximum Load Capacity | kg | 340 |
Boom Luffing Range | ° | -5～+75 |
Rotation Angle of Rotating Platform | ° | 360 |
Maximum Tail Wagging | mm | 1550 |
Platform Size | mm | 2400×900 |
Rotation Angle of Platform | ° | 180 |
Total Weight | kg | 12500 |
Maximum Travel Speed | km/h | 6 |
Minimum Turning Radius | m | 6 |
Minimum Ground Clearance | mm | 230 |
Maximum Grade Ability | % | 45 |
Tire Specification | - | 355/55D625 |
Engine Model | - | Perkins 404D-22T/Deutz D2011 L04i |
Rated Power of Engine | kW/(r/min) | 43/(2600) |
41/(2300) |
