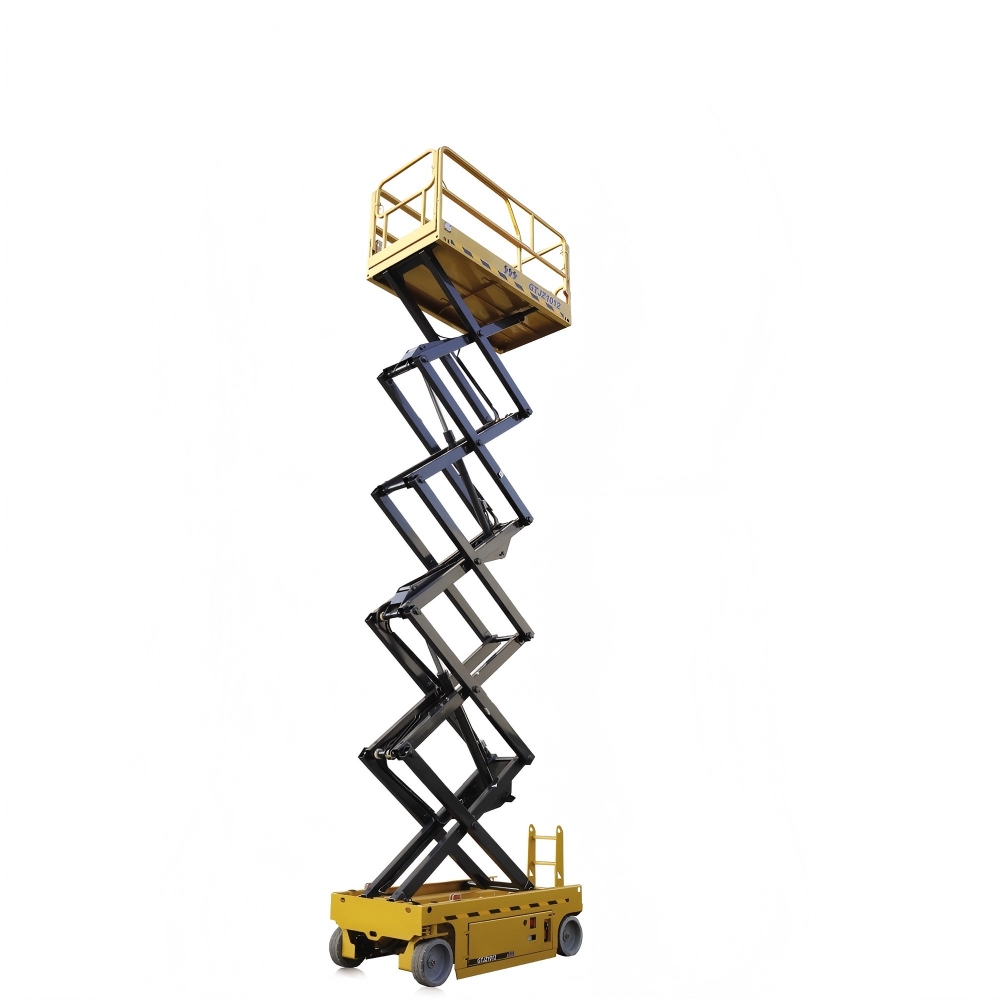

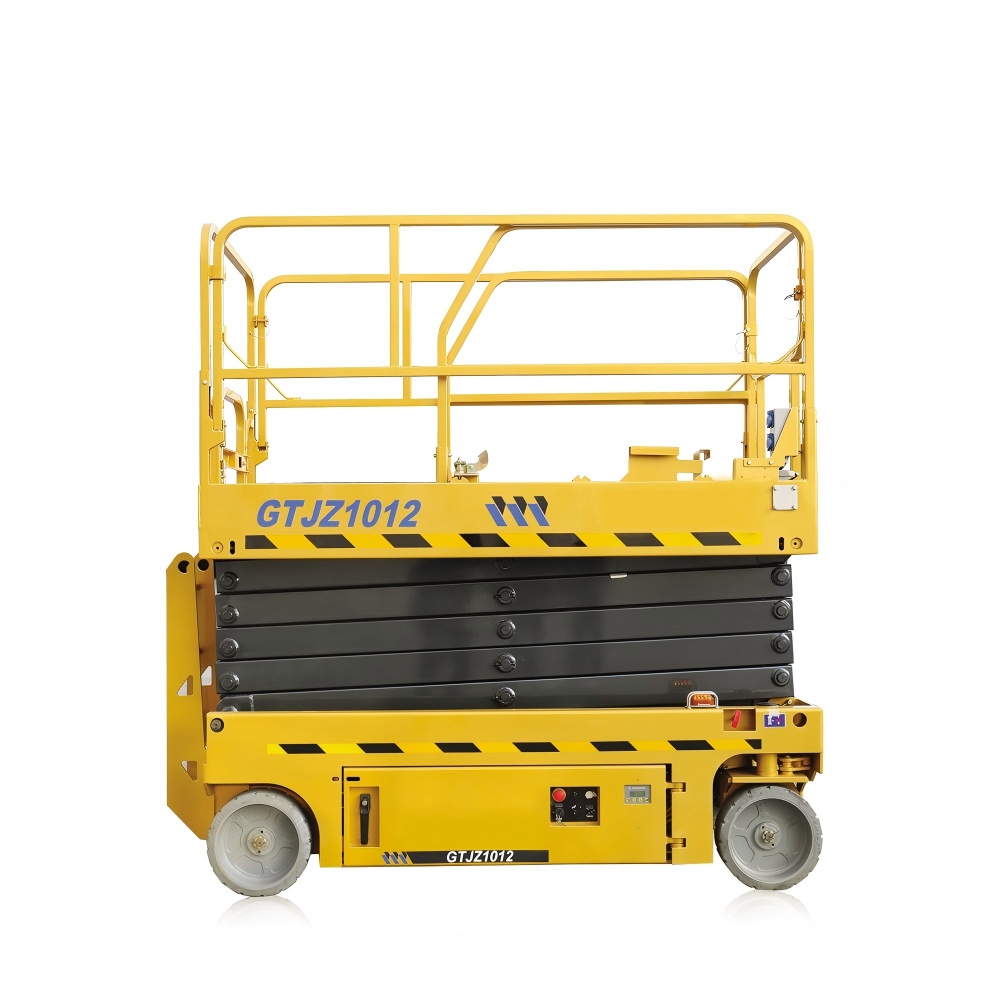

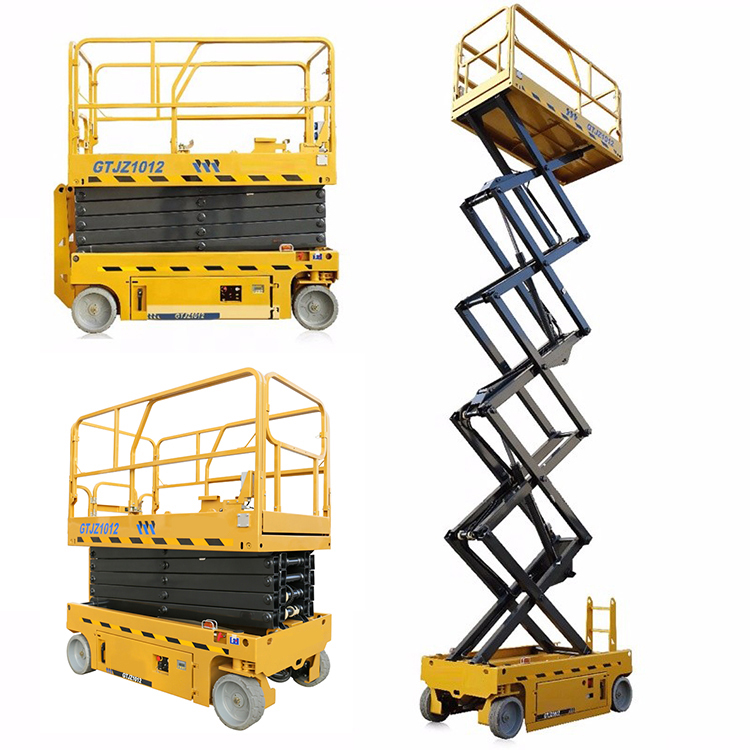

Home > Special purposs vehicleAerial Work PlatformXCMG GTJZ1012 Scissor Lift
The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
Item | Unit | Parameters |
Overall length | mm | 2485 |
Overall width | mm | 1170 |
Overall height | mm | 2472 |
Maximum platform height | m | 10 |
Size of platform | mm | 2276×1120×1254 |
Platform extension length | mm | 900 |
Minimum turning radius | m | 0 |
Wheel base | mm | 1871 |
Minimum ground clearance | mm | 101/20 |
(pot hole protector rising/falling) | ||
The total mass in driving state | kg | 3000 |
Rated load | kg | 320 |
Load of extension platform | kg | 115 |
Lifting speed of working platform | s | 56~66 |
Falling speed of working platform | s | 43~58 |
Driving speed (high) | km/h | 3.5 |
Driving speed (low) | km/h | 0.8 |
Maximum driving platform height | m | 10 |
Maximum gradeability | 25% | |
Battery | V/(Ah) | 4×6(240) |
Charger | A | 30 |
Tyre specification | Traceless solid core 38.1cm×12.7cm | |
Incline alarming angle | 1.5° (both sides) | |
3° (front and back) |
