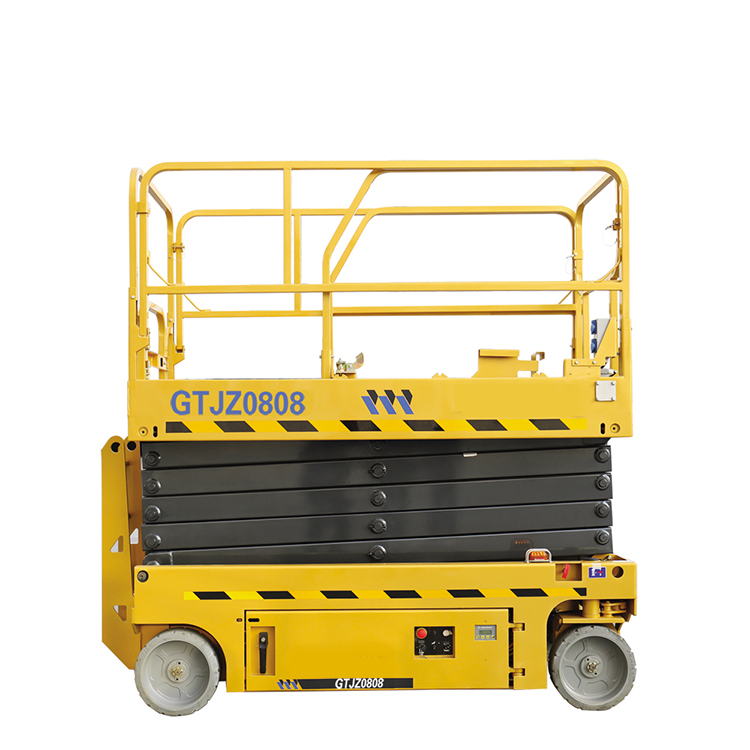

Home > Special purposs vehicleAerial Work Platform XCMG GTJZ0808 Scissor Lift
Items | Parameters | |||
Dimensional parameters | Overall dimensions | Length | mm | 2485 |
Width | mm | 810 | ||
Height (with platform folded) | mm | 2345 (1965) | ||
Wheel base | mm | 1871 | ||
Wheel track | mm | 683 | ||
Traveling parameters | Maximum traveling speed with platform not fully extended | km/h | ≤3.5 | |
Maximum traveling speed with platform fully extended | km/h | ≤0.8 | ||
Minimum turning radius | Outside | m | 0 | |
Inside | m | 2.3 | ||
Minimum ground clearance | mm | 100/20 | ||
(with pit protector withdrawn/extended) | ||||
Maximum gradeability | % | ≥25 | ||
Mass parameters | Total weight | kg | 2170 | |
Front axle | kg | 1070 | ||
Rear axle | kg | 1100 | ||
Batter | Model | T105 | ||
Specification/ capacity | V/Ah | 4×6/225 | ||
Manufacturer | Trojan | |||
Tire | Specification | Traceless solid rubber tire | ||
Dimensions | mm | 381×127 | ||
Dimensions of work platform | Length | mm | 2276 | |
Width | mm | 810 | ||
Height | mm | 1254 | ||
Position of mass center of complete platform | Horizontal distance to front axle | mm | 947 | |
Height of center of mass | mm | 435 | ||
Tilting warning angle | Lateral | ° | 3 | |
Transverse | ° | 1.5 | ||
Rated load of work platform | kg | 230 | ||
Maximum working height | m | ≥10 | ||
Maximum height of work platform | m | ≥8 | ||
Extension length of extended platform | m | 0.9 | ||
Rated load of extended platform | kg | 115 | ||
Minimum height of work platform | m | ≤1.2 | ||
Lifting speed of work platform | m/s | 0.2-0.24 | ||
Lowering speed of work platform | m/s | 0.17-0.2 |
