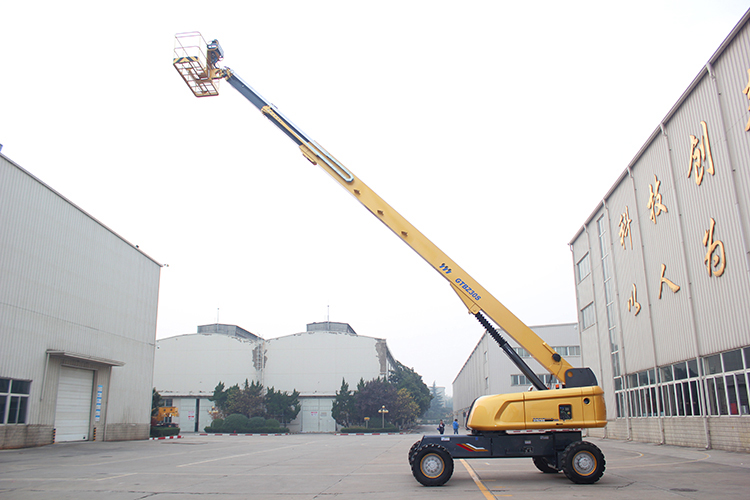

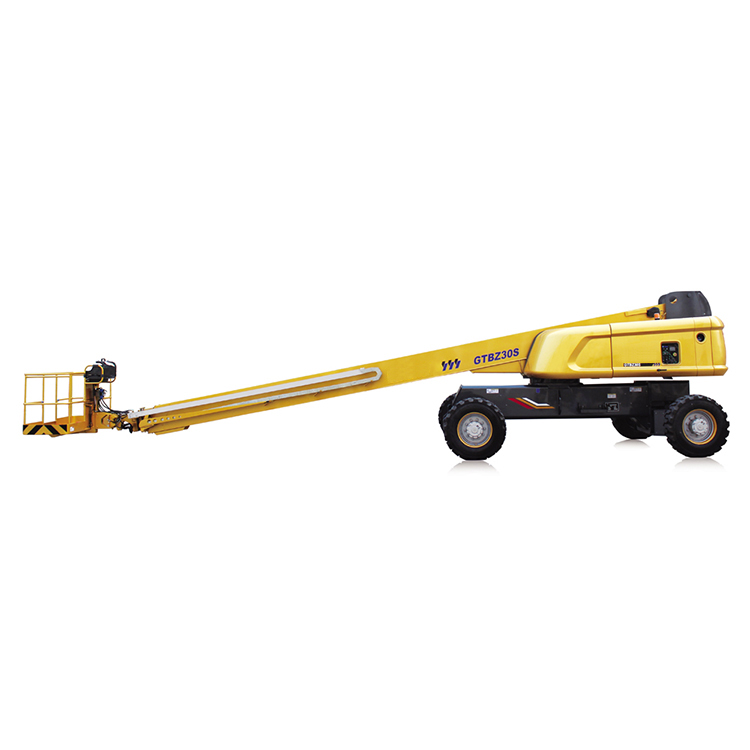

Home > Special purposs vehicleAerial Work PlatformXCMG GTBZ30S Aerial Work Platform
Item | Unit | Parameter |
a Overall Length | mm | 13380 |
b Overall Width (shaft retracts/stretches) | mm | 2490/3800 |
c Overall Height | mm | 3070 |
d Wheel Base | mm | 3800 |
Maximum Working Height | m | 32.2 |
Maximum Platform Height | m | 30.5 |
Maximum Working Range | m | 23.1 |
Maximum Load Capacity | kg | 480 |
Boom Luffing Range | ° | -11～+75 |
Rotation Angle of Rotating Platform | ° | 360° |
Maximum Tail Wagging(shaft retracts/stretches) | mm | 2085/1430 |
Platform Size | mm | 2400×900 |
Rotation Angle of Platform | ° | 180 |
Total Weight | kg | 18300 |
Maximum Travel Speed | km/h | 5 |
Minimum Turning Radius(shaft retracts/stretches) | m | 10.8/8.2(Two-turn) |
6.8/5.8(Four -turn) | ||
Minimum Ground Clearance | mm | 260 |
Maximum Grade Ability | % | 45 |
Tire Specification | - | 385/65D22.5 |
Engine Model | - | Perkins 1104D-44T |
Rated Power of Engine | kW/(r/min) | 55.5/2400 |
