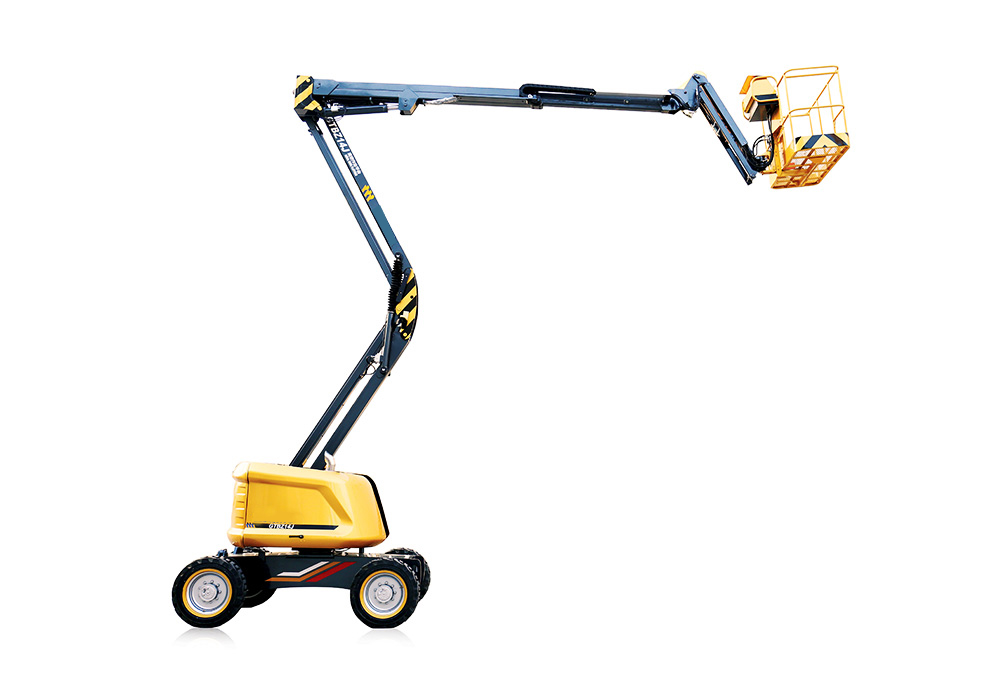

Items	Unit	Parameters
a. Overall length	mm	11280
b. Overall width	mm	2490
c. Overall height	mm	3000
d. Wheel base	mm	3000
Maximum working height	m	26.08
Maximum platform height	m	24.38
Maximum working amplitude	m	18.9
Maximum bearing capacity	kg	230
Luffing range of boom I	°	-1 to +70
Luffing range of boom II	°	-35 to +68
Slewing angle of slewing table	°	360°
Maximum tail wagging	mm	1330 (boom lifted)
Platform dimensions	mm	2400×900
Slewing angle of platform	°	180
Overall weight	kg	17800
Maximum traveling speed	km/h	5
Minimum turning radius	m	4.2m (four turns)/6.7m (two turns)
Minimum ground clearance	mm	260
Maximum gradeability	%	45
Tire specification	-	18-625
Rated engine power	kW/(r/min)	53/(2200)/55.4/(2600)
