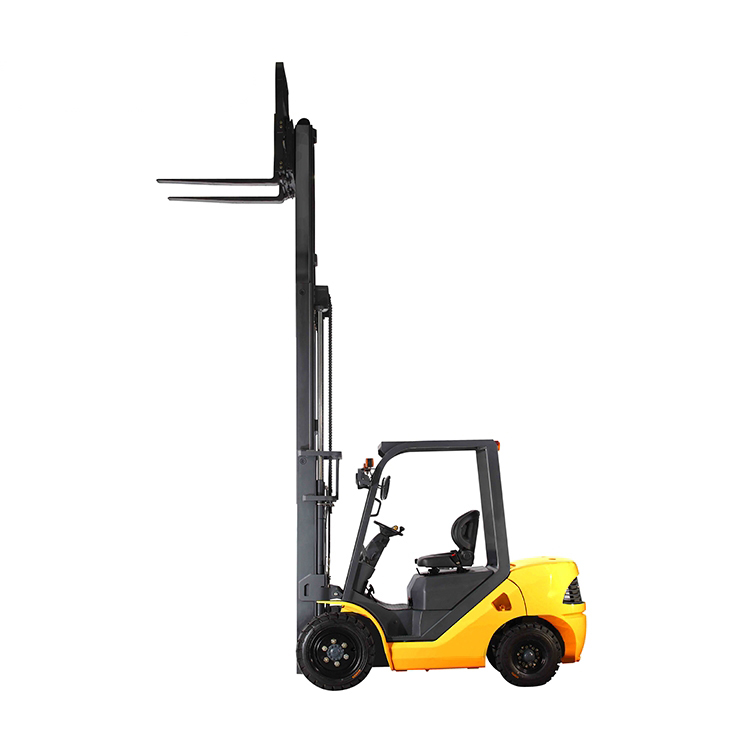

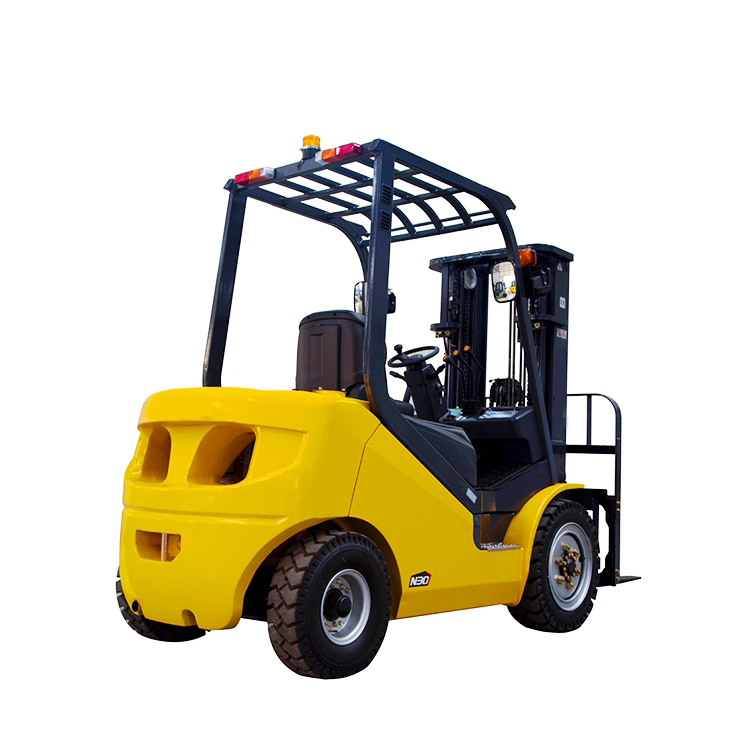

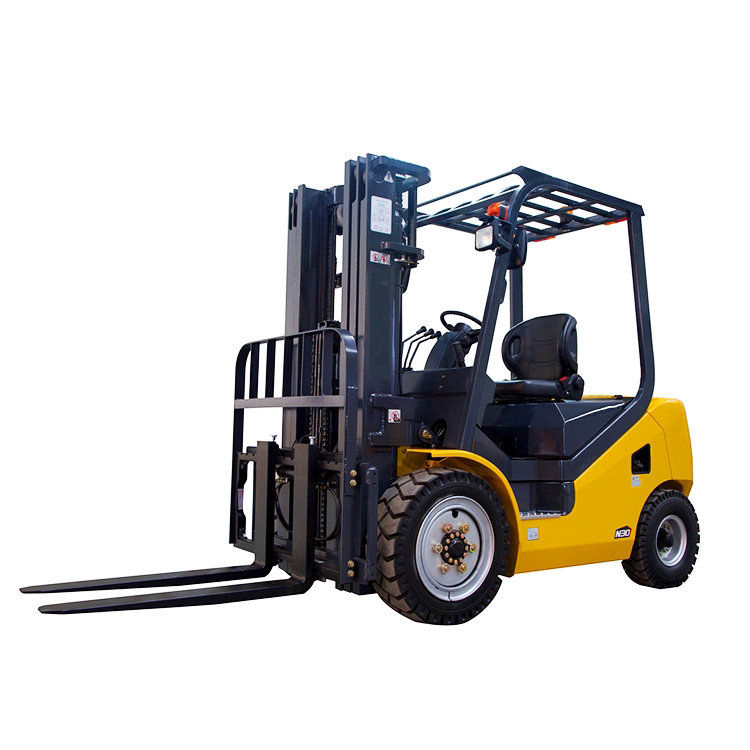

Home > Special purposs vehicleForkliftXCMG FD35T Forklift
Model | FD35T | |
Power Type | Diesel | |
Rated Load Capacity | Q(kg) | 3500 |
Load Centre | C(mm) | 500 |
Rated Lift Height | H3(mm) | 3000 |
Free Lift Height | H2(mm) | 100 |
Fork Size (L×W×T) | mm | 1070×125×50 |
Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° |
Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 484 |
Rear Overhang | X2(mm) | 635 |
Ground Clearance (Bottom of Mast) | H7(mm) | 145 |
Length to Face of Fork (Without Fork) | L1(mm) | 2813 |
Overall Width | B1(mm) | 1225 |
Mast Lowered Height | H1(mm) | 2070 |
Mast Extended Height (With Backrest) | H4(mm) | 4070 |
Overhead Guard Height | H5(mm) | 2235 |
Tyre (Front x 2) | mm | 28×9-15-12PR |
Tyre (Rear x 2) | mm | 6.50-10-10PR |
Total Weight | kg | 4840 |
Battery | V/Ah | 12/90 |
