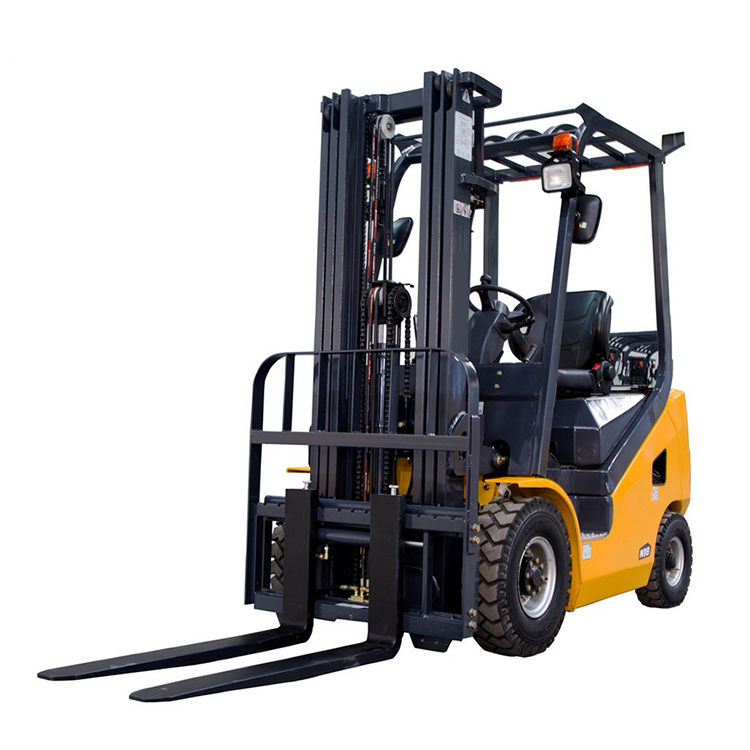

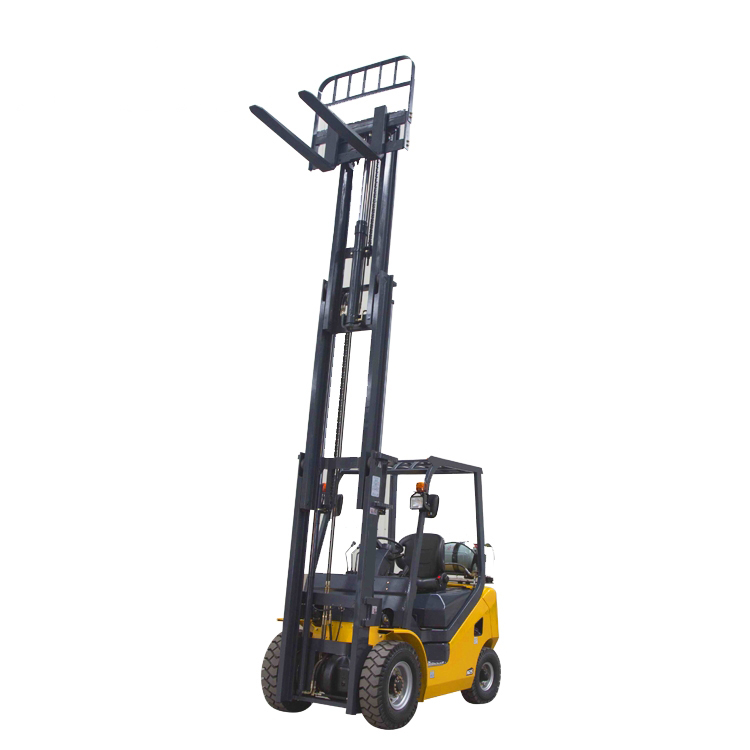

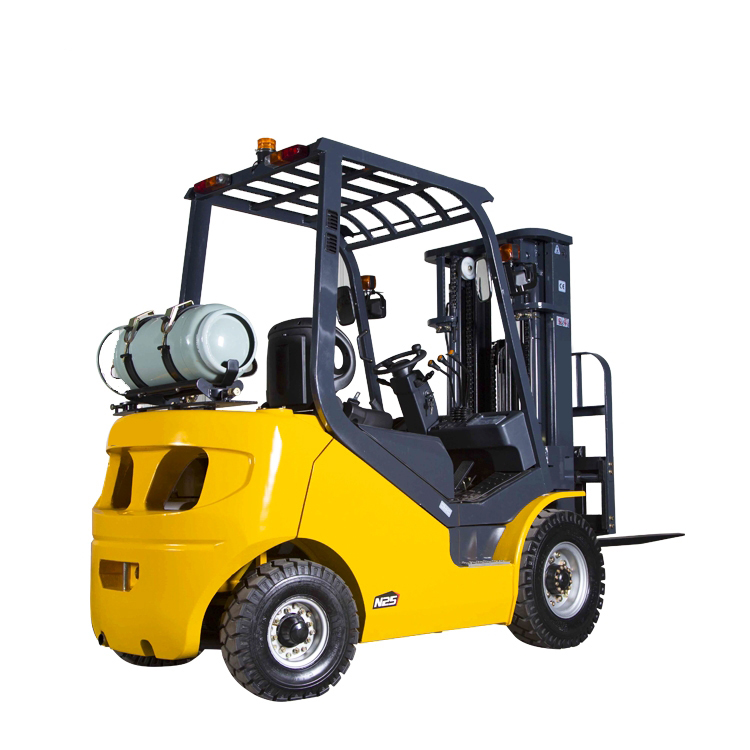

Home > Special purposs vehicleForklift XCMG FD15T Forklift
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.
Model | Item | FD15T |
Power Type | Diesel | |
Rated Load Capacity | kg | 1500 |
Rated Lift Height | mm | 3000 |
Fork Size(L*W*T) | mm | 920*120*35 |
Length to Face of Fork(Without Fork) | mm | 2250 |
Overall Width | mm | 1090 |
Overhead Guard Height | mm | 2180 |
Turning Radius(Outside) | mm | 2030 |
Travel Speed(No Load) | km/h | 14.5 |
Lifting Speed(Full Load) | mm/sec | 560 |
Lowering Speed(Full Load) | mm/sec | 450 |
Max. Gradeability (Full Load) | % | 20 |
Rated Output/rpm | kw | 30/2600 |
