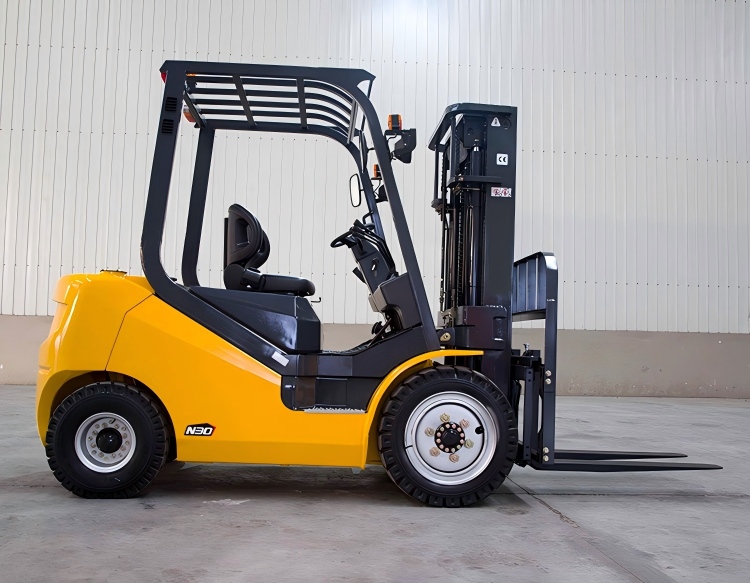

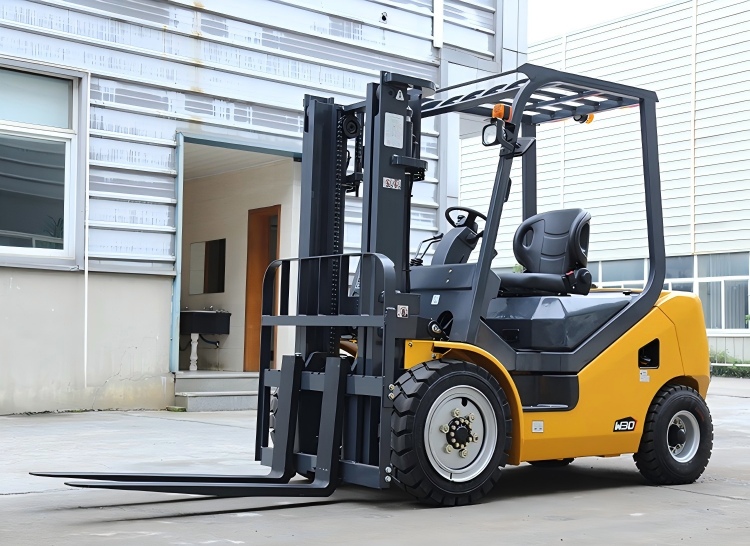

Home > Special purposs vehicleForkliftXCMG FD30T Forklift
Model | FD30T | ||||||
Power Type | Diesel | ||||||
Rated Load Capacity | 3000kg | ||||||
Load Centre | 500mm | ||||||
Rated Lift Height | 3000 | ||||||
Free Lift Height | 100mm | ||||||
Fork Size (L×W×T) | 1070×125×45mm | ||||||
Mast Tilt Angle (F/R, α°/β°) | 6°/12° | ||||||
Fork Overhang (Wheel Center to Fork Face) | 484mm | ||||||
Rear Overhang | 595mm | ||||||
Ground Clearance (Bottom of Mast) | 145mm | ||||||
Length to Face of Fork (Without Fork) | 2773mm | ||||||
Overall Width | 1225mm | ||||||
Overhead Guard Height | 2235mm | ||||||
Turning Radius (Outside) | 2450mm | ||||||
Travel Speed (No Load) | 19km/h | ||||||
Lifting Speed (Full Load) | 430mm/sec | 410mm/sec | |||||
Lowering Speed (Full Load) | 450mm/sec | ||||||
Max.Gradeability (Full Load) | 20% | ||||||
Tyre (Front x 2) | 28×9-15-12PR mm | ||||||
Tyre (Rear x 2) | 6.50-10-10PR mm | ||||||
Total Weight | 4340kg | ||||||
Battery | 12/90V/Ah | ||||||
Engine Model | A498BT1-35 | C490BPG-237 | C490BPG-37 | C240PKJ30 | 4TNE98 | Mitsubishi S4S(EuⅢ) | 4TNE94(EuⅢ) |
Engine Manufacturer | XINCHAI | XINCHAI | XINCHAI | ISUZU | YANMAR | Mitsubishi | YANMAR |
