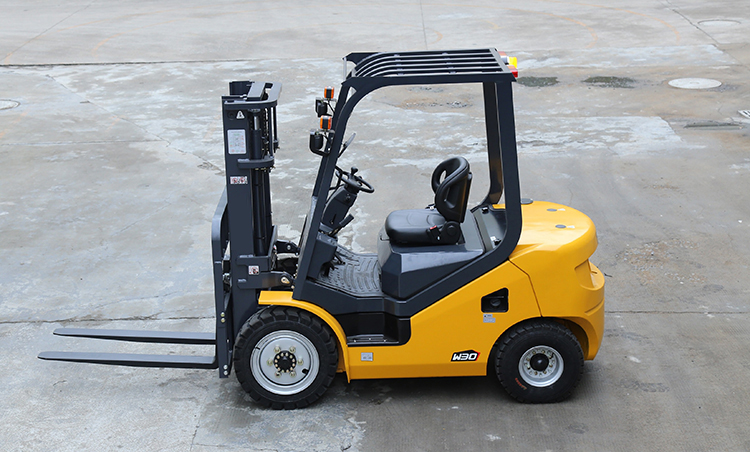

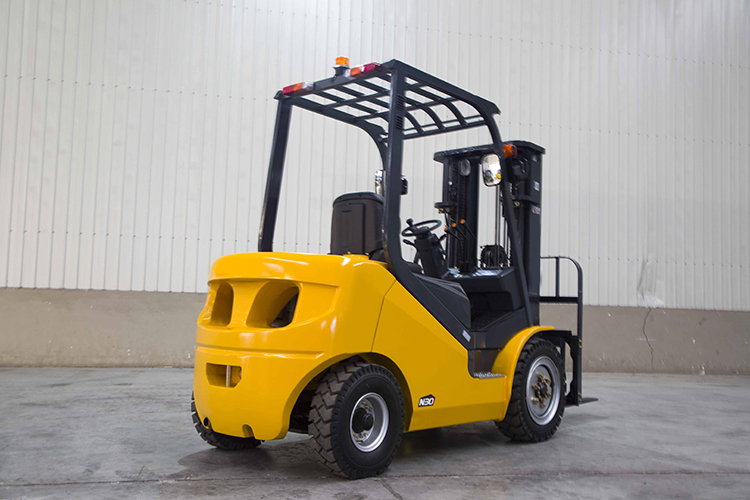

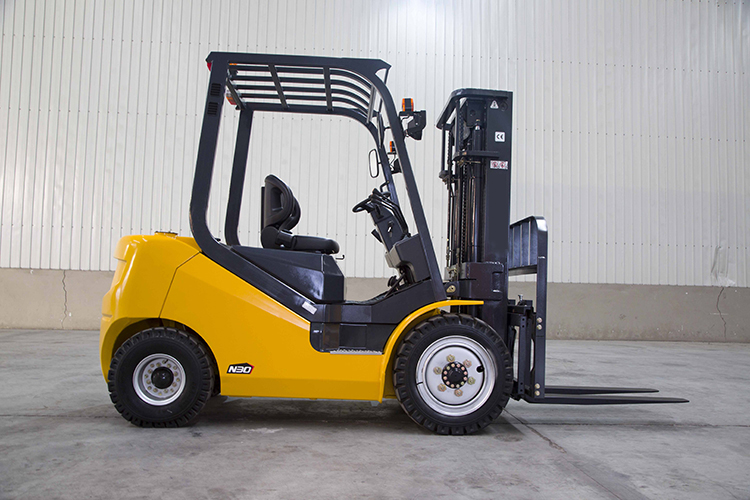

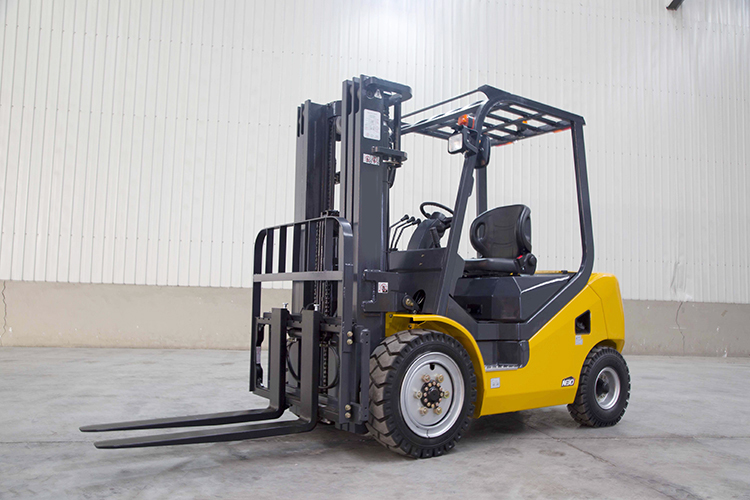

Home > Special purposs vehicleForkliftXCMG FD20T Forklift
Model | Unit | FD20T |
Power Type | Diesel | |
Rated Load Capacity | Q(kg) | 2000 |
Load Centre | C(mm) | 500 |
Rated Lift Height | H3(mm) | 3000 |
Free Lift Height | H2(mm) | 100 |
Fork Size (L×W×T) | mm | 1070×120×40 |
Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° |
Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 479 |
Rear Overhang | X2(mm) | 520 |
Ground Clearance (Bottom of Mast) | H7(mm) | 130 |
Length to Face of Fork (Without Fork) | L1(mm) | 2643 |
Overall Width | B1(mm) | 1150 |
Mast Lowered Height | H1(mm) | 2055 |
Mast Extended Height (With Backrest) | H4(mm) | 4070 |
Overhead Guard Height | H5(mm) | 2215 |
Turning Radius (Outside) | Wa(mm) | 2365 |
Min.Aisle width for pallets | Ast(mm) | 4120 |
Travel Speed (No Load) | km/h | 19 |
Lifting Speed (Full Load) | mm/sec | 510 |
Lowering Speed (Full Load) | mm/sec | 450 |
Max.Gradeability (Full Load) | % | 20 |
Tyre (Front x 2) | mm | 7.00-12-12PR |
Tyre (Rear x 2) | mm | 6.00-9-10PR |
Total Weight | kg | 3450 |
Battery | V/Ah | 12/90 |
