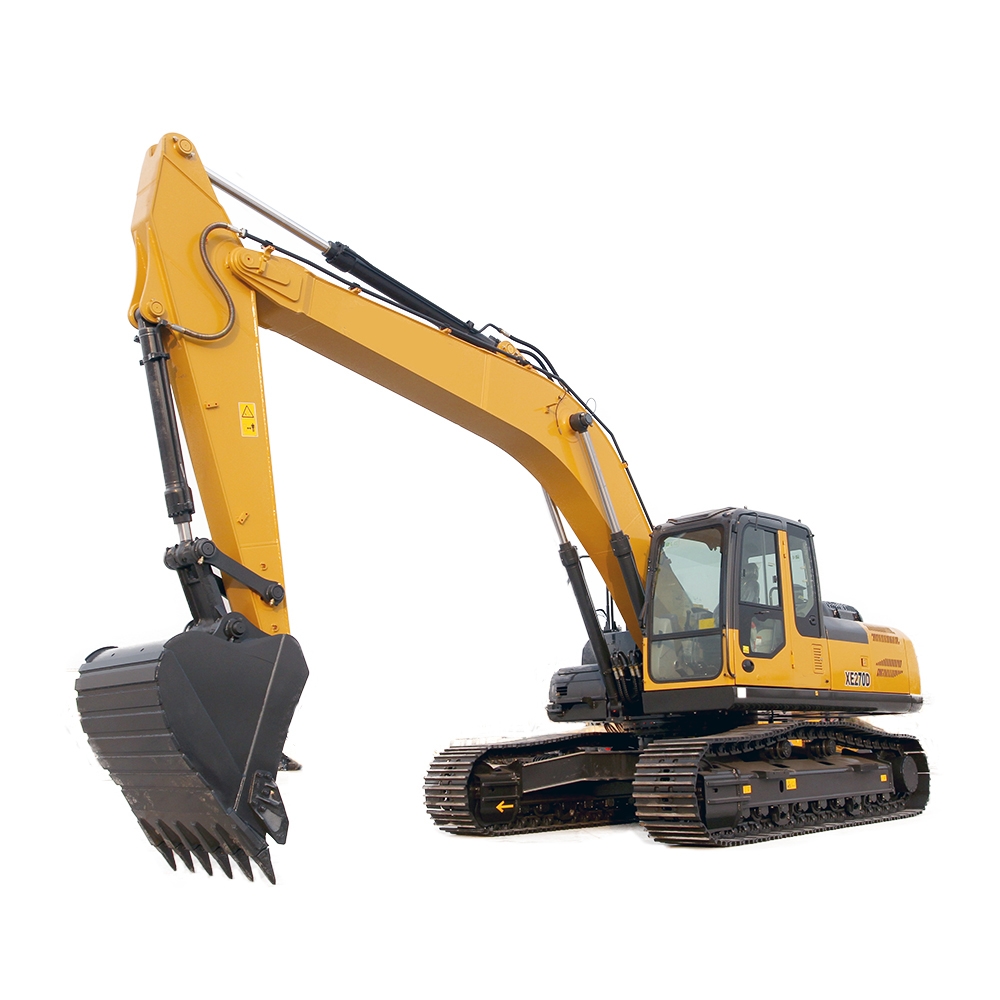

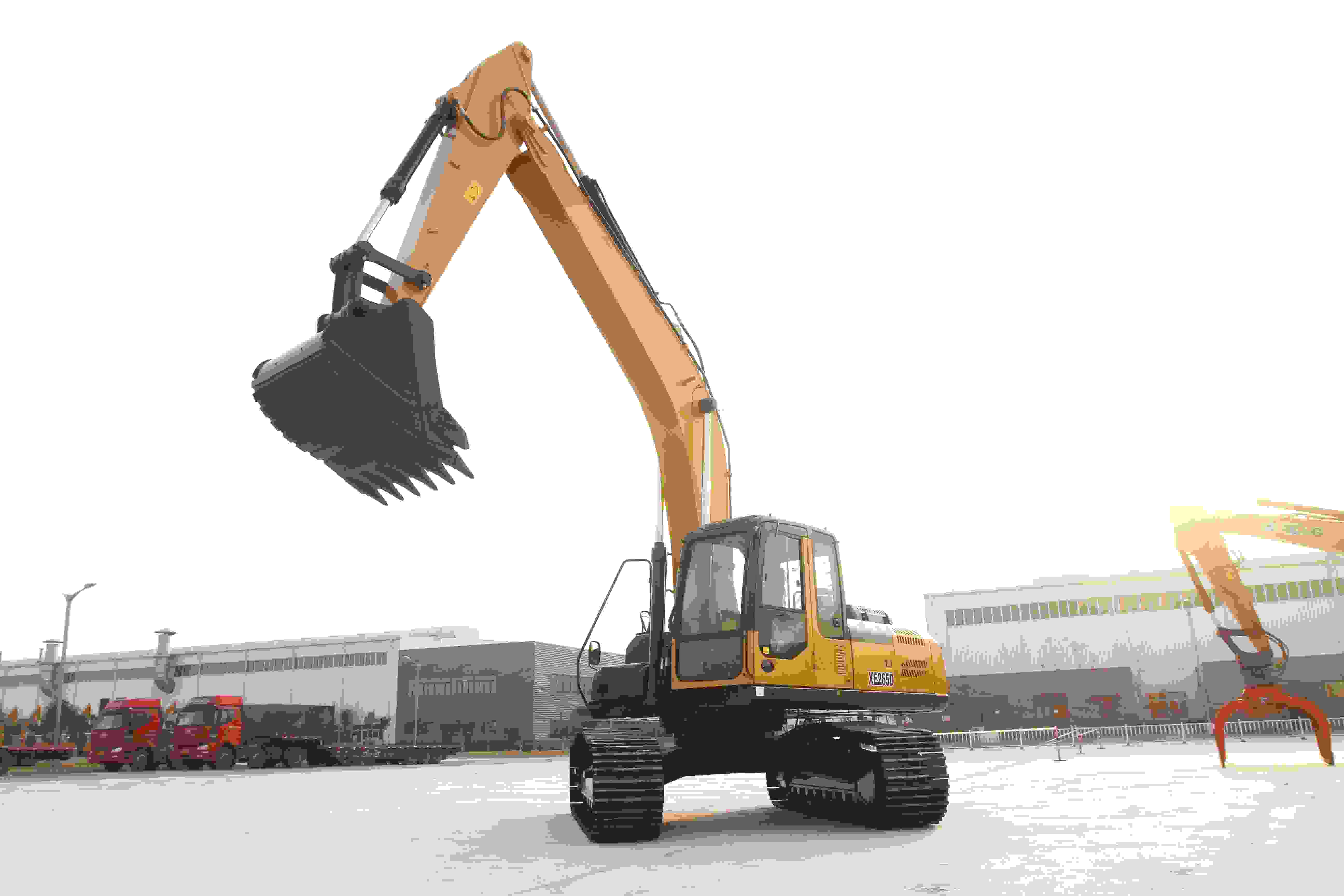

Home > Earth moving machineryExcavatorXCMG XE270DK Crawler Excavator
Sales model | Unit | Specification(XE270DK) | |
Engine | Engine model | - | QSB7 |
Rated power | kw/rpm | 150/2050 | |
Max. torque | N.m/rpm | 825/1250 | |
No. of cylinders | - | 6 | |
Displacement | L | 6.7 | |
Main performance | Walking speed | km/h | 6.1/3.8 |
Rotary speed | r/min | 11.4 | |
Climbing ability | ° | 35 | |
Ground pressure | kPa | 52.1 | |
Bucket digging force | KN | 185 | |
Arm digging force | KN | 129 | |
Max. traction | KN | 205 | |
Main pump rated flow | L/min | 259*2 | |
Hydraulic system | Main safety valve pressure | MPa | 34.3/37 |
Travel system pressure | MPa | 34.3 | |
Rotary system pressure | MPa | 25 | |
Pilot system pressure | MPa | 3.9 | |
Oil capacity | Fuel tank capacity | L | 400 |
Hydraulic tank volume | L | 220 | |
Working dimensions | Max. digging height | mm | 10095 |
Max. digging depth | mm | 6925 | |
Max. digging radius | mm | 10240 | |
Min. turning radius | mm | 3510 | |
Boom length | mm | 6000 | |
Arm length | mm | 2964 | |
