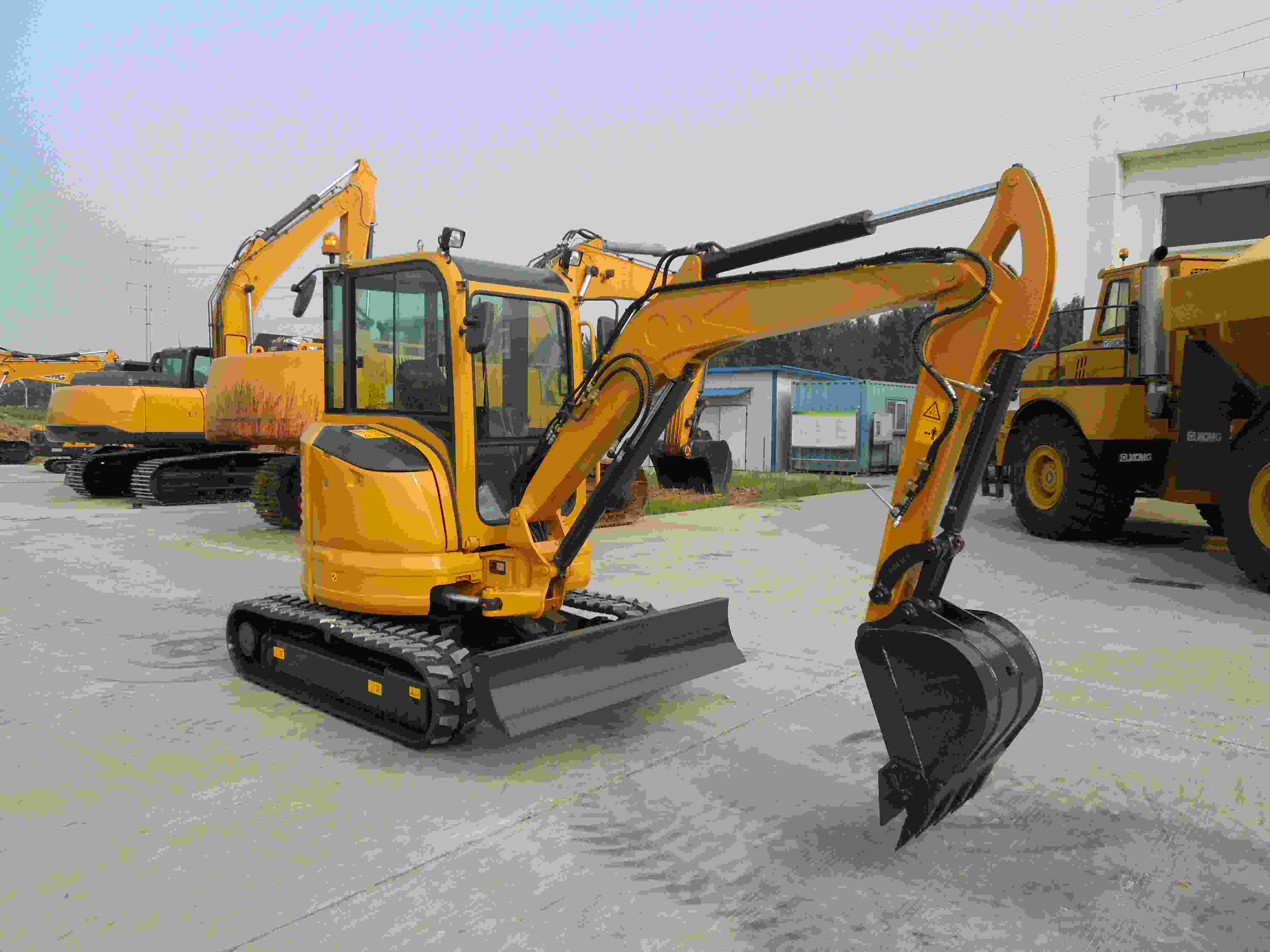

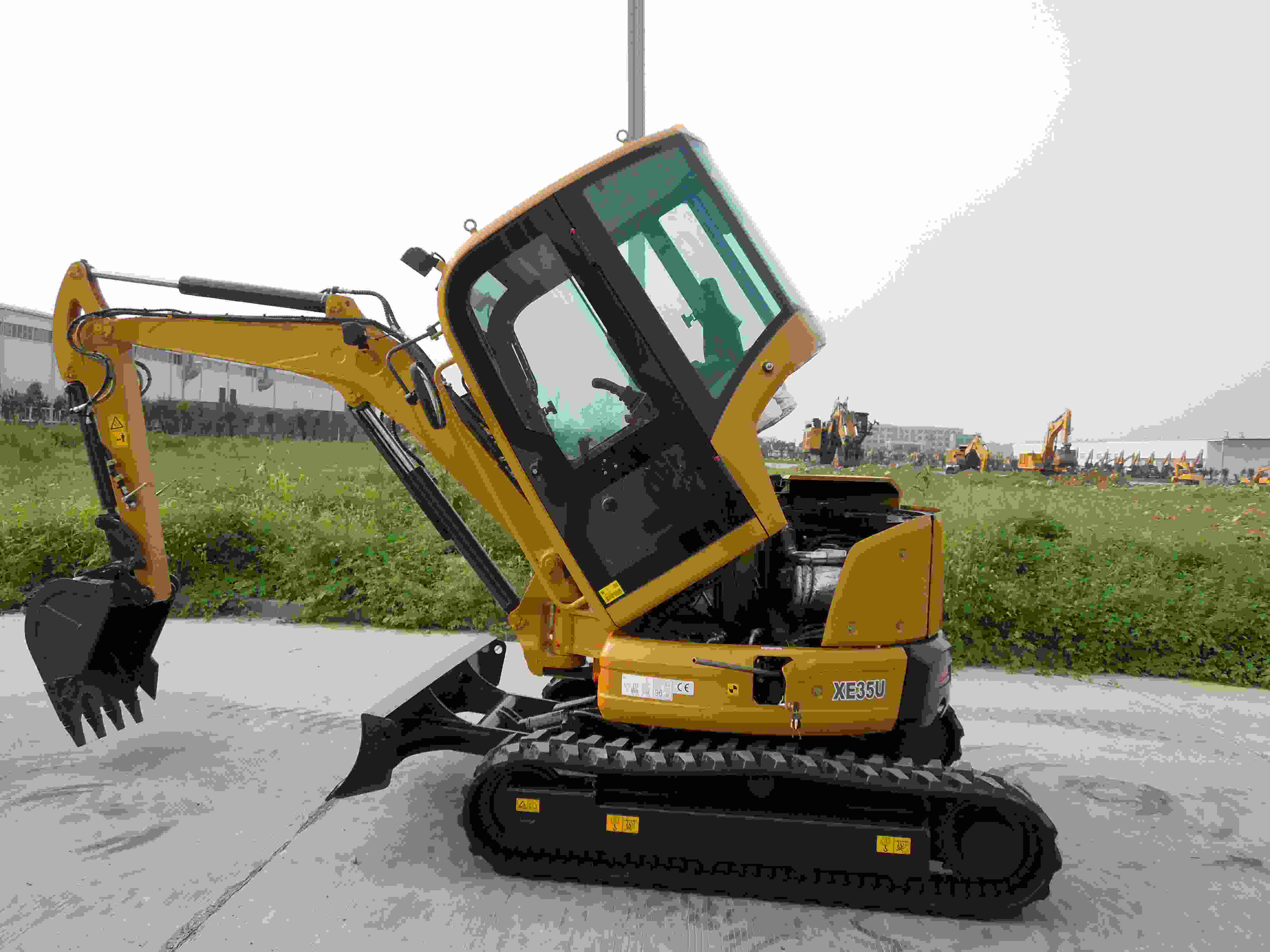

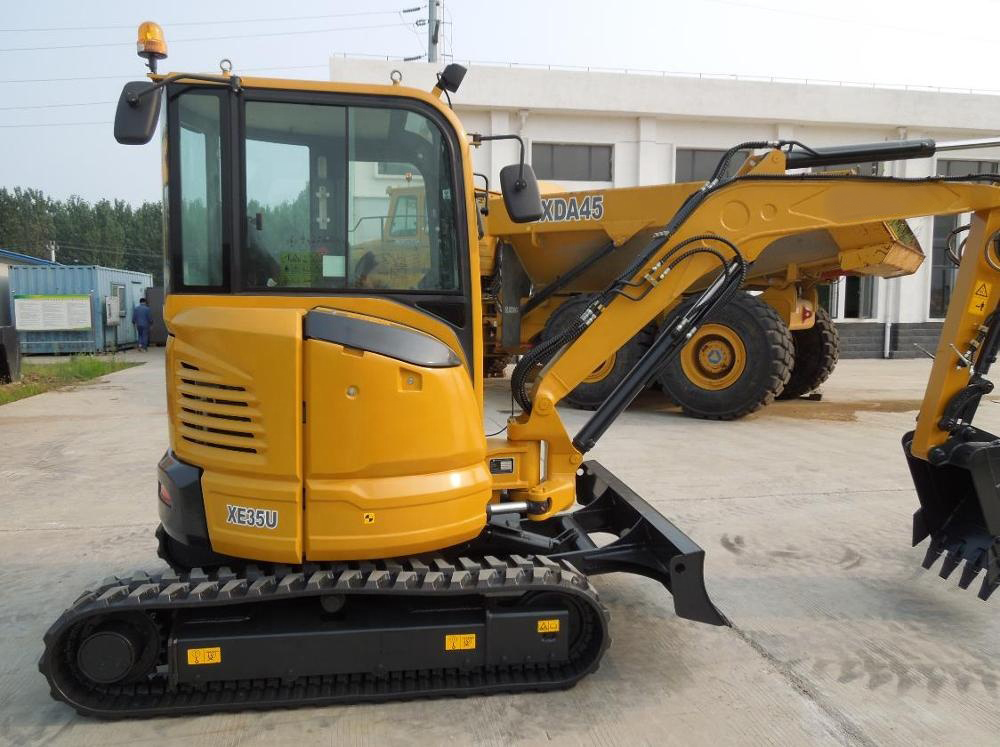

Home > Earth moving machineryExcavatorXCMG XE35U Crawler Excavator
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
Item | Unit | Specifications（XE35U） | |
Operating weight | kg | 4200 | |
Bucket capacity | m3 | 0.11 | |
Engine | Model | 3TNV88-BPXG | |
Displacement Standard | Tier IIIA | ||
Direct injection | --- | √ | |
Four strokes | --- | √ | |
Water cooling | --- | √ | |
No. of cylinders | --- | 3 | |
Output power | kW/ r/min | 21.6/2400 | |
torque/speed | N.m | 107.2/1444 | |
Displacement | L | 1.642 | |
Main performance | Travel speed（H/L) | km/h | 3.6/2.2 |
Grade ability | % | 58 | |
Rotating speed | r/min | 8.5 | |
Ground pressure | K Pa | 36.6 | |
Bucket digging force | KN | 24.6 | |
Arm crowd force | KN | 17.8 | |
Hydraulic System | Main pump | -- | NACHI |
Rated flow of main pump | L/min | 102 | |
Pressure of prime valve | M Pa | 22 | |
Pressure of pilot system | M Pa | 3.9 | |
Oil Capacity | Fuel tank capacity | L | 40 |
Hydraulic tank capacity | L | 35 | |
Engine oil capacity | L | 6 | |
Appearance size | Overall length | mm | 4960 |
Overall width | mm | 1740 | |
Overall height | mm | 2535 | |
Width of platform | mm | 1585 | |
Length of crawler | mm | 2220 | |
Overall width of chassis | mm | 1740 | |
Width of crawler | mm | 300 | |
Track length on ground | mm | 1440 | |
轨距Crawler gauge | mm | 1721 | |
Clearance under | mm | 587 | |
Min. ground clearance | mm | 297 | |
Min. tail swing radius | mm | 870 | |
Working scope | Max. digging height | mm | 5215 |
Max. dumping height | mm | 3760 | |
Max. digging depth | mm | 3060 | |
Max. vertical wall digging depth | mm | 2260 | |
Max. digging reach | mm | 5415 | |
Min. swing radius | mm | 2170 | |
Standard Congratulation | Boom Length | mm | 2560 |
Arm Length | mm | 1350 | |
Bucket Capacity | m³ | 0.11 | |
Operator’s cabin Defend | -- | TOPS FOPS | |
