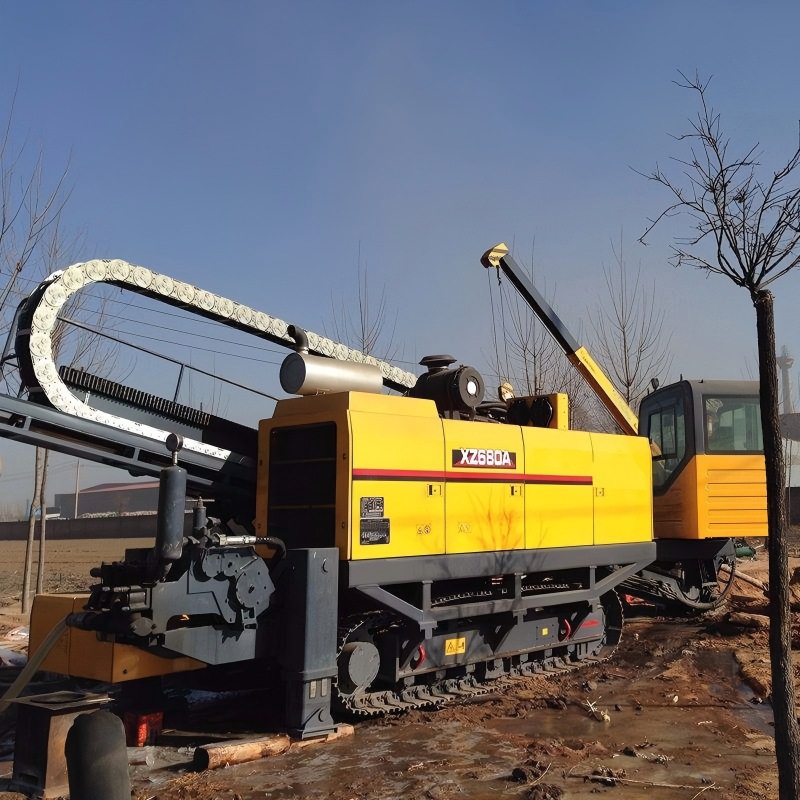

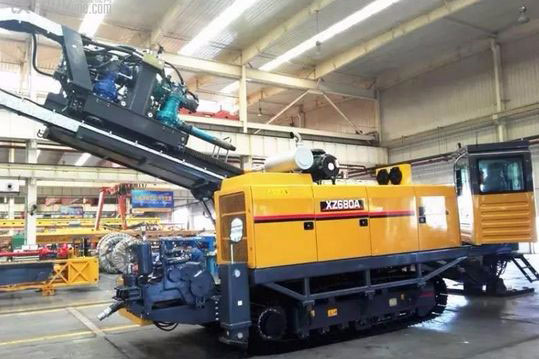

Model | XZ680A | |
Engine | Dongfeng Cummins | |
Rated power | kW | 239/2200 |
Max.pullback/thrusting | kN | 725/725 |
Spindle torque(max) | N.m | 28250 |
Spindle speed | r/min | 0～100 |
Spindle travelling speed | m/min | 0～32 |
Backreaming diameter | mm | - |
Tubing length(single) | m | 6 |
Tubing diameter | mm | φ102 |
Entry angle | ° | 10～18° |
Mud flow rate(max) | L/min | - |
Mud pressure (max) | bar | - |
Overall weight | kg | 21000 |
DIMENSION (LxWxH) | mm | 11610×2800×3115/ 11610×2475×311 |
