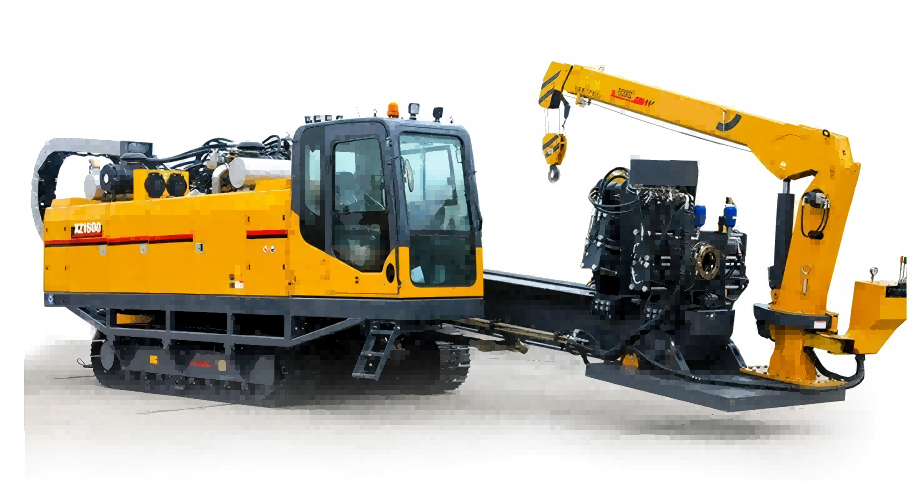

Home > Piling & Drilling machineryHorizontal directional drilling rigXCMG XZ1600 Horizontal Directional Drilling Rig
Similar Product
Select the products
Description | Unit | Parameter value | ||
Engine | Manufacturers | Cummins | ||
Model | QSL8.9 | |||
Rated Power | kW /(r/min) | 484 / 2100 | ||
Thrust-Pull | Max thrust-pull force | kN | 1650 | |
Max thrust-pull speed | m/min | 35 | ||
Rotation | Torque | N·m | 75000 | |
Max spindle speed | r/min | 90 | ||
Loader Crance | Max. Lifting weight | t | 3.2 | |
Loading capacity | t·m | 6.4 | ||
Max inclination angle | ° | 16 | ||
Travel driving | Type | Steel crawler self-propelled | ||
Traveling speed | Km/h | 1.5 | ||
Pipe | Diameter × Length | mm×mm | Φ127×6000 | |
Weight | kg | 30000 | ||
