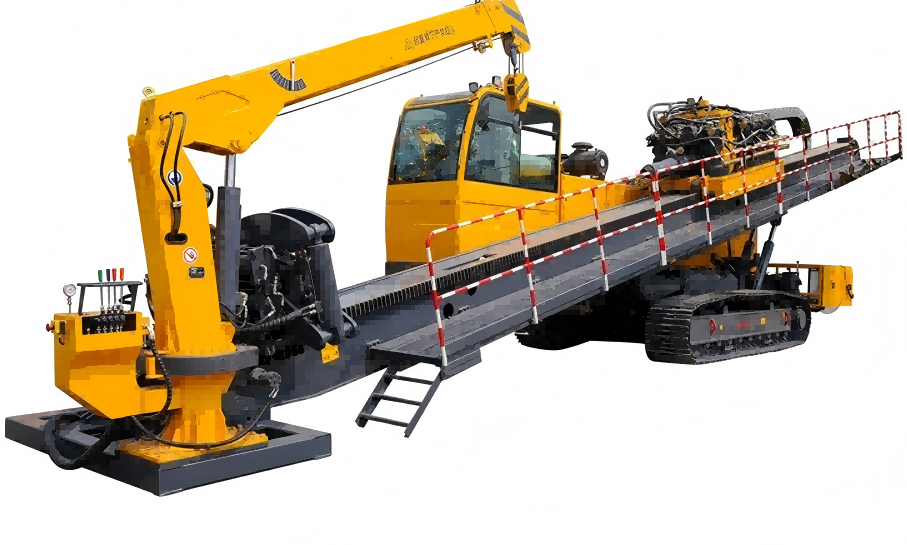

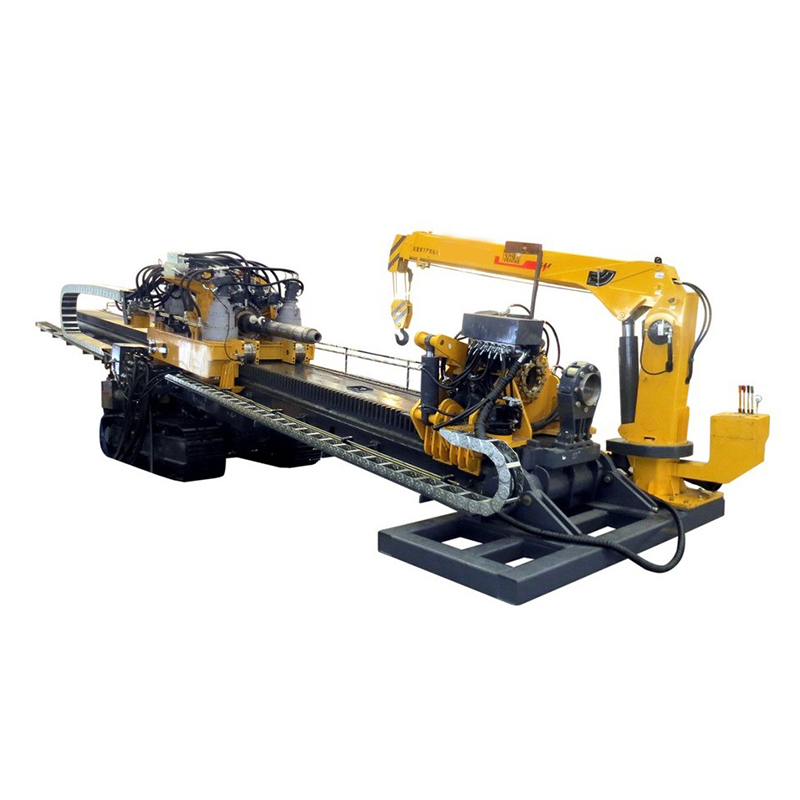

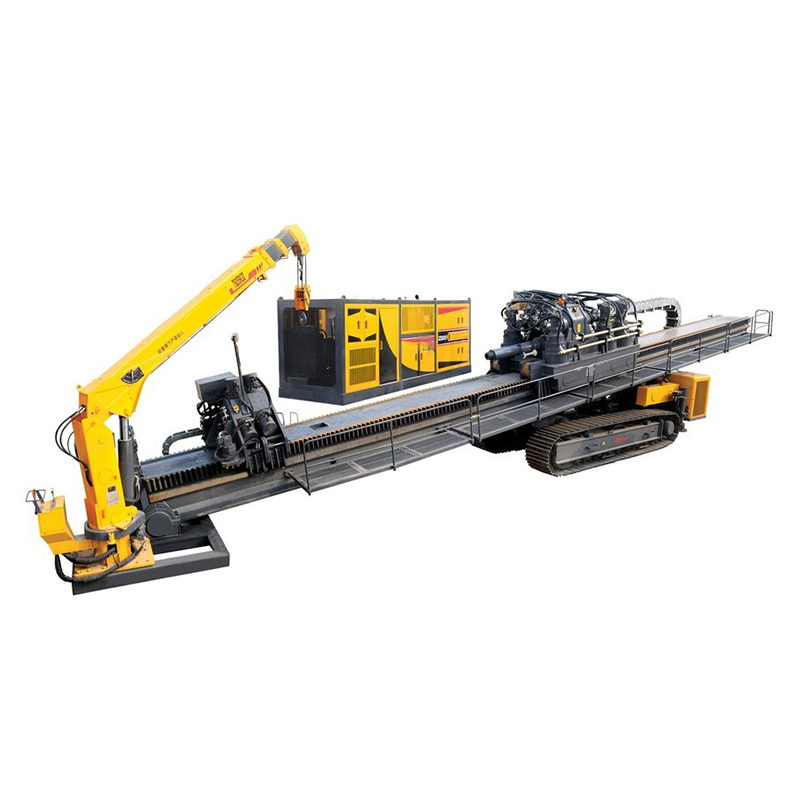

XCMG XZ2860 Horizontal Directional Drill


Similar Product


Select the products




<<  BACK TO LIST

Description

Unit

Parameter value

Engine

Manufacturers


Cummins

Model


QSL8.9 / 6LTAA8.9-C360(optional)

Rated Power

kW /(r/min)

528 / 2100

528 / 2200(optional)

Thrust-Pull

Max thrust-pull force

kN

2860/2860(XZ2860)

3600/3600(XZ2860Plus)

Max thrust-pull speed

m/min

25

Rotation

Torque

N·m

90000(XZ2860) / 110000(XZ2860Plus)

Max spindle speed

r/min

95(XZ2860) / 76(XZ2860Plus)

Loader Crance

Max. Lifting weight

t

3.2

Loading capacity

t·m

6.4

Max inclination angle

°

16

Travel driving

Type


Steel crawler self-propelled

Traveling speed

Km/h

1.5

Pipe

Diameter × Length

mm×mm

Φ140×9600

Weight

kg

46000(XZ2860) / 48000(XZ2860Plus)
