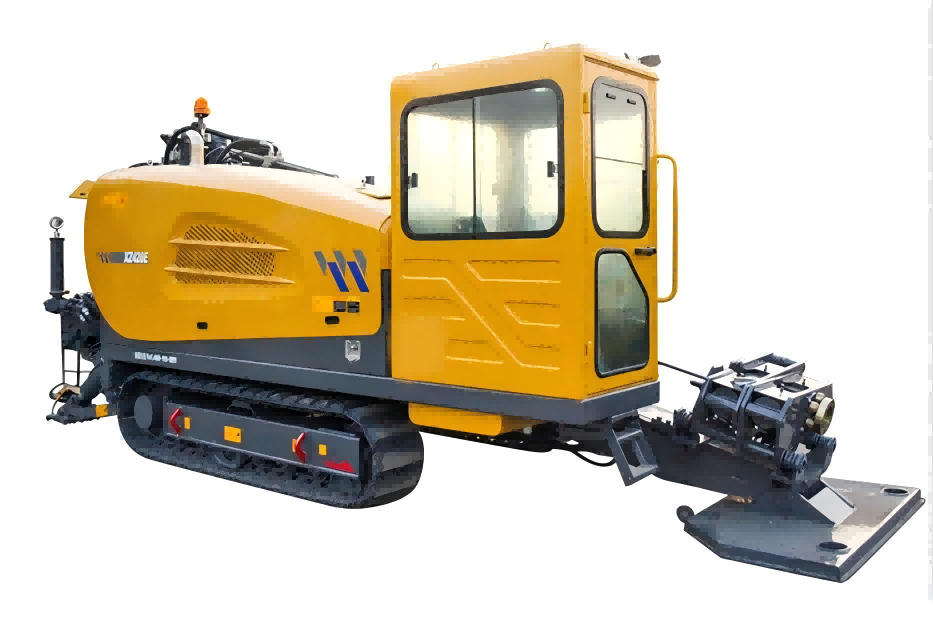

XCMG XZ420E Horizontal Directional Drilling Rig


Similar Product





<<  BACK TO LIST

Description

Unit

Parameter value

Engine

Manufacturers


Dongfeng Cummins

Model


QSC8.3-C240

Rated Power

kW /(r/min)

179 / 2200

Thrust-Pull

Type


Piston Motor+ Reduction Box

Max thrust-pull force

kN

420/500

Max thrust-pull speed

m/min

42

Rotation

Type


Piston Motor+ Reduction Box

Torque

N·m

18500

Max spindle speed

r/min

145

Loader Crance

/

/

Max inclination angle

°

20

Pipe

Diameter × Length

mm×mm

φ83×3000

Mud pump

Max Flow rate

L/min

400/450

Max pressure

MPa

8

Weight

kg

11000
