Home > Piling & Drilling machinery>Horizontal directional drilling rig>XZ200

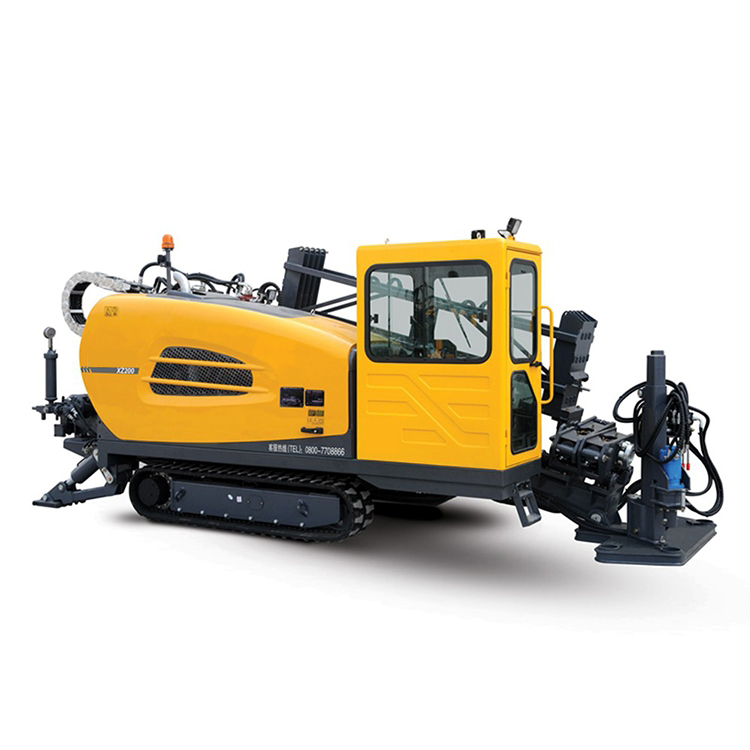

XZ200


Similar Product


Select the products




<<  BACK TO LIST

Model


XZ200

Engine


Chongqing CUMMINS

Rated power

kW

112 kW / 2200 r/min,97 kW / 2200 r/min

Max.pullback/thrusting

kN

200/200

Spindle torque(max)

N.m

6350

Spindle speed

r/min

0～160

Spindle travelling speed

m/min

0～26

Backreaming diameter

mm


Tubing length(single)

m

3m

Tubing diameter

mm

φ60 mm

Entry angle

°

10～22

Mud flow rate(max)

L/min


Mud pressure (max)

bar


Overall weight

kg


DIMENSION (LxWxH)

mm

5900×2250×2400
