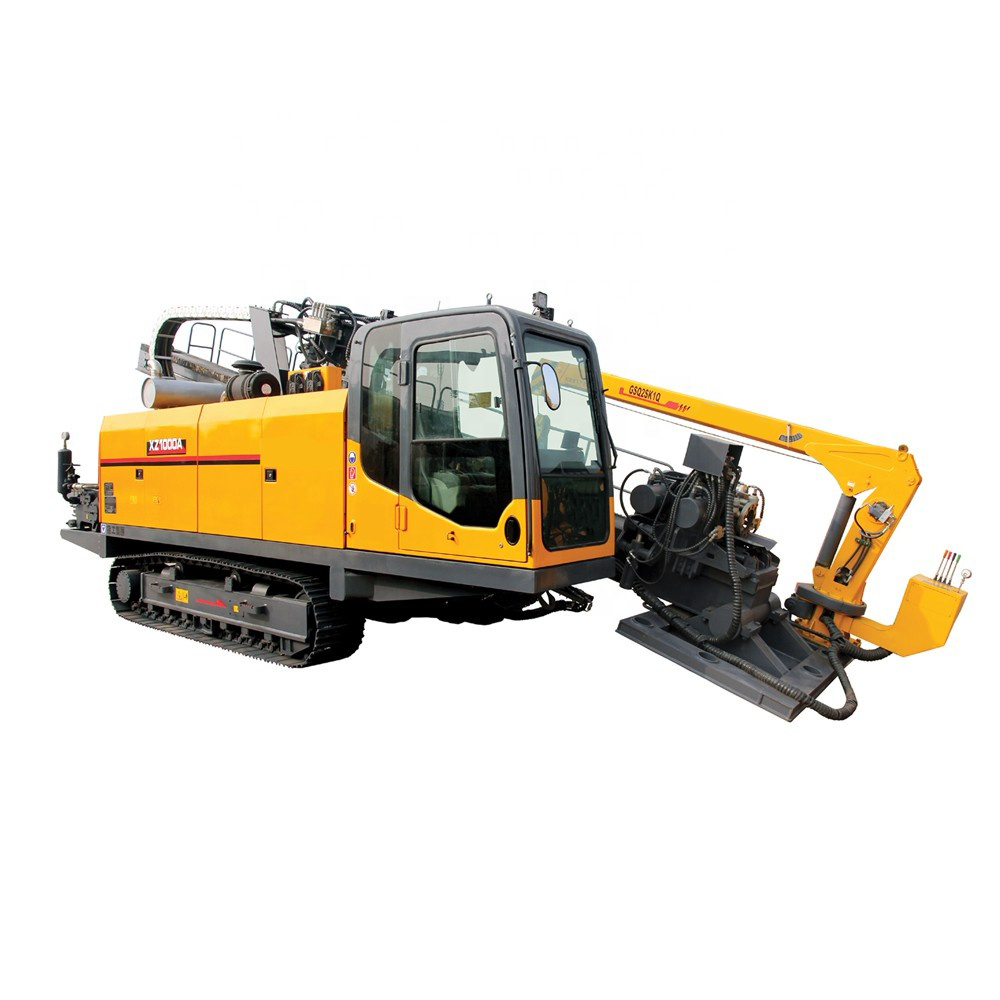

Model | XZ1000A | |
Engine | Chongqing Cummins | |
Rated power | kW/ rpm | 264 / 2200 |
Max.pullback/thrusting | kN | 1000/10000 |
Spindle torque(max) | N.m | 43000 |
Spindle rotate speed | r/min | 0～100 |
Spindle speed | r/min | 0～35 |
Tubing length(single) | m | 6m |
Tubing diameter | mm | φ127/φ114mm |
Entry angle | ° | 10～18° |
Mud flow rate(max) | L/min | |
Mud pressure (max) | bar | |
Overall weight | kg | 23000 |
DIMENSION (LxWxH) | mm | 11500×2900×3000 |
