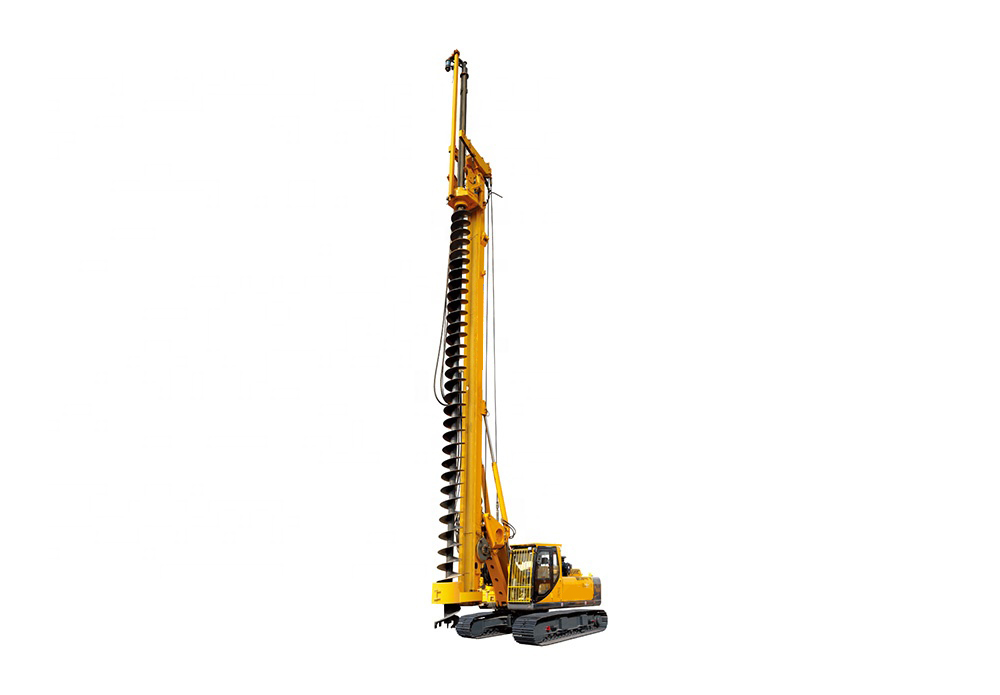

XCMG XR220D CFA Continuous Flight Auger


Similar Product


Select the products




<<  BACK TO LIST

Main Technical Specification

Engine

 Model


CUMMINS QSL9

 Rated Power

kW

242

 Rotary Drive

 Max. output torque

kN·m

220

 Rotary speed

r/min

7~25

 Max. Drilling Diameter

mm

1100

 Max. Drilling Depth

m

24

 Max Extraction Force

kN

700

 Auxiliary Winch

 Max.Pulling force

kN

30

 Max.line speed

m/min

80

Mast Rake

 Side/forwards/backwards

3°

 Undercarrige

 Max. traveling speed

km/h

1.5

 Max.grade ability

%

35

 Track shoe width

mm

800

 Distance between tracks

mm

3250~4400

 Overall Drilling Weight

t

70

 Dimension

 Working condition

mm

10695X4400X28555

 Transportation condition

mm

17900X3250X3550
