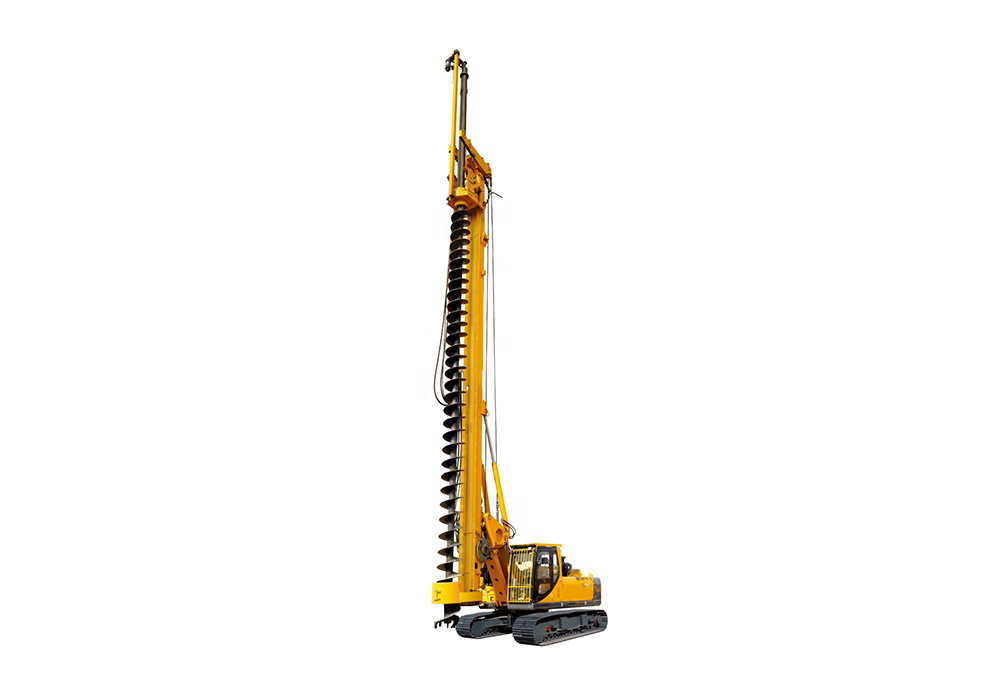

Home > Piling & Drilling machineryContinuous Flight Auger XCMG XR150D CFA Continuous Flight Auger
Similar Product
Select the products
Main Technical Specification | |||
Engine | Model | CUMMINS QSB7-C202 | |
Rated Power | kW | 150 | |
Rotary Drive | Max. output torque | kN·m | 150 |
Rotary speed | r/min | 7~33 | |
Max. Drilling Diameter | mm | 800 | |
Max. Drilling Depth | m | 20 | |
Max. Extraction Force | kN | 400 | |
Auxiliary Winch | Max.Pulling force | kN | 28 |
Max.line speed | m/min | 50 | |
Mast Rake | Side/forwards/backwards | 3° | |
Undercarrige | Max. traveling speed | km/h | 2.5 |
Max.grade ability | % | 40 | |
Track shoe width | mm | 700 | |
Distance between tracks | mm | 2960~4200 | |
Overall Drilling Weight | t | 48 | |
Dimension | Working condition | mm | 8620x4200x22850 |
Transportation condition | mm | 13060x2960x3125 |
