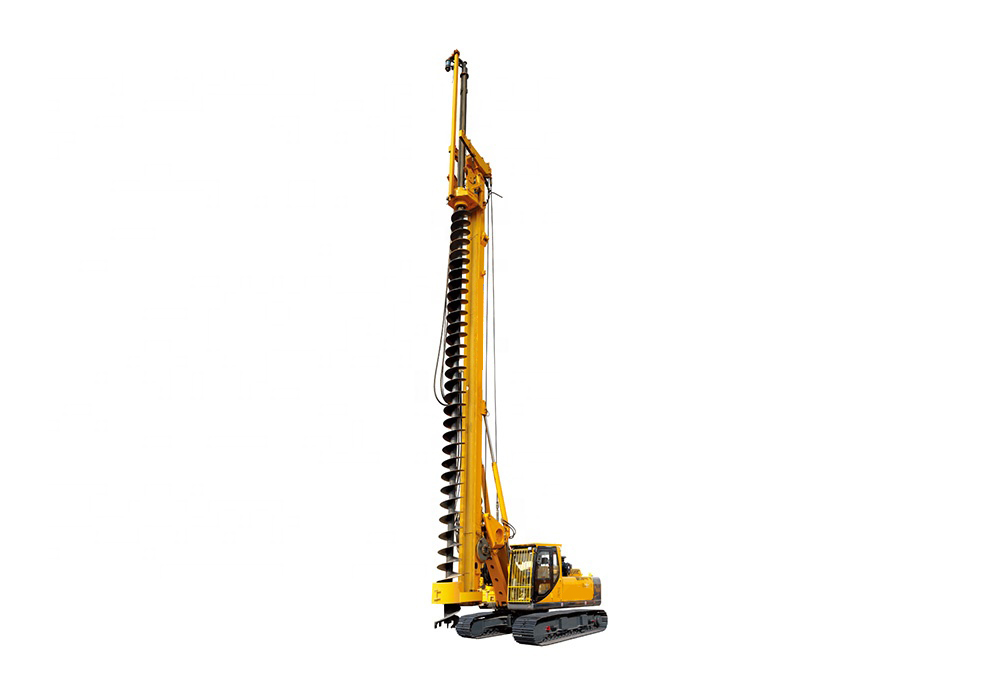

XCMG XR180D CFA Continuous Flight Auger


Similar Product


Select the products




<<  BACK TO LIST

Main Technical Specification

Engine

 Model


CUMMINS QSB6.7

 Rated Power

kW

194

 Rotary Drive

 Max. output torque

kN·m

180

 Rotary speed

r/min

7~27

 Max. Drilling Diameter

mm

800/1000

 Max. Drilling Depth

m

23/19

 Max Extraction Force

kN

500

 Auxiliary Winch

 Max.Pulling force

kN

28

 Max.line speed

m/min

60

Mast Rake

 Side/forwards/backwards

3°

 Undercarrige

 Max. traveling speed

km/h

1.5

 Max.grade ability

%

35

 Track shoe width

mm

700

 Distance between tracks

mm

2960~4200

 Overall Drilling Weight

t

58

 Dimension

 Working condition

mm

8540x4200x27430

 Transportation condition

mm

16330x2960x3400
