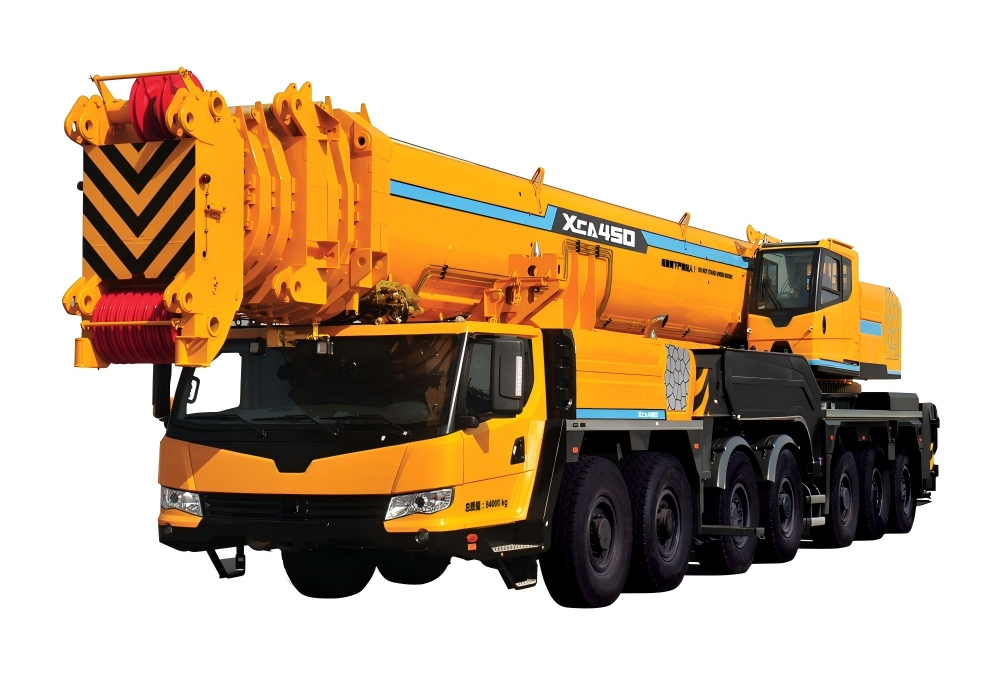

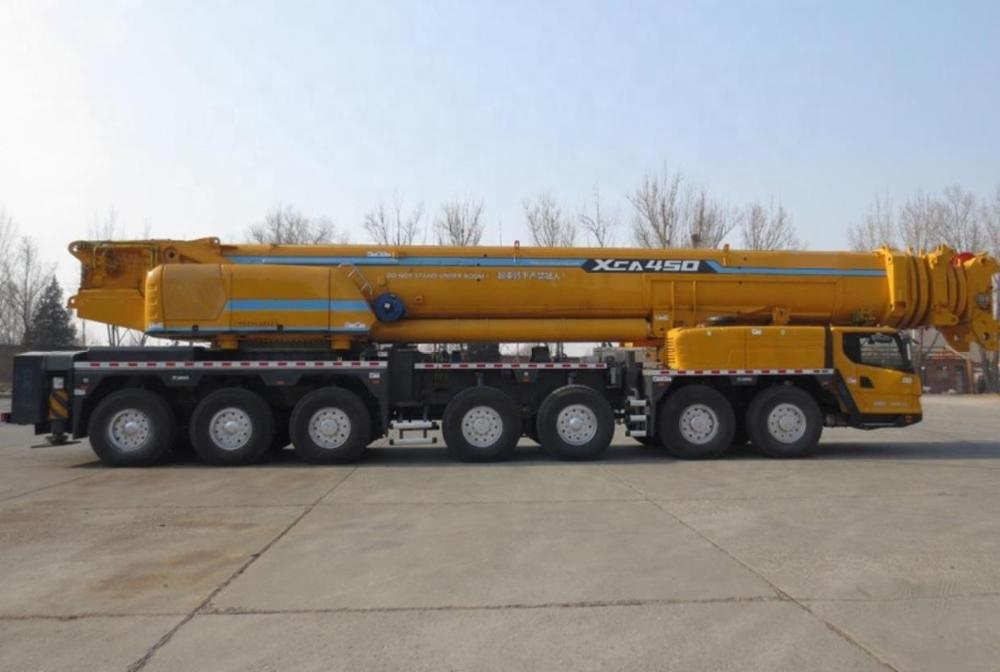

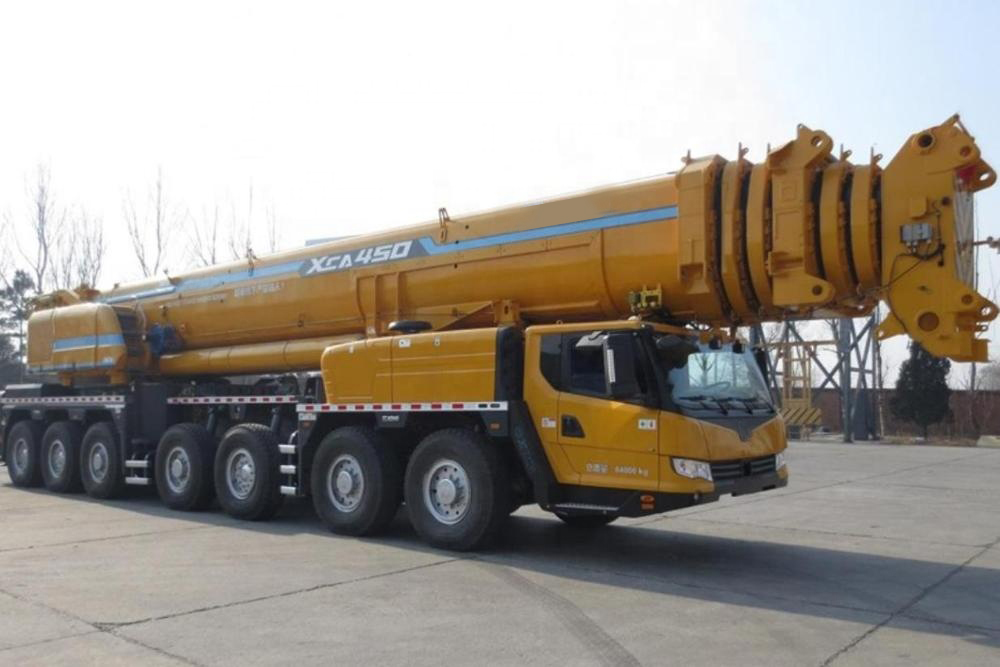

1.The crane is a five-axle 450 t All Terrain Crane with leading lifting performance.
2.The whole vehicle shares the chassis engine. The power is transferred via the mechanic transmission to the upper body and supplies it with the power. Maintenance is to be carried out only on the mono-engine chassis system thus reducing the workload of maintenance. The annual maintenance cost of dynamic system is saved for more than 40%.
3.Automatically recommend the most proper working conditions. Searching and setting work condition simply.
4.With first launched multi-mode drive technology in the industry, real-time intelligent control for various working conditions is realized so that the crane has optimized travel state and crane safety and reliability are improved.
5.Axle load monitoring technology: Proper gear (the highest gear engaged) and axle driving mode are matched automatically by axle load monitoring technology, which provides protection for crane safety in traveling.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 18090 |
Overall width | mm | 3000 |
Overall height | mm | 4000 |
Wheel base | mm | 1650+2180+1650+2580+1650+1650 |
Wheel track | mm | 2590/2590/2590/2590/2590/2590/2590 |
Weight | ||
Total weight in travel | kg | 84000 |
Axle load | kg | 12000/12000/12000/12000/12000/12000/ 12000 |
Power | ||
Engine model | dowm | OM502LA.E3B/2 |
Engine rated power | kw/(r/min | 442.6/1800 |
Engine rated torque | N.m/(r/min | 2800/1300 |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 76 |
Min. stable travel speed | km/h | 2 |
Turning | ||
Min. turning diameter | m | 24 |
Min. turning diameter(boom head) | m | 32.2 |
Max. grade ability | % | 42 |
Min. ground clearance | mm | 280 |
Approach angle | ° | 16 |
Departure angle | ° | 17 |
Braking distance | 30km/h | ≤10 |
Fuel consumption for 100km | L | 105 |
Lifting performance | ||
Grade Ability | % | 42 |
Max. total rated lifting capacity | t | 450 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 13500 |
Turning radius at turntable tail | mm | 6900 |
Outrigger | ||
Longitudinal distance span | m | 9.6 |
Lateral distance span | m | 9.6(6.272) |
Max. lifting height | ||
Base boom | m | 16 |
Fully extended boom | m | 80 |
Fully extended boom+jib | m | 130 |
Boom length | ||
Base boom | m | 15.3 |
Fully-extended boom | m | 80 |
Fully-extended boom+jib | m | 135.3 |
Longest variable amplitude pair arm | m | 84 |
Working speed | ||
Max. swing speed | r/min | 1.2 |
Lifting speed | ||
Main winch | m/min | 148 |
Vice winch | m/min | — |
Luffing arm luffing winch | m/min | 40 |
Boom full extension time | ||
extension | s | 900 |
contraction | s | 900 |
Boom elevating time | ||
Lifting | s | 90 |
Dropping | s | 90 |
Horizontal | ||
Stretching | s | 40 |
Retracting | s | 25 |
Vertical | ||
Stretching | s | 70 |
Retracting | s | 40 |
