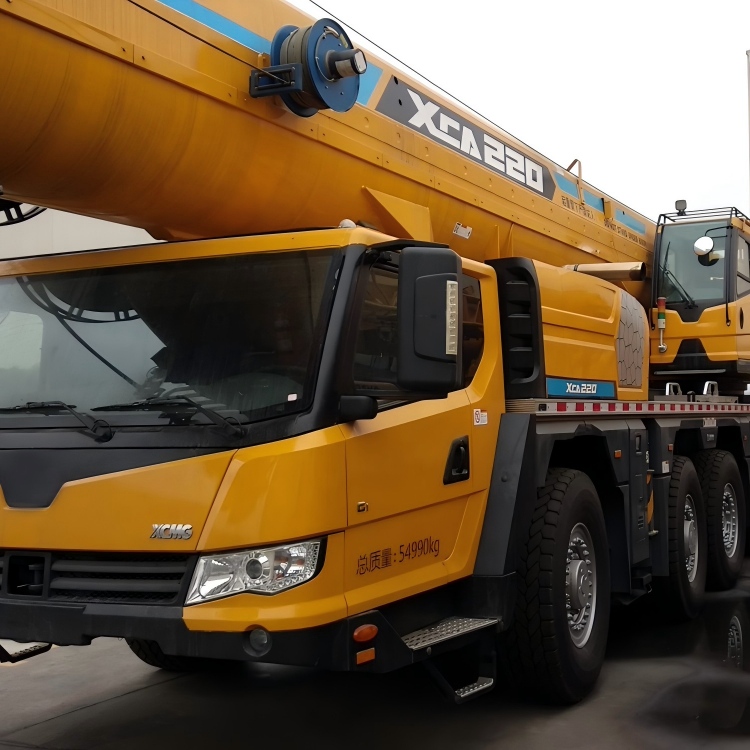

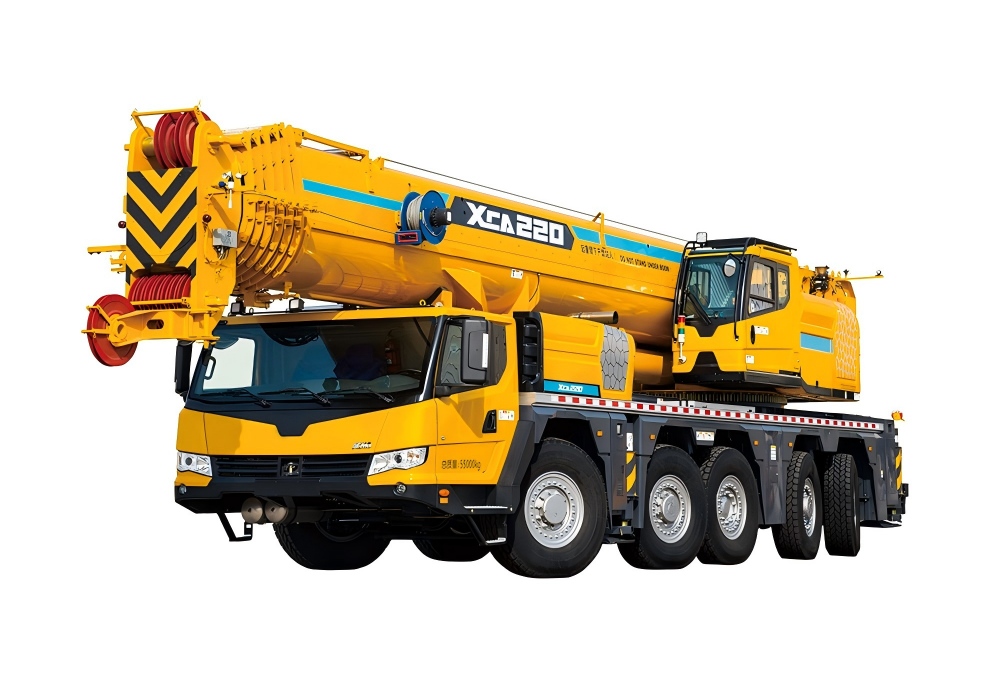

Developed for both domestic and international markets, XCA 220 all-terrain crane has an extensive applicability, and is widely suitable for lifting and installation operations in oil field construction, wharf building, bridge erection, etc.
With a 7-section elliptical boom extendable in the 13.4-73m range, an infinite luffing trussed jib extendable to 44 meters (incl. an 8-m-long additional section) and supported by 10x8x10 H-shaped triggers, the 5-axle chassis-mounted crane has an effective reach of as large as 108.2 meters. In addition, the twin independent winch layout, the modular balance weights and the new-type energy-efficient hydraulic system also make it stand out from its industry peers.
Its main performance characteristics are listed as follows:
1. A larger lifting height of up to 108 meters and a larger lifting capacity;
2. A single engine system of higher power and a maximum gradeability of 67%;
3. The design for efficient site transfer makes easy shifting with mounted balance weights to nearby workplaces.
4. The new-type energy-efficient hydraulic system contributes to a lower fuel consumption rate, a higher micro-motion performance and a better maneuverability;
5. The innovative application of intelligent boom technologies based on disruptive concepts of crane maneuverability delivers a comfortable experience of intelligent operation;
6. The World-leading intelligently-controlled crane traveling system and the optimal integrated control technique reduce the excessive wearing in the braking system during a long downhill journey, and thus extend its service life;
7. The industry-leading HMI system of sedan-class technical sophistication makes operation easier and quicker;
8. The new-type styling and user-friendly design make driving and operation more convenient.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 15500 |
Overall width | mm | 2980 |
Overall height | mm | 3930 |
Wheel base | mm | 2650+1650+2500+1650 |
Wheel track | mm | 2590 |
Weight | ||
Total weight in travel | kg | 55000 |
Axle load | kg | 12000×3+9500×2 |
Power | ||
Engine model | OM460LA.E3B/3 | |
Engine rated power | kw/(r/min | 361.1/1800 |
Engine rated torque | N.m/(r/min | 2200/1300 |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 84 |
Min. stable travel speed | km/h | 1~1.5 |
Turning | ||
Min. turning diameter | m | 18.5 |
Min. turning diameter(boom head) | m | 22.5 |
Max. grade ability | ％ | 67 |
Min. ground clearance | mm | 280 |
Approach angle | ° | 18 |
Departure angle | ° | 14 |
Braking distance | 30km/h | ≤9 |
Fuel consumption for 100km | L | 65 |
Lifting performance | ||
Grade Ability | ％ | 67 |
Max. total rated lifting capacity | t | 220 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 7393 |
Turning radius at turntable tail | mm | 5030 |
Outrigger | ||
Longitudinal distance span | m | 8.89 |
Lateral distance span | m | 8.3 |
Max. lifting height | ||
Base boom | m | 13.4 |
Fully extended boom | m | 73.5 |
Fully extended boom＋jib | m | 108 |
Boom length | ||
Base boom | m | 13.4 |
Fully-extended boom | m | 73 |
Fully-extended boom＋jib | m | 108.2 |
Working speed | ||
Max. swing speed | r/min | 1.9 |
Lifting speed | ||
Main winch | m/min | 130 |
Vice winch | m/min | 130 |
Boom full extension time | ||
extension | s | 600 |
contraction | s | 600 |
Boom elevating time | ||
Lifting | s | 55 |
Dropping | s | — |
Horizontal | ||
Stretching | s | — |
Retracting | s | — |
Vertical | ||
Stretching | s | 100 |
Retracting | s | 70 |
