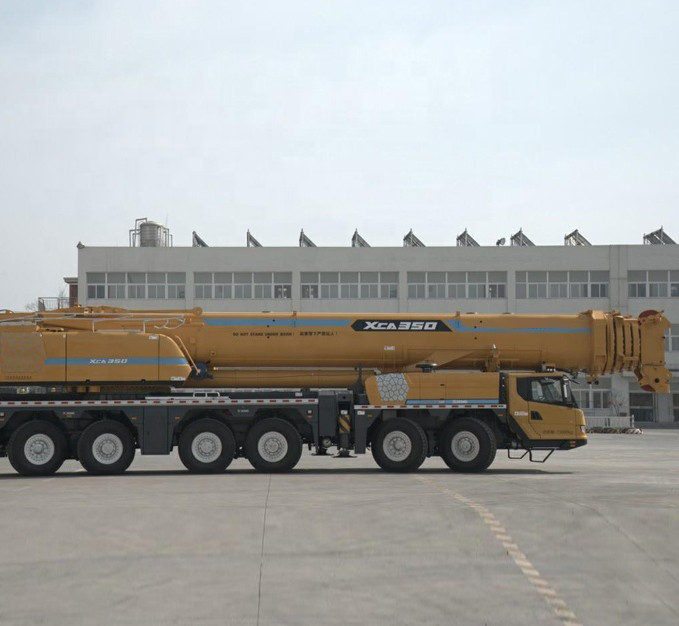

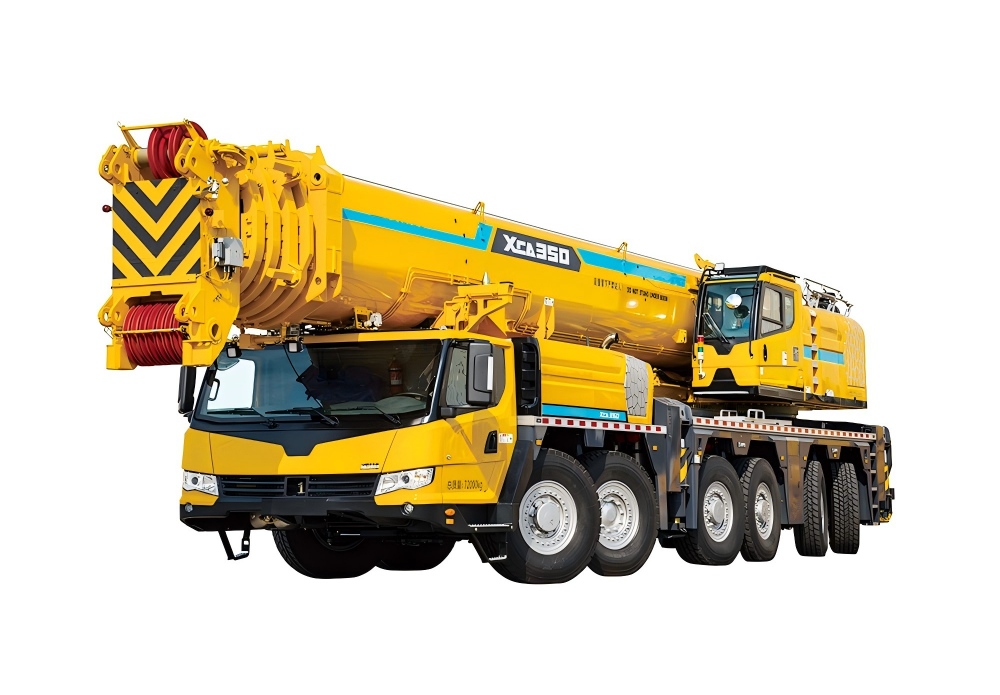

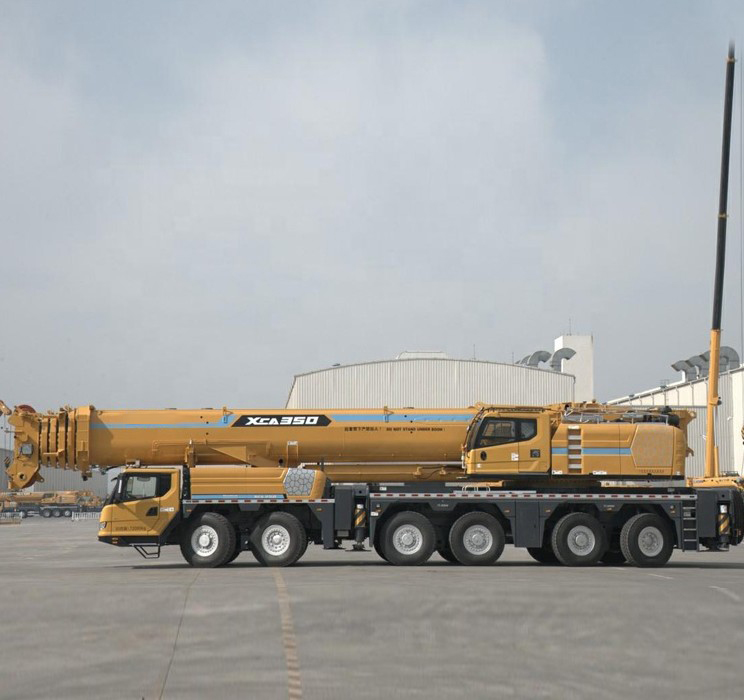

Home > Hoisting machineryAll terrain truck crane XCM XCA350All Terrain Truck Crane
XCA350 new terrain crane integrates 222 patent techniques, adopts 38 new patents techniques, and shows 8 technical highlights.
• The overall length in travel is only 15.77m, the weight is 60t, the chassis length is 13.77m, and the minimum turning radius is 10m. The whole configuration includes 6-segment boom with the length of 62m and 3-segment jib with the length of 28m. 6 counterweight combinations can finish nearly 30000 working conditions.
• Adopt the imported Benz EFI engine with strong power system and imported 12-gear automatic control transmission. The 2nd, 4th, and 5th axles are the drive axle. The steering form is 10x10 full-axle steering.
• Adopt new single cylinder retractable technique and high-intensity imported steel, featuring lighter dead-weight and stronger performance.
• The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%.
• The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes.
• The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety.
• The comfortable cabs and outrigger operation completely show the humanity design concept.
• Equip with the XCM unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 17654 |
Overall width | mm | 3000 |
Overall height | mm | 4000 |
Wheel base | mm | 1650+3100+1650+2440+1650 |
Wheel track | mm | 2590 |
Weight | ||
Total weight in travel | kg | 72000 |
Axle load | kg | 12000×6 |
Power | ||
Engine model | OM906LA.E3A/1 | |
Engine rated power | kw/(r/min | 205/2200 |
Engine rated torque | N.m/(r/min | 1100/1200~1600 |
Engine model | OM502LA.E3B/2 | |
Engine rated power | kw/(r/min | 442.6/1800 |
Engine rated torque | N.m/(r/min | 2800/1300 |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 80 |
Min. stable travel speed | km/h | 2 |
Turning | ||
Min. turning diameter | m | 23 |
Min. turning diameter(boom head) | m | — |
Max. grade ability | % | 57 |
Min. ground clearance | mm | 280 |
Approach angle | ° | 16 |
Departure angle | ° | 15 |
Braking distance | 30km/h | ≤10 |
Fuel consumption for 100km | L | 89.2 |
Lifting performance | ||
Grade Ability | % | 57 |
Max. total rated lifting capacity | t | 350 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 11500 |
Turning radius at turntable tail | mm | 3640 |
Outrigger | ||
m | 8.93 | |
Lateral distance span | m | 8.53(5.6) |
Max. lifting height | ||
Base boom | m | 16.07 |
Fully extended boom | m | 70.36 |
Fully extended boom+jib | m | 125 |
Boom length | ||
Base boom | m | 14.9 |
Fully-extended boom | m | 70 |
Fully-extended boom+jib | m | 130 |
· Longest variable amplitude pair arm | m | 78 |
Working speed | ||
Max. swing speed | r/min | 1.2 |
Lifting speed | ||
Main winch | m/min | 130 |
Vice winch | m/min | — |
· Luffing arm luffing winch | m/min | 75 |
Boom full extension time | ||
extension | s | ≤900 |
contraction | s | ≤800 |
Boom elevating time | ||
Lifting | s | ≤85 |
Dropping | s | ≤150 |
Horizontal | ||
Stretching | s | 35 |
Retracting | s | 20 |
Vertical | ||
Stretching | s | 70 |
Retracting | s | 40 |
