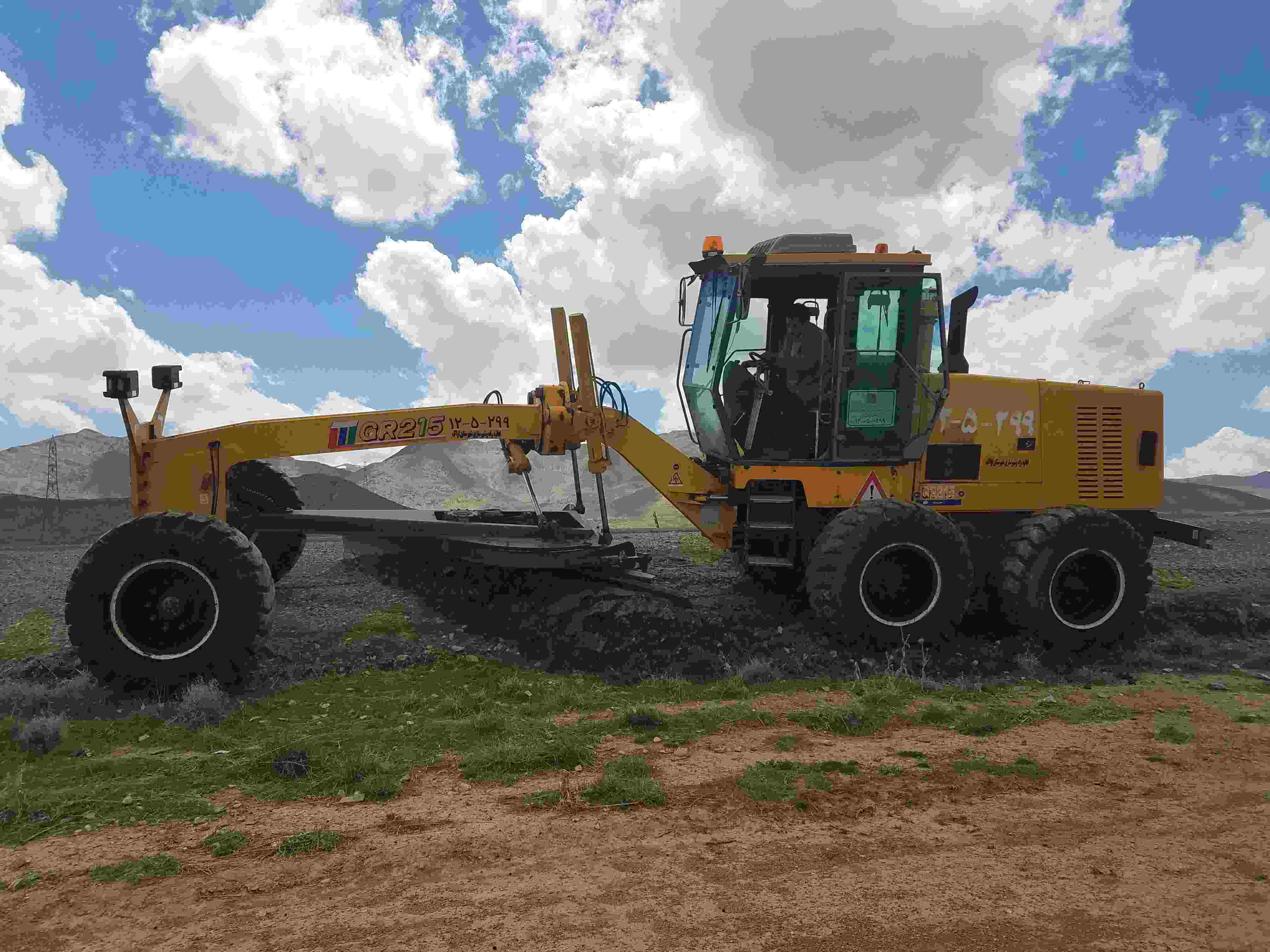

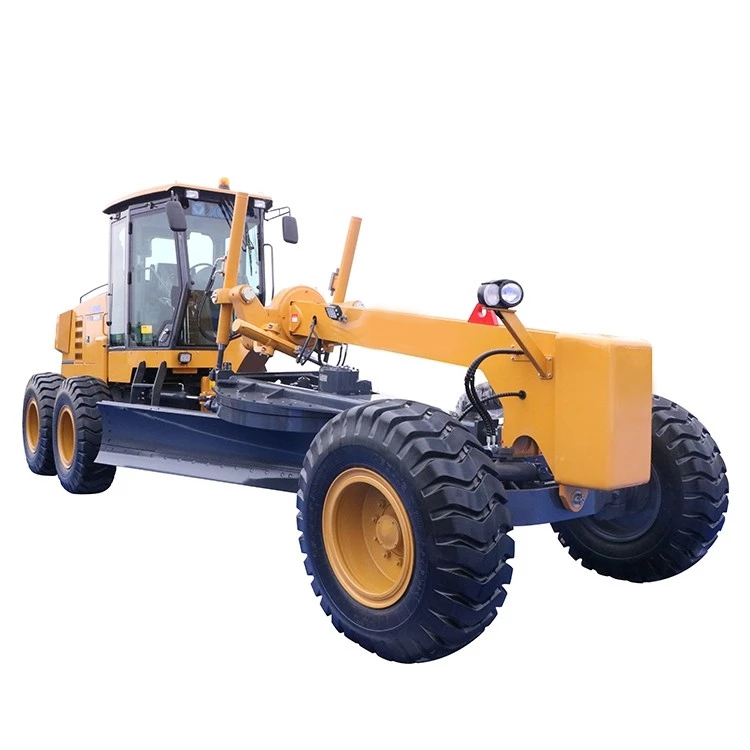

XCMG GR215A Motor Grader


Similar Product





<<  BACK TO LIST

Main parameters:
Operating weight :16 tons ,
Moldboard : 4270×610mm,

Detailed configuration:
Cummins 6CTA8.3 engine, 160kW
Meritor Driving axle ,
Advanced transmission or ZF transmission
Air conditioner driving cabin ,
Imported differential mechanism .



Advantages:
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts .Great working performance .Energy-saving and noise-reducing.

Optional parts:
Front mouldboard ,

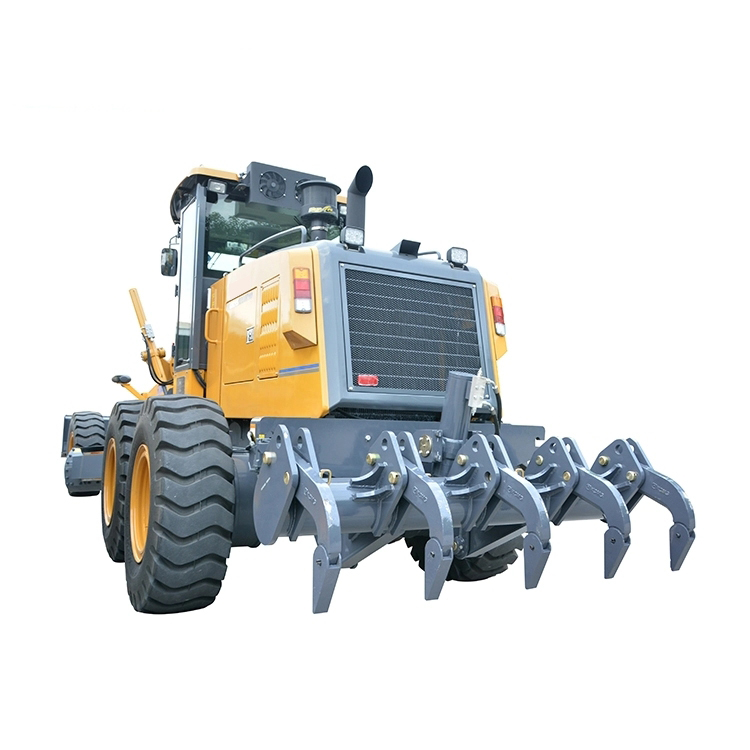

Rear scarifier ,
Shovel blade
Configuration for low temperature area

Basic specification

Engine model

QSB6.7/6CTA8.3

Rated power/speed

164kW/2200rpm  160kW/2200rpm

Dimension(LxWxH)

9180×2625×3470mm

Operating weight(Standard)

16100kg

Performance specification

Travelling speed ,forward

5,8,11,19,23,38 km/h

Travelling speed ,reverse

5,11,23 km/h

Tractive force(f=0.75)

115.3KN

Max. gradeability

36%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3~1.8MPa

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°-70°

Circle reversing rotation

360°

Moldboard width ×height

4270×610mm
