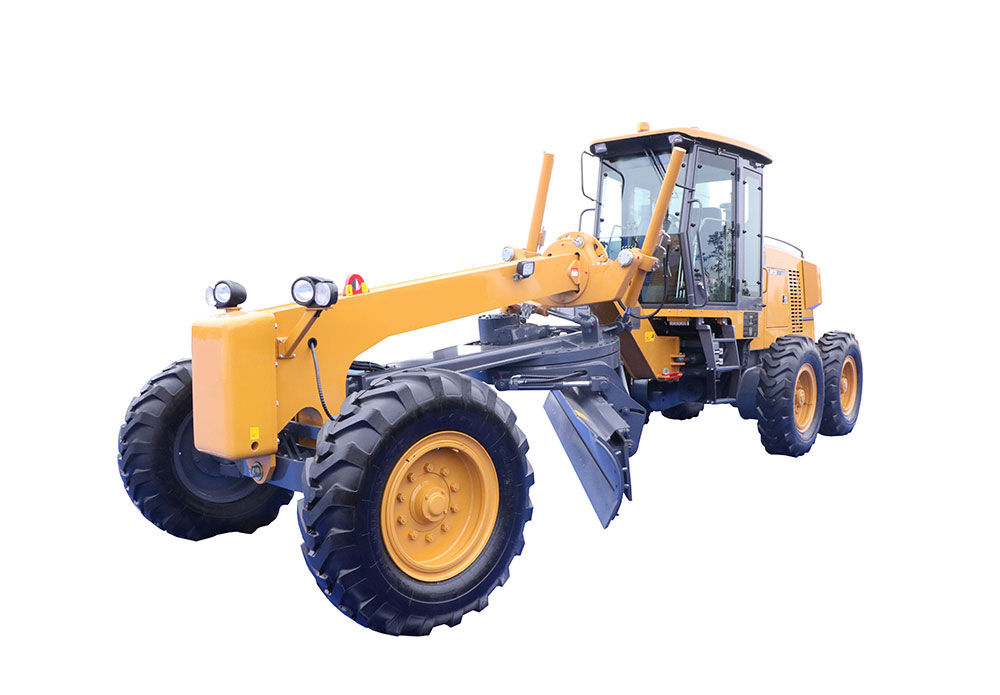

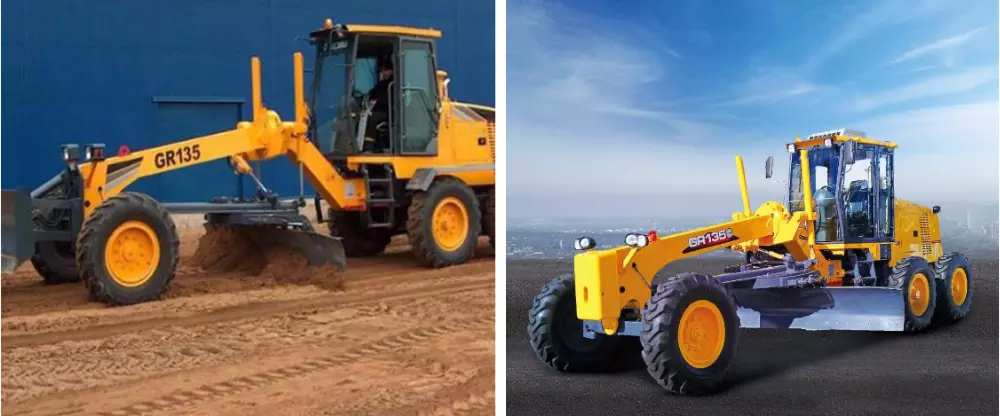

Home > Road machineryMotor GraderXCMG GR135 Motor Grader
Main parameters:
Total weight (standard) :11000kg ,
Moldboard : 3048×610mm,
Detailed configuration
Cummins 6BT5.9-C130-II engine,
Meritor driving axle ,
Air Conditioner driving cabin ,
Imported differential mechanism .
Advantages
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts .Great working performance .
Optional
Front mouldboard ,

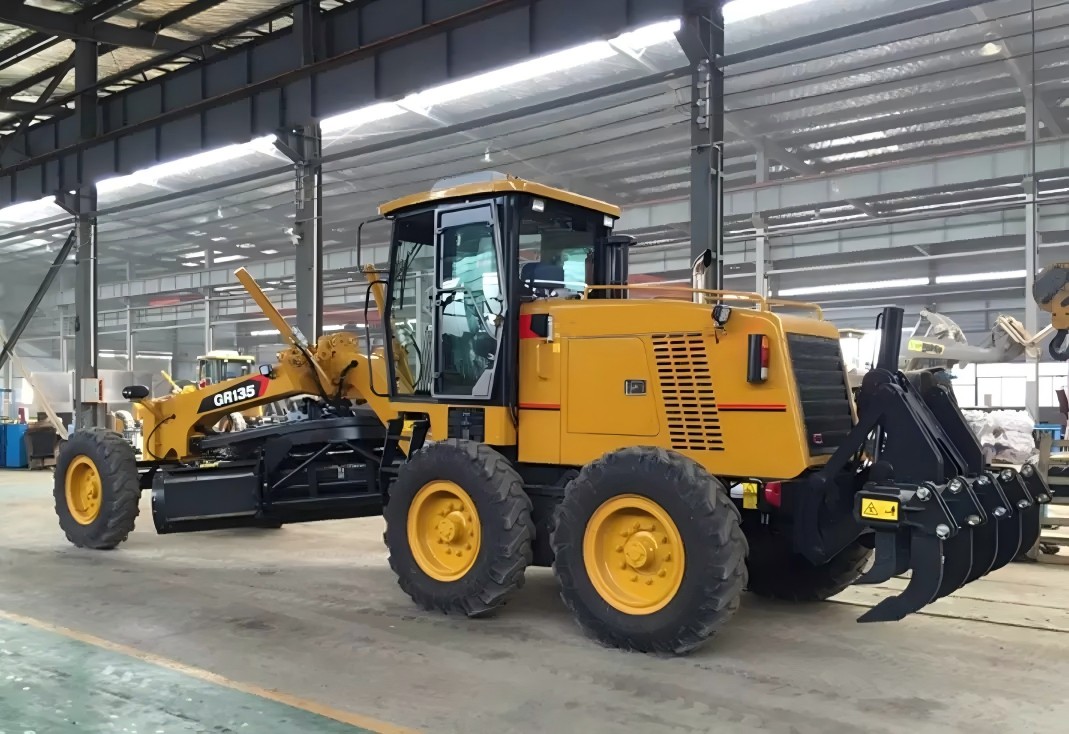

Rear scarifier ,
Shovel blade
Item | Unit | Specification | |
Basic specification | |||
Engine manufacture | Dongfeng Cummins | ||
Engine model | 6BT5.9-C130-Ⅱ | ||
Rated power/speed | kW/rpm | 97/2200 | |
Overall dimension(standard) | mm | 8015 x 2380 x 3050 | |
Total weight(standard) | kg | 11000 | |
Tire specification | 13.00-24 | ||
Ground clearance | mm | 515 | |
Tread | mm | 2020 | |
Space of front and rear axles | mm | 5780 | |
Performance specification | |||
Forward velocity | km/h | 5、8、13、20、30、42 | |
Reverse speed | km/h | 5、13、30 | |
Tractive effort f=0.75 | kN | 61.3 | |
Maximum gradeadbility | % | 20 | |
Inflation pressure of tires | kPa | 300 | |
Working system pressure | MPa | 16 | |
Transmission pressure | MPa | 1.3-1.8 | |
Working parameters | |||
Maximum steering angle of front wheels | ° | ±49 | |
Maximum slant angle of front wheel | ° | ±17 | |
Maximum oscillating angle of front axle | ° | ±15 | |
Maximum oscillating angle of equilibrium box | ° | ±16 | |
Maximum steering angle of frame | ° | ±27 | |
Maximum turning radius | m | 6.6 | |
Blade | Maximum lifting height | mm | 410 |
Maximum shoveling depth | mm | 515 | |
Maximum lateral inclination angle | ° | 90 | |
Cutting angle | ° | 54-90 | |
Slewing angle | ° | 360 | |
Length x chord height | mm | 3048 x 610 | |
Oil filling amount | |||
Coolant | L | 50 | |
Fuel tank | L | 260 | |
Engine | L | 18 | |
Transmission | L | 26 | |
Hydraulic oil | L | 96 | |
Drive axle | L | 28 | |
Balancing box | L | 46 | |
