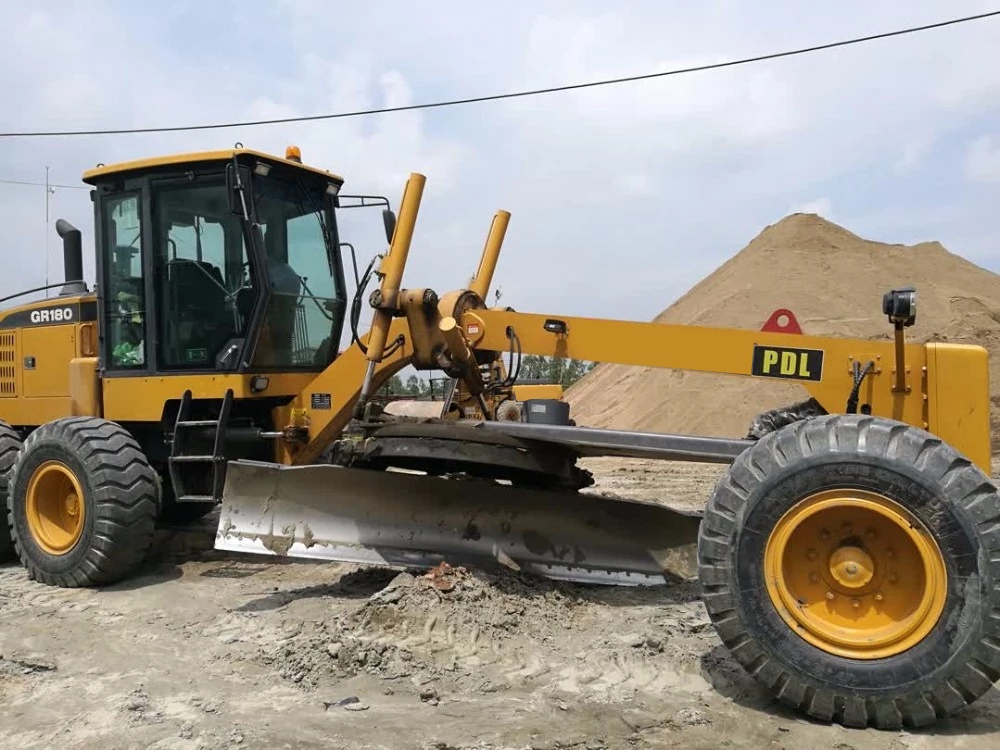

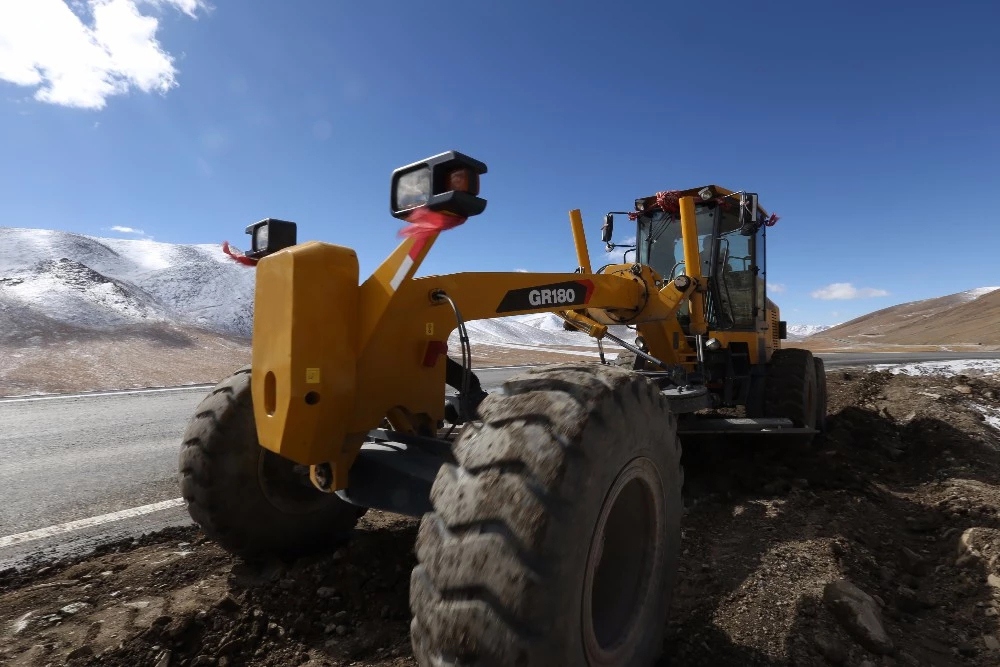

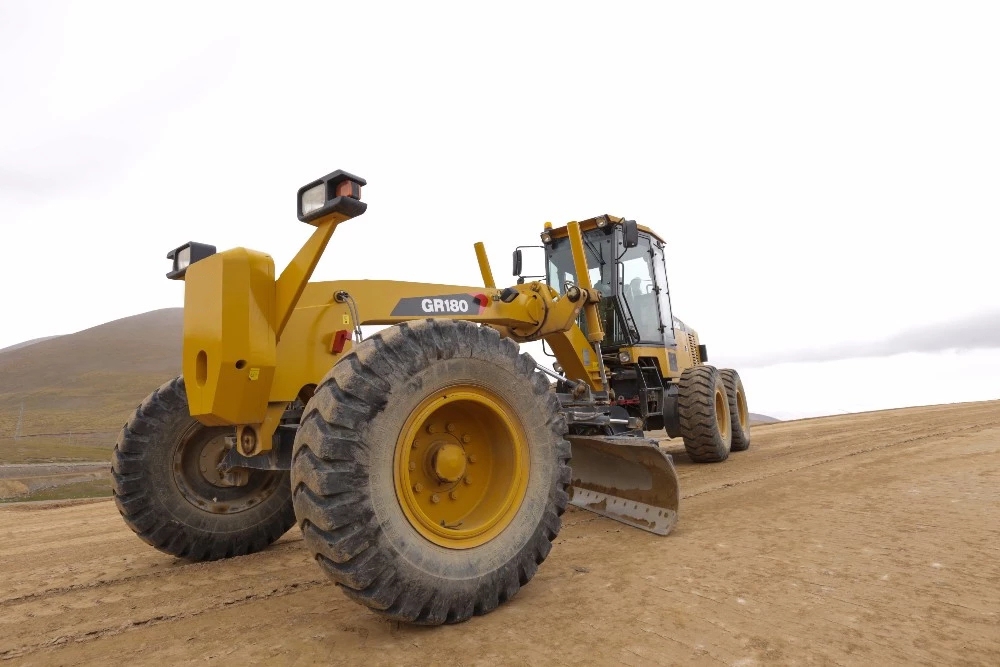

Home > Road machineryMotor Grader XCMG GR180 Motor Grader
Main parameters:
Operating weight :15400 kg
Moldboard : 3965×610mm
Detailed configuration
Cummins 6CTA8.3-C190-II engine142kW
Meritor driving axle
Air Conditioner driving cabin
Imported differential mechanism
Advantages
Strong power ,Comfortable driving environment
Adopt imported hydraulic parts
Great working performance
Optional parts
Front mouldboard

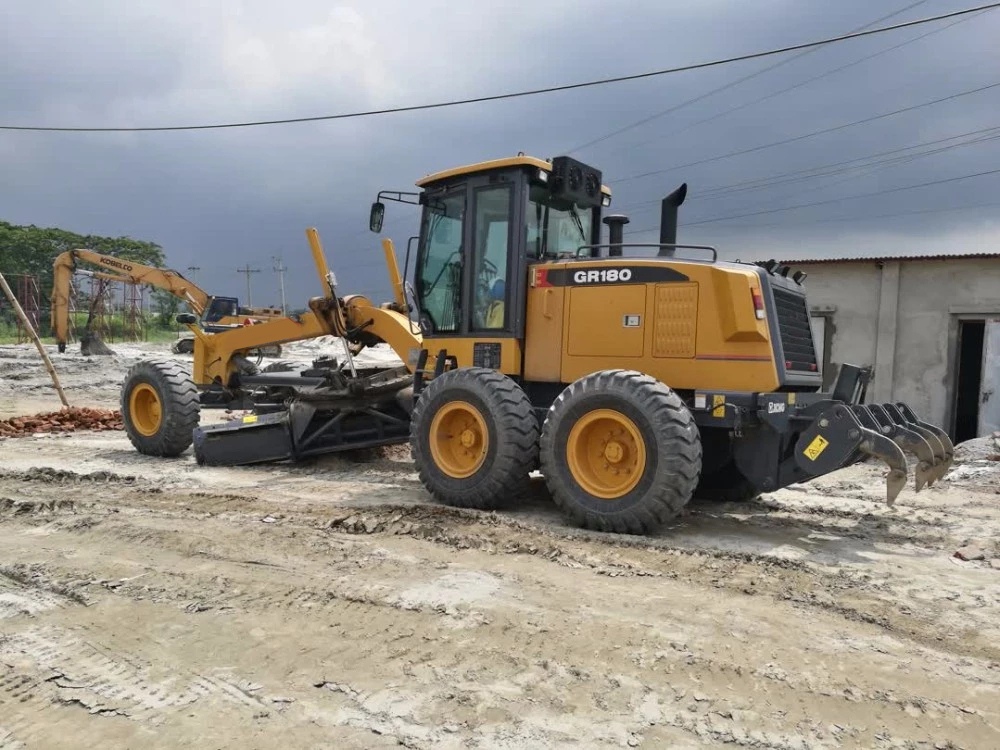

Rear scarifier
Shovel blade
Item | Unit | Specification |
Basic specification | ||
Engine manufacture | Dongfeng Cummins | |
Engine model | 6CTA8.3-C190-Ⅱ | |
Rated power/speed | kW/rpm | 142/2200 |
Overall dimension(standard) | mm | 8900 x 2625 x 3420 |
Total weight(standard) | kg | 15400 |
Tire specification | 17.5-25 | |
Ground clearance | mm | 430 |
Tread | mm | 2156 |
Space of front and rear axles | mm | 6219 |
Space of middle and rear wheels | mm | 1538 |
Performance specification | ||
Forward velocity | km/h | 5、8、11、19、23、38 |
Reverse speed | km/h | 5、11、23 |
Tractive effort f=0.75 | kN | 79 |
Maximum gradeadbility | % | 25 |
Inflation pressure of tires | kPa | 260 |
Working system pressure | MPa | 18 |
Transmission pressure | MPa | 1.3-1.8 |
Working parameters | ||
Maximum steering angle of front wheels | ° | ±50 |
Maximum slant angle of front wheel | ° | ±17 |
Maximum oscillating angle of front axle | ° | ±15 |
Maximum oscillating angle of equilibrium box | ° | Front15° Rear15° |
Maximum steering angle of frame | ° | ±27 |
Maximum turning radius | m | 7.3 |
