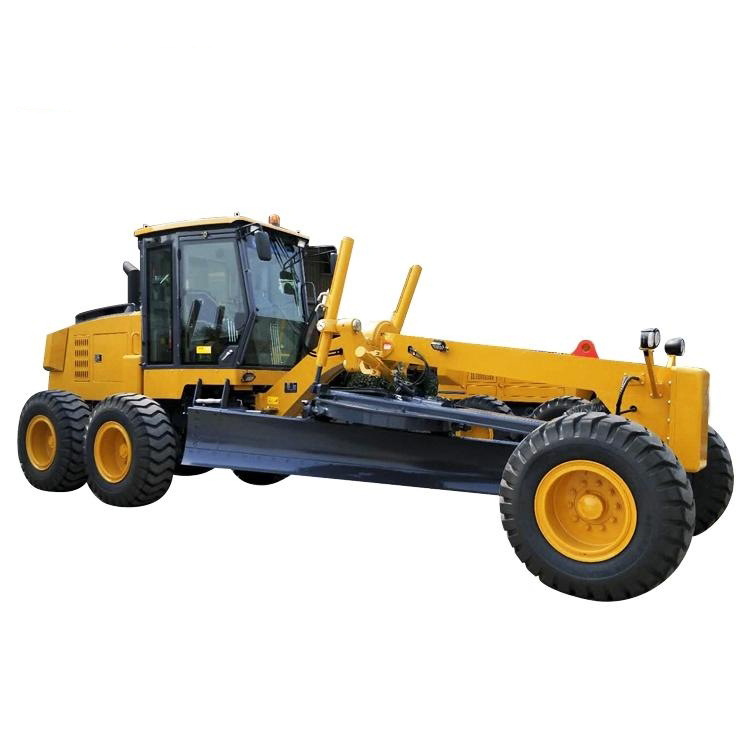

Home > Road machineryMotor GraderXCMG GR2153A Motor Grader
1.The GR215 AVII motor grader adopts Dongkang 6CTA8.3-C215 turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.
2.The gearbox and torque converter are 6WG200 electronically controlled power shift and fixed shaft transmissions produced by Liuzhou ZF. The torque converter has a large torque coefficient, high efficiency, and a wide range of high efficiency. It has good joint performance with engine matching.
3.The drive axle is the Meritor post-production axle.
4.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential.
5.The front steering of the machine adopts a load-sensing full hydraulic steering device.
Item | GR2153A | ||
Basic parameters | Engine model | 6CTA8.3-C215 | |
Rated power/speed | 160kW/2200rpm | ||
Overall dimension (standard) | 8970x2625x3420 | ||
Total weight (standard) | 16100 kg | ||
Tire specification | 17.5-25 | ||
Ground clearance (front axle) | 430mm | ||
Tread | 2156mm | ||
Space of front and rear axles | 6219 mm | ||
Space of middle and rear wheels | 1538 mm | ||
Performance parameters | Forward velocity | 5,8,11,19,23,38km/h | |
Reverse speed | 5,11,23km/h | ||
Tractive effort f=0.75 | 113.8 kN | ||
Maximum gradeability | 30% | ||
Tire inflation pressure | 260kPa | ||
Working system pressure | 18MPa | ||
Transmission pressure | 1.3—1.8Mpa | ||
Working parameters | Maximum steering angle of front wheel | ±50° | |
Maximum slant angle of front wheel | ±17° | ||
Maximum oscillating angle of front axle | ±15° | ||
Maximum oscillating angle of equilibrium box | ±15° | ||
Maximum steering angle of frame | ±27° | ||
Minimum turning radius | 7.3m | ||
Scrape knife | Maximum lift height | 450mm | |
Maximum cutting depth | 500mm | ||
Maximum tilt angle | 90° | ||
Cutting angle | 28°—70° | ||
Angle of revolution | 360° | ||
Length & chord height | 4270x610mm | ||
Oil filling amount | Coolant | 50L | |
Fuel tank | 280L | ||
Engine | 24L | ||
Transmission | 38L | ||
Balancing box | 46L | ||
Drive axle | 28L | ||
Hydraulic oil | 220L | ||
