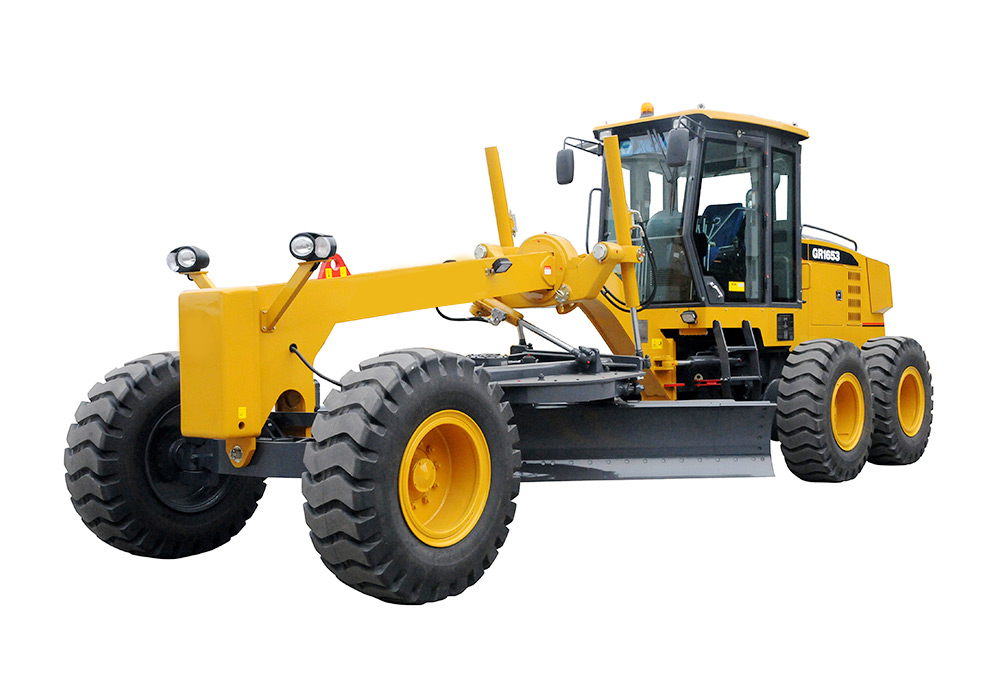

Home > Road machineryMotor Grader XCMG GR1653II Motor Grader
Item | Unit | Specification |
Basic specification | ||
Engine manufacture | Shangchai | |
Engine model | SC7H180.1G3 | |
Rated power/ speed | kW/rpm | 132/2000 |
Dimension(L×W×H)(Standard) | mm | 8600X2625X3420 |
Operating weight(Standard) | kg | 14500 |
Tire size | 17.5-25 | |
Min. ground clearance | mm | 430 |
Wheel track | mm | 2156 |
Distance between front and rear axles | mm | 6219 |
Distance between middle and rear wheels | mm | 1538 |
Performance specification | ||
Travelling speed, forward | km/h | 5、8、11、19、23、38 |
Travelling speed, reverse | km/h | 5、11 |
Max. tractive force | kN | 77 |
Max. graddeability | ≥25% | |
Fuel tank capacity | L | 280 |
Gearbox capacity | L | 38 |
Balance box capacity | L | 46 |
Hydraulic tank capacity | L | 110 |
Operating specification | ||
Blade lifting height | mm | 450 |
Soil shovel depth | mm | 500 |
Blade tilt angle | ° | 90 |
Blade cutting angle | ° | 28-70 |
Front wheel steering angle | ° | ±48 |
Front wheel tilt angle | ° | ±17 |
Frame articulated steering angle | ° | ±27 |
Front axle swing | ° | ±15 |
Balance box swing | ° | Front 15°, Rear 15° |
Minimum turning radius | mm | 7300 |
Blade Max. depth of cutting | mm | 360 |
Blade moldboard width×height | mm | 3965X610 |
