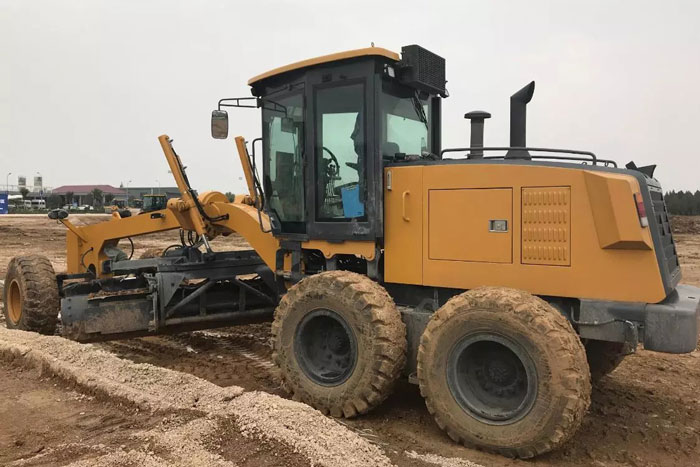

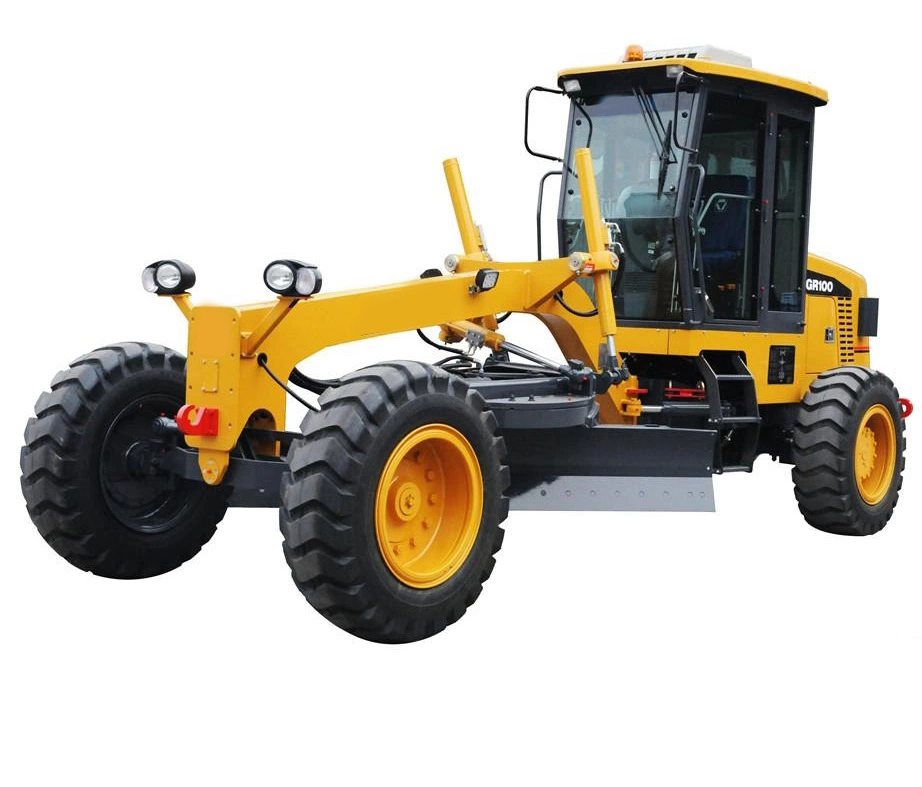

XCMG GR1003 Motor Grader


Similar Product





<<  BACK TO LIST

The GR1003 motor grader is mainly used for ground leveling, ditching, slope scraping,bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.

It is the necessary construction machinery for national defense construction,mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

Item

Unit

Specification

Basic specification

Engine manufacture


Weichai

Engine model


WP4.1

Rated power/speed

kW/rpm

75/2200

Overall dimension(standard)

mm

7130x 2375 x 3150

Total weight(standard)

kg

7500

Tire specification


16/70-24/13.00-24

Ground clearance

mm

550

Tread

mm

1900

Space of front and rear axles

mm

5135

Space of middle and rear wheels

mm

/

Performance specification

Forward velocity

km/h

5、8、11、17、24、38

Reverse speed

km/h

5、11、24

Tractive effort f=0.75

kN

≥39

Maximum gradeadbility

%

≥25

Inflation pressure of tires

kPa

300

Working system pressure

MPa

16

Transmission pressure

MPa

1.3-1.8

Working parameters

Maximum steering angle of front wheels

°

±49

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±15

Maximum swing angle of balance box

°

±16

Maximum steering angle of frame

°

±27

Maximum turning radius

°

6

Blade

Maximum lifting height

mm

310

Maximum shoveling depth

mm

350

Maximum lateral inclination angle

°

45

Cutting angle

°

28-70

Slewing angle

°

120

Length x chord height

mm

3048 x 450

Oil filling amount

Coolant

L

50

Fuel tank

L

260

Engine

L

18

Transmission

L

26

Balance box

L

/

Drive axle

L

28

Hydraulic oil

L

89
