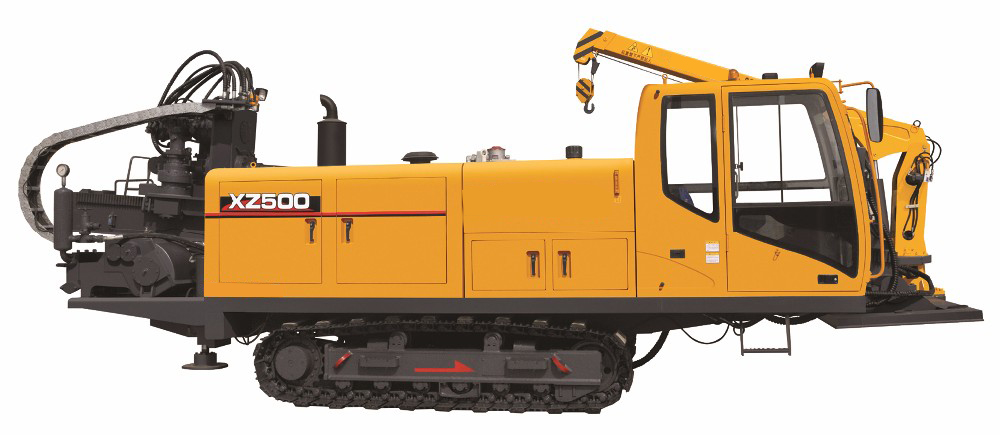

Model | XZ500 | |
Engine | Dongfeng Cummins | |
Rated power | kW | 194 /2200 |
Max.pullback/thrusting | kN | 500 |
Spindle torque(max) | N.m | 18000 |
Spindle speed | r/min | 0～108 |
Spindle travelling speed | m/min | 0～21 |
Backreaming diameter | mm | - |
Tubing length(single) | m | 4.5 |
Tubing diameter | mm | φ89 |
Entry angle | ° | 10～20° |
Mud flow rate(max) | L/min | - |
Mud pressure (max) | bar | - |
Overall weight | kg | 18000 |
DIMENSION (LxWxH) | mm | 9865×2487×2644 |
