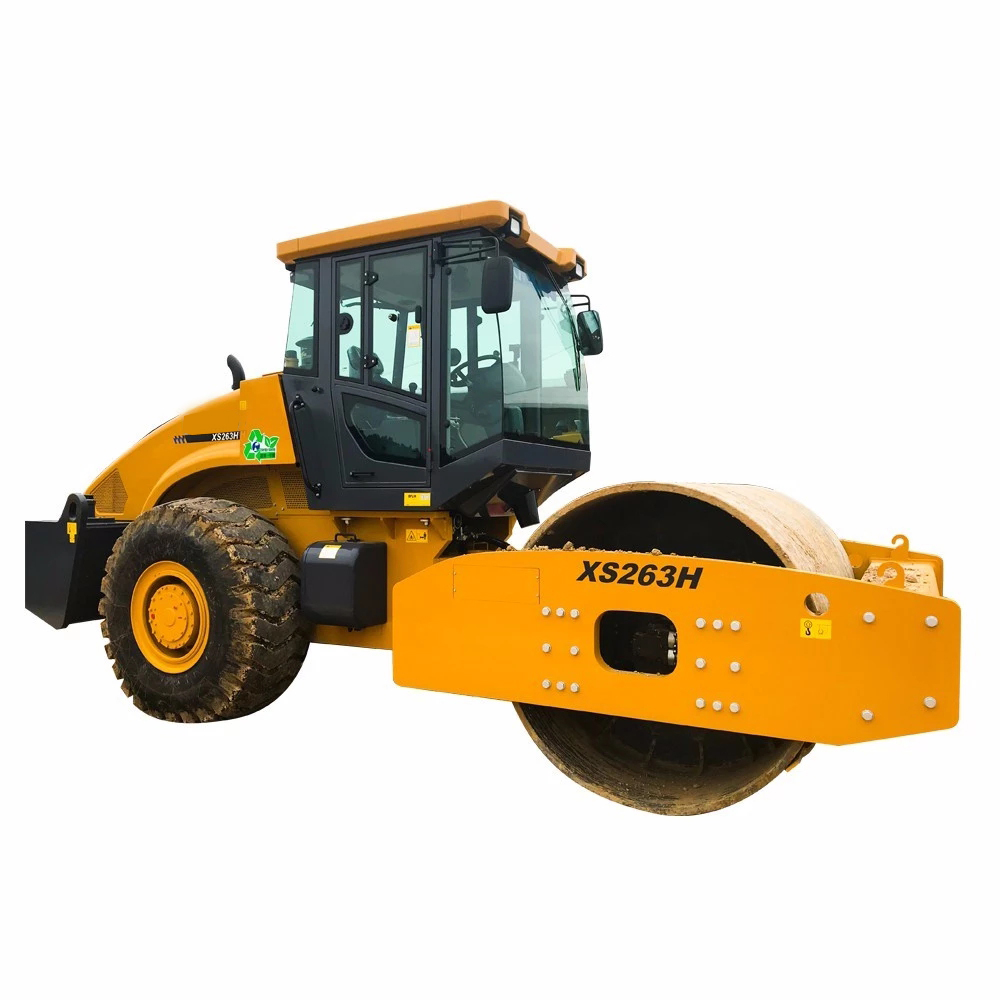

XS263H fully hydraulic single-drive vibratory roller is more comfortable to operate, compaction performance and efficiency are more excellent, and four-stage braking is more safe and reliable. It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.
Specification
Description | Unit | Parameter value |
Work weight | kg | 26000 |
Drive wheel distribution weight | kg | 13000 |
Vibratory drum distribution weight | kg | 13000 |
Static line load | N/cm | 582 |
Vibration frequency | Hz | 27/32 |
Theoretical amplitude | mm | 1.9/0.95 |
Exciting force | kN | 405/290 |
Speed range | km/h | 0-7.3 |
Wheelbase | mm | 3280 |
Compaction width | mm | 2170 |
Theoretical climbing ability | % | 35 |
Minimum turning radius | mm | 6800 |
Vibratory drum diameter | mm | 1600 |
Minimum ground clearance | mm | 500 |
Engine Model | SC8DK200G3 | |
Engine Rated speed | r/min | 2200 |
Engine Rated power | kW | 147 |
Dimensions | mm | 6430×2470×3260 |
Vibration system pressure | MPa | 35 |
Steering system pressure | MPa | 38 |
Drive system pressure | MPa | 16 |
