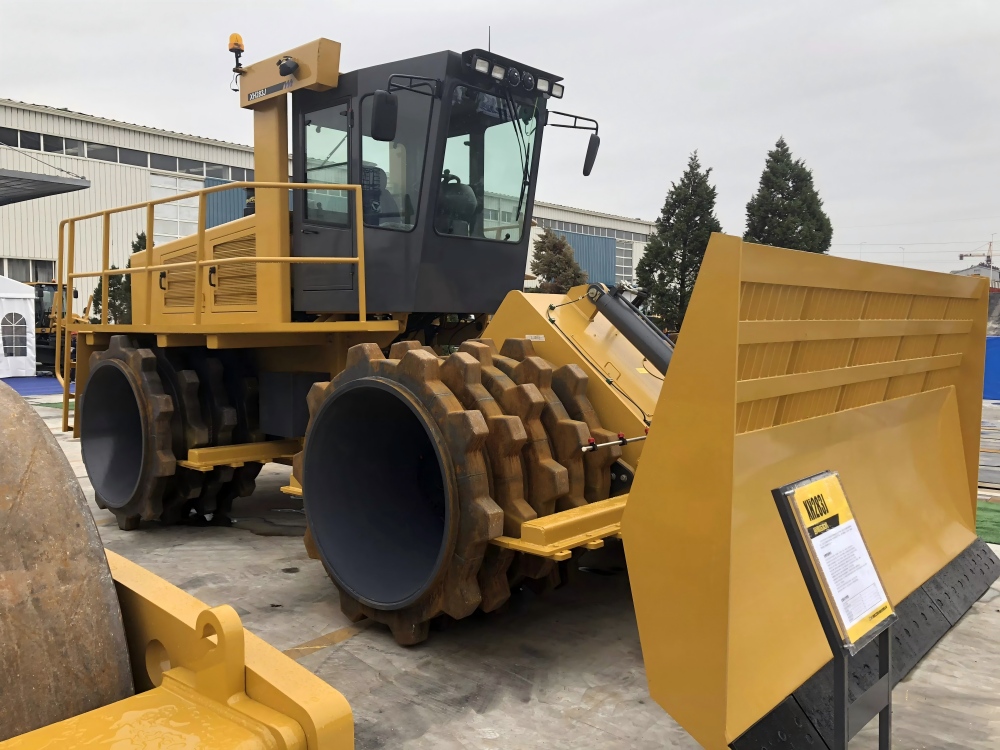

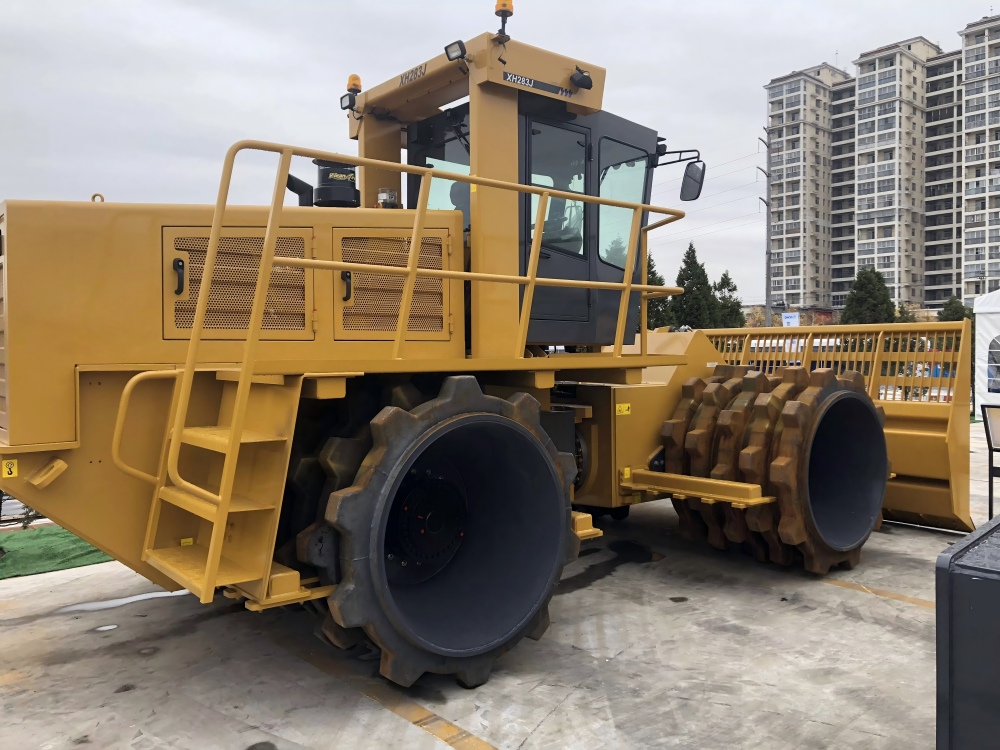

XH283J Backfill compactor is a kind of heavy duty road roller with large unit linear load. It is mainly used for compaction of solid fillers in landfills to extend the service life of landfills and reduce the floor space of landfills.
Performance Characteristics:
Shangchai electronic control engine, in compliance with China stage III emission standards, water-cooled, supercharged electronically controlled engine, high power reserve, low noise, reliable in performance.
The machine frame adopts the closed hull bottom box-like structure to reduce the driving resistance and avoid the garbage entering the engine room.
Crushing and compaction is realized by deep groove and convex block, increasing compaction effect, adhesion force and passing performance.
Roller teeth cross arrangement, dense compaction points, high drum grounding pressure, excludes the compaction soft points.
The front and rear drum can be equipped with the scraping teeth and cutting teeth to avoid foreign body winding.

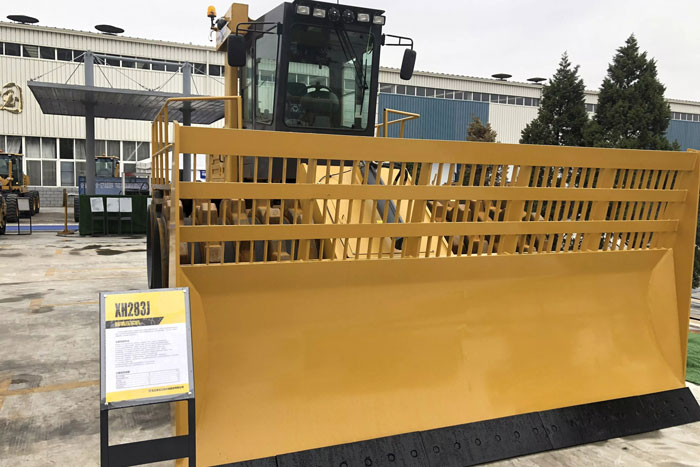

The front part of the machine is equipped with a wide bulldozer, which is used to bulldoze the small deposits in front, improving compaction effect.
Cab is well sealed, double door and interior decoration. The cold/warm multifunctional air conditioner is installed with air catalyst air purification and forced fresh air unit, allowing the driving room with fresh air and comfortable environment even under poor conditions.
Product Paramenters
ltem | Unit | XH283J |
Total Weight | kg | 28000 |
Rolling compaction width | mm | 3710 |
Travel speed | km/h | 4.4/7.7/10.7 |
Maximum gradeability | 100% | |
Minimum turning radius | mm | 6700 |
Blade height x width | mm | 2000*3800 |
Ground clearance | mm | 460 |
Drum size diameter*width frontrear | mm | 1620*1280/1620*1115 |
Engine brand | Shangchai | |
Engine power | kW | 192 |
Engine rated speed | r/min | 2200 |
Overall dimension of blade | mm | 7680*3800*3860 |
