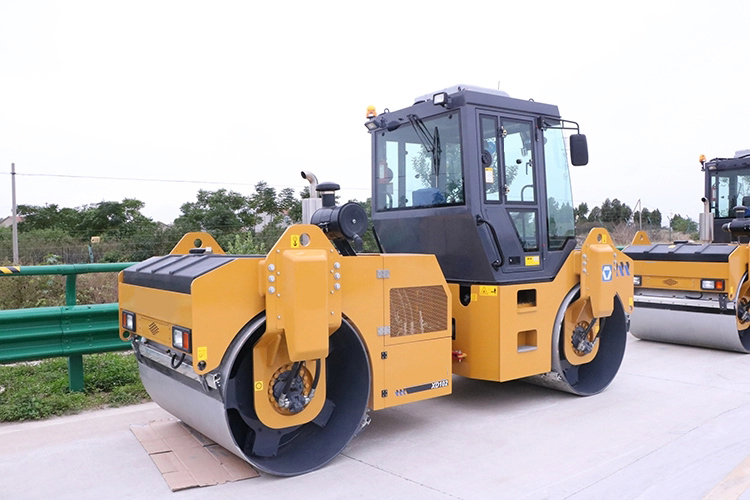

Home > Road machineryRoad rollerXCMG XD103 Hydraulic Double Drum Vibratory Roller
Similar Product
Select the products
Parameter | Unit | XD103 | |
Weight distribution | Working weight | kg | 10000 |
Front wheel distribution weight (kg) | 5000 | ||
Rear wheel distribution weight (kg) | 5000 | ||
Compaction performance | Static linear load | N/cm | 280/280 |
Nominal amplitude | mm | 0.35/0.6 | |
Vibration frequency | Hz | 58/48 | |
Exciting force (high frequency/low frequency) | kN | 90/110 | |
Vibration wheel size | mm | 1150*1750 | |
Maneuverability | Speed range | km/h | 0~6/0~12 |
Theoretical gradeability | % | 35 | |
Minimum turning radius mm (in/out) | 4070/5820 | ||
Swing angle | ° | ±10 | |
Steering angle | ° | ±38 | |
Engine | Rated power | kW | 74.9 |
Rated speed | r/min | 2300 | |
Dimension（LxWxH） | 4900x1750x3087mm | ||
