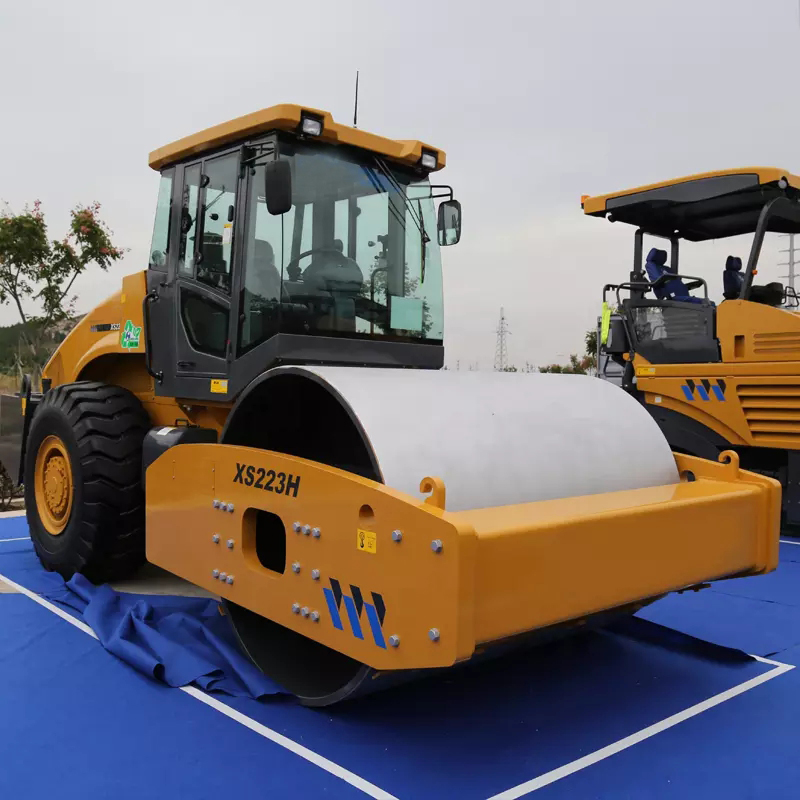

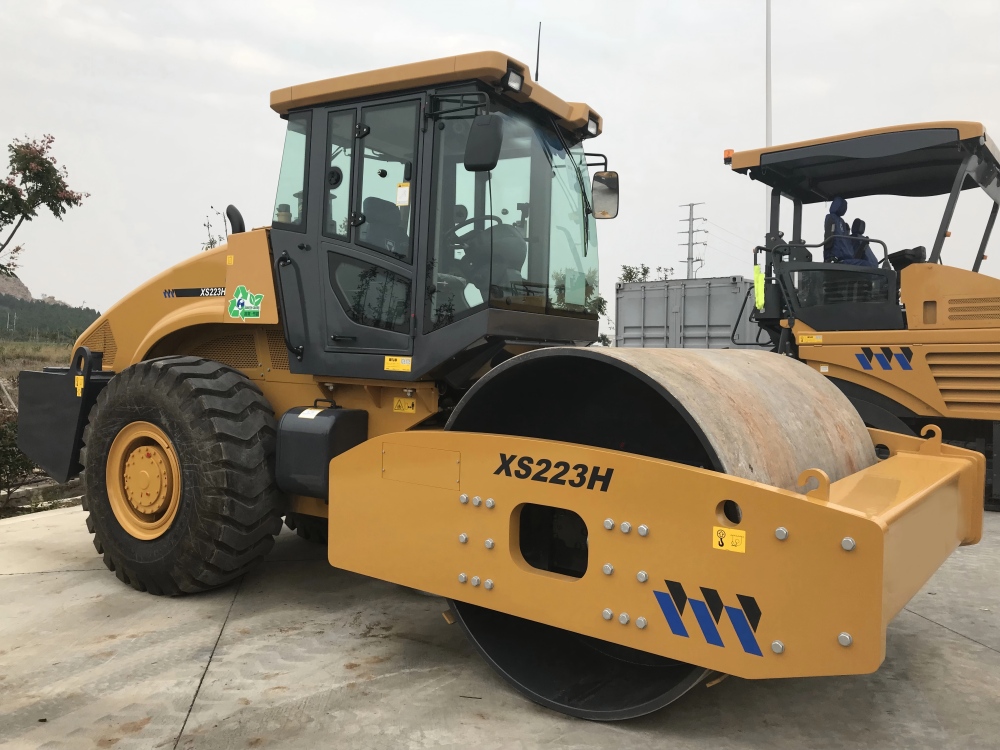

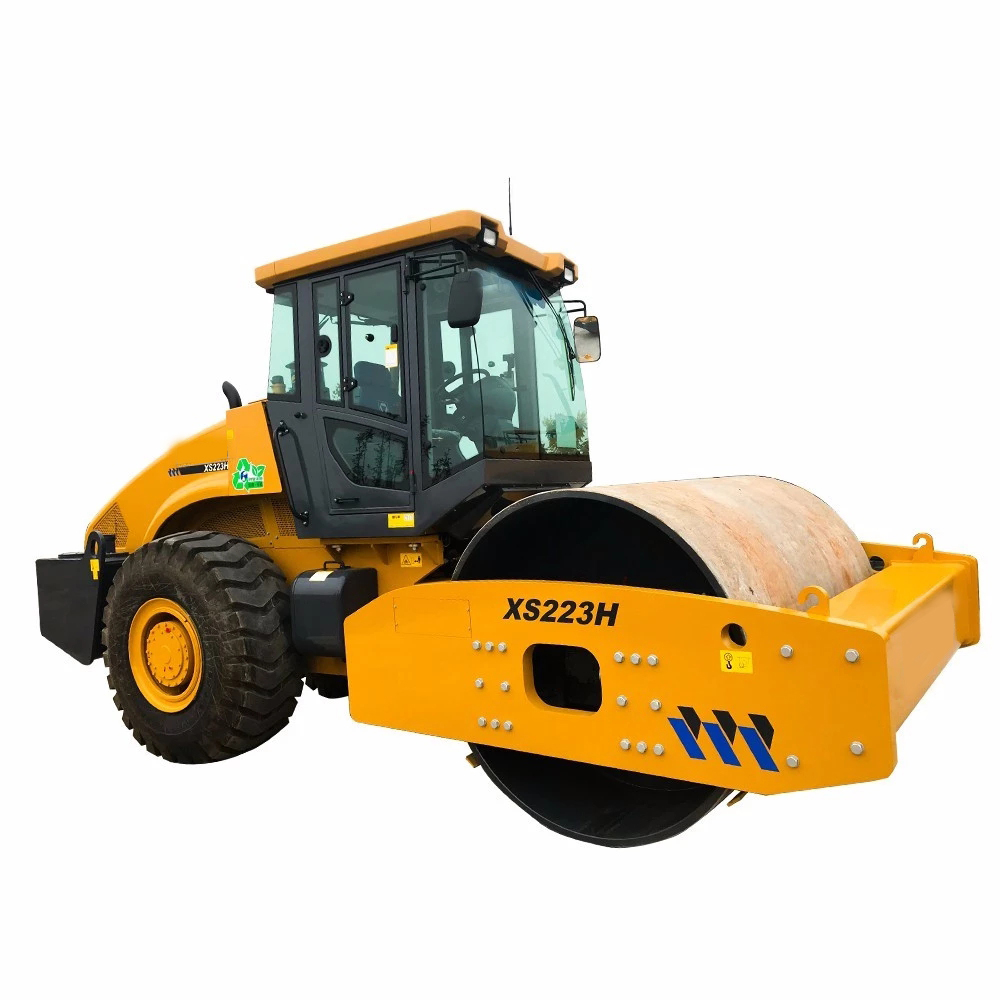

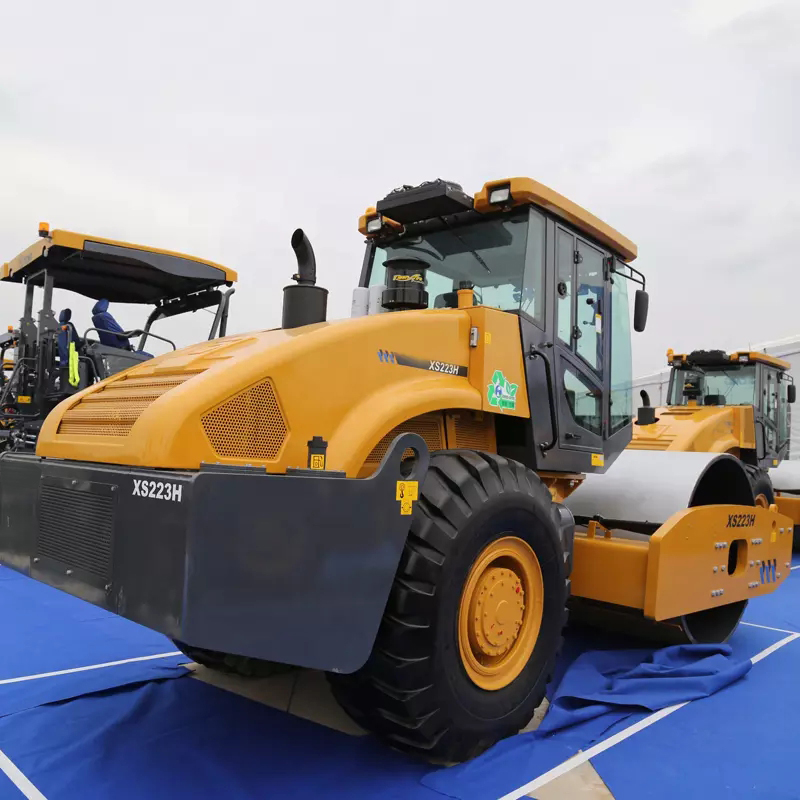

XS223H Hydraulic Single Drum Vibratory Roller


Similar Product


Select the products




<<  BACK TO LIST

The XS223H fully hydraulic single-drive vibratory roller is more comfortable to operate, with superior compaction performance and efficiency, and four-stage braking is more safe and reliable. It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.



Specification

Description

Unit

Parameter value

Work weight

kg

22000

Drive wheel distribution weight

kg

11000

Vibratory drum distribution weight

kg

11000

Static line load

N/cm

516

Vibration frequency

Hz

28/33

Theoretical amplitude

mm

1.86/0.93

Exciting force

kN

374/290

Wheelbase

mm

3180

Compaction width

mm

2130

Theoretical climbing ability

%

44

Minimum turning radius

mm

6500

Vibratory drum diameter

mm

1600

Minimum ground clearance

mm

440

Engine Model


SC8DK200G3

Rated speed

r/min

2200

Rated power

kW

140

Dimensions

mm

6220×2430×3200

Vibration system pressure

MPa

35

Steering system pressure

MPa

38

Drive system pressure

MPa

16
