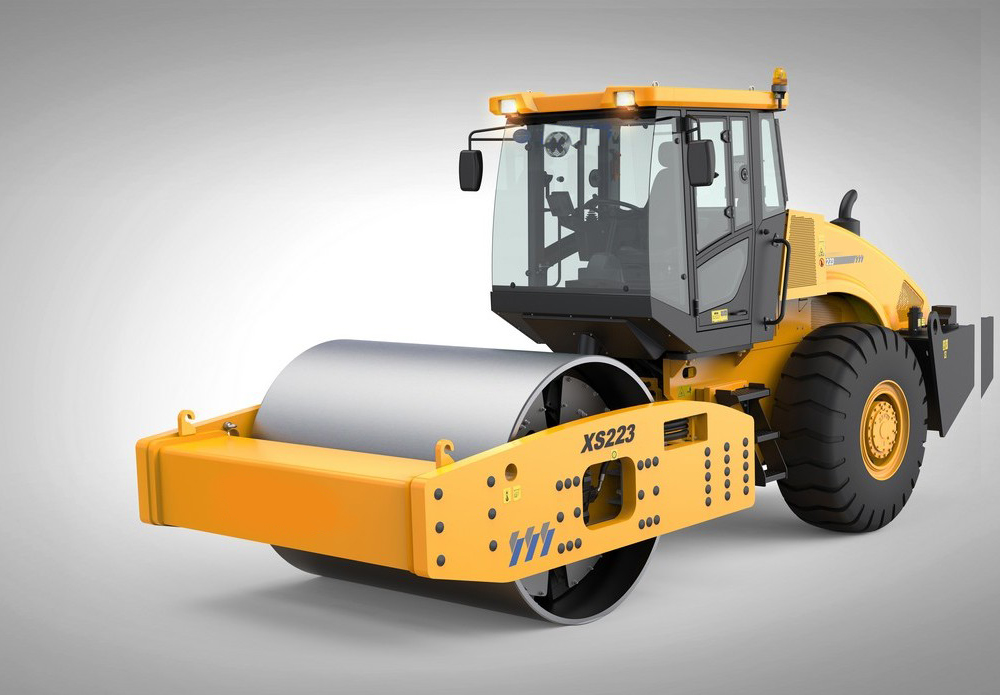

Home > Road machineryRoad roller XCMG XS223 Hydraulic Single Drum Vibratory Roller
Similar Product
Select the products
Item | Unit | Specification |
Working performance | ||
Static linear load | N/cm | 704 |
Vibration frequency | Hz | 28/33 |
Theoretical amplitude of vibration | mm | 1.86/0.93 |
Centrifugal force | kN | 390/270 |
Drum width | mm | 2130 |
Min. ground clearance | mm | 466 |
Travelling performance | ||
Speed range I |
km/h |
0-4.2 |
II | km/h | 0-5.3 |
III | km/h | 0-6.7 |
IV | km/h | 0-10.4 |
Theoretical gradeability | % | 50% |
Min. turning radius | mm | 6500 |
wheel base | mm | 6500 |
Weight | ||
Operating weight | kg | 22000 |
Distributed weight on front drum | kg | 7000 |
Distributed weight on vibrating drum | kg | 15000 |
Dimensions | ||
Overall dimensions(L×W×H) | mm | 6222×2430×3200 |
Engine | ||
Model | Shangchai | |
Rated speed | r/min | 2000 |
Rated power | kW | 140 |
The fuel consumption | g/kW·h | 214 |
