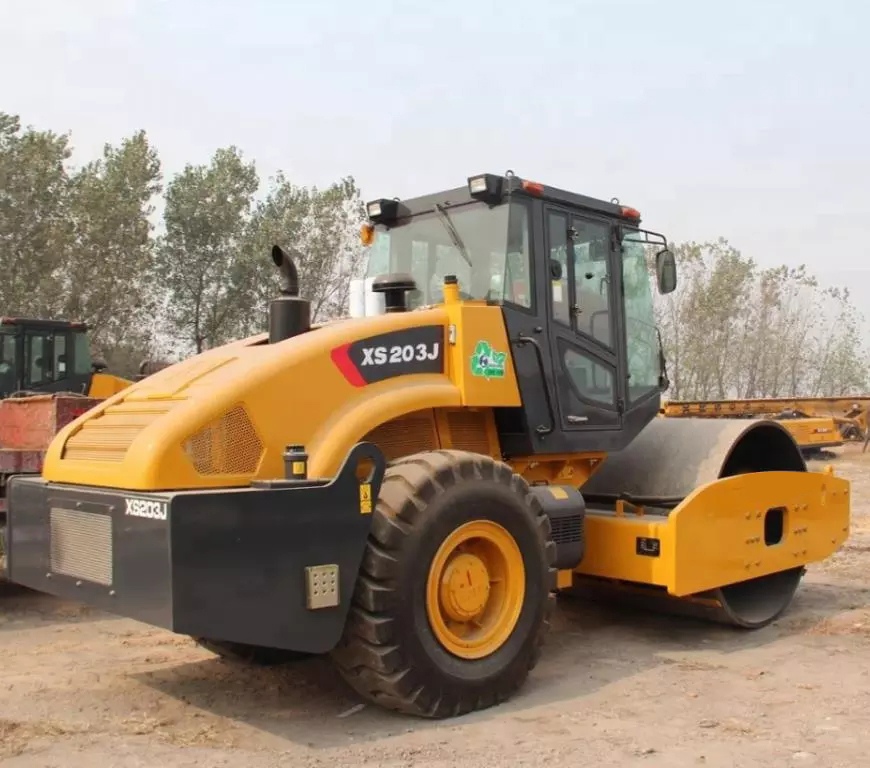

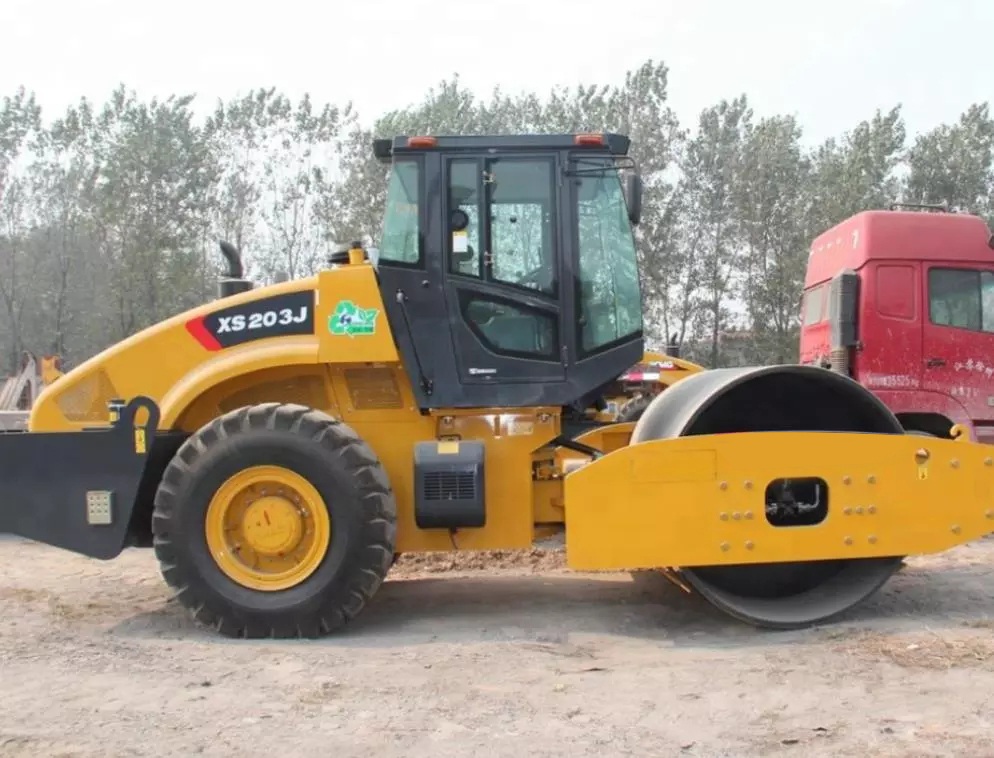

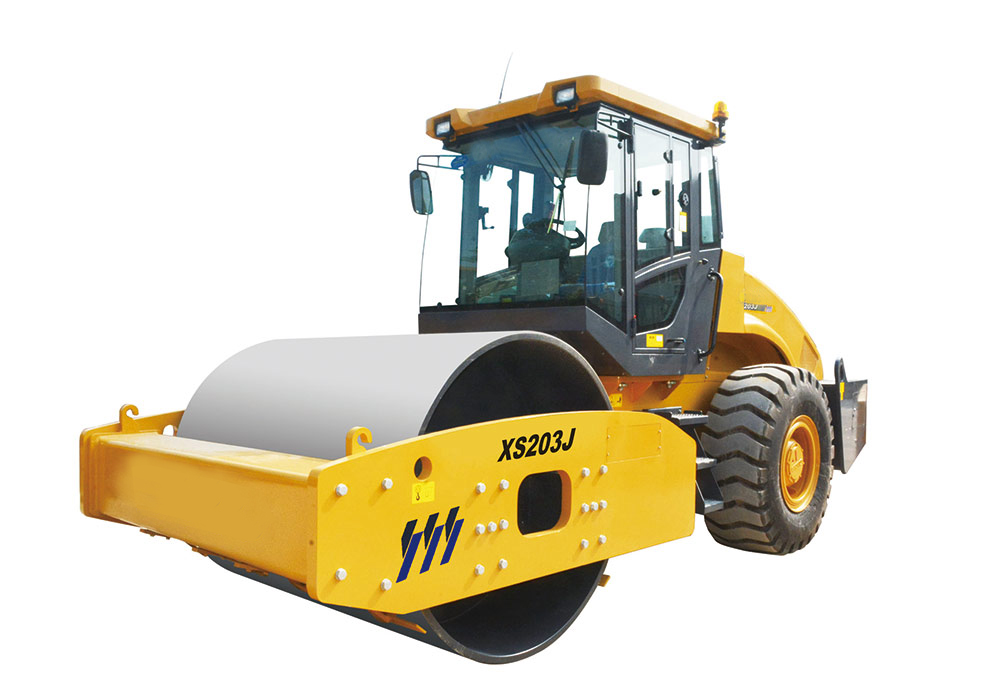

Home > Road machinery>Road roller>XCMG XS203J Mechanical Single Drum Vibratory Roller





Similar Product

Select the products

<< BACK TO LIST

Item	Unit	Specification
Working performance
Static linear load	N/cm	470
Theoretical amplitude of vibration	mm	1.9/0.95
Centrifugal force	kN	353/245
Travelling performance
Speed range Forward I	km/h	2.95
Forward II	km/h	5.78
Forward III	km/h	9.4
Backward I	km/h	2.95
Backward II	km/h	5.78
Backward III	km/h	9.4
Theoretical gradeability	%	30%
Min. turning radius	mm	6500
Braking distance	m	＜3.46
Weight
Operating weight	kg	20000
Distributed weight on driving drum	kg	10000
Distributed weight on vibrating drum	kg	10000
Dimensions
Overall dimensions(L×W×H)	mm	6220×2430×3200
Wheel base	mm	3180
Drum width	mm	2130
Steering angle.	°	±33
Oscillation angle	°	±11
Min. ground clearance	mm	448
Engine
Model		Shangchai SC8D175.2G2B1
Rated speed	r/min	1800
Rated power	kW	128
Emission Standard		Non-road, National II
