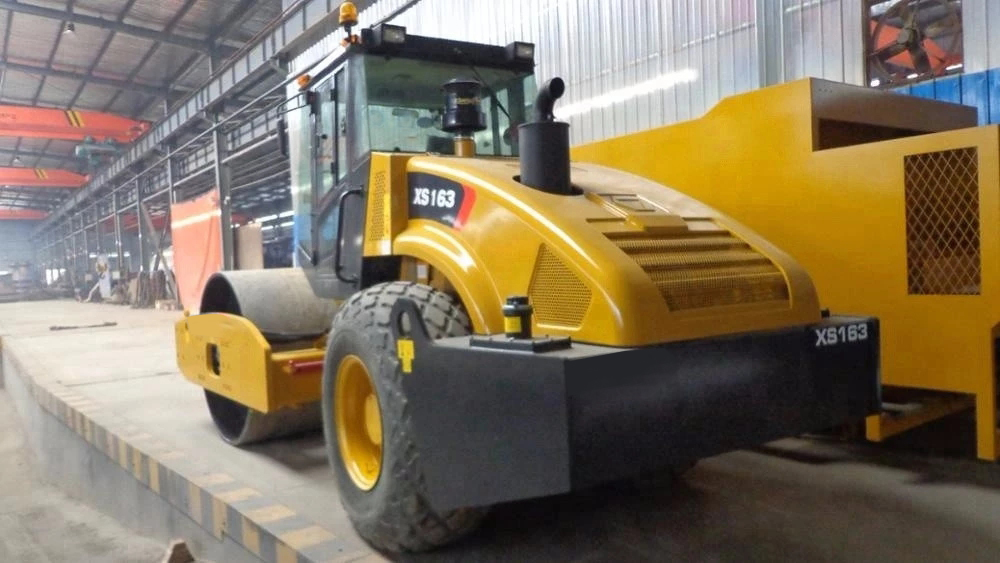

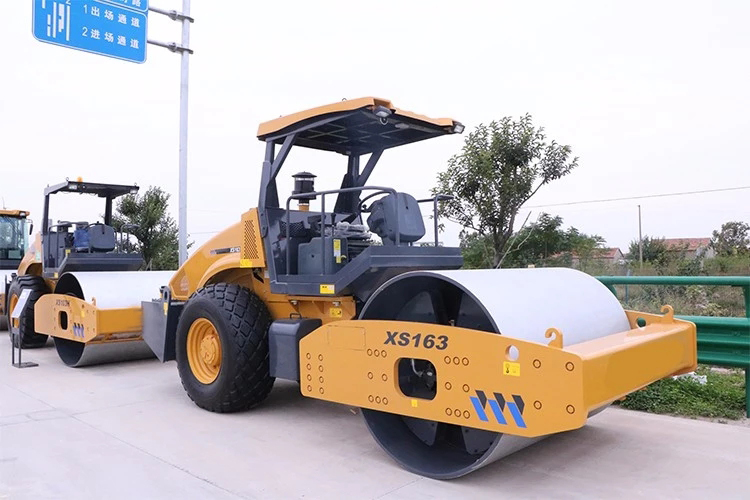

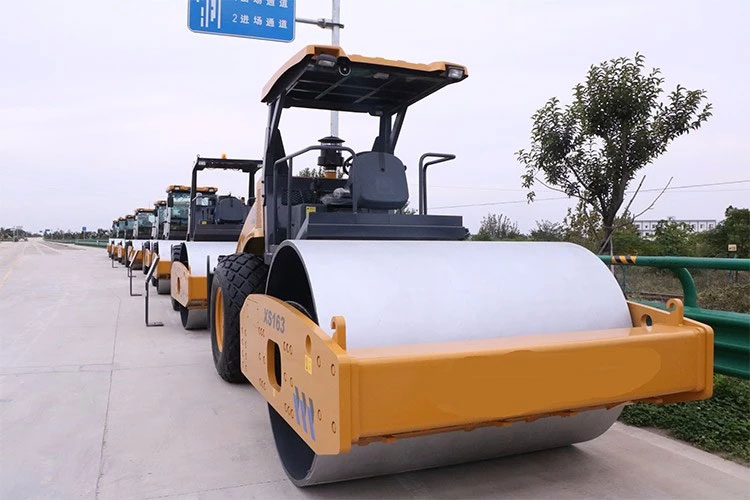

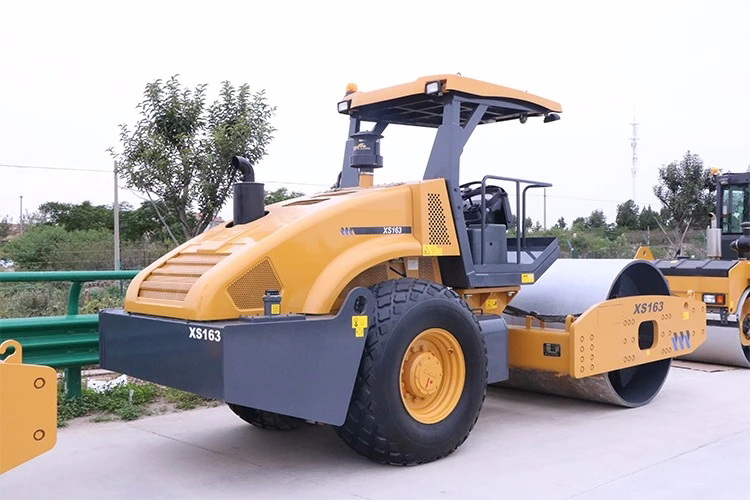

Home > Road machineryRoad rollerXCMG XS163 Hydraulic Single Drum Vibratory Roller
Similar Product
Select the products
Main parameter
Operating weight :16 tons ,
Drum width: 2130 mm,
Detailed configuration
Cummins 6BTAA5.9-C170 engine 125kw ,
Rexroth hydraulic system,
DANA axle
Type | Unit | XS163 |
Load applied on front drum | kg | 9900 |
Load applied on rear wheels | kg | 6100 |
Compacting width | mm | 2130 |
Grade Ability | % | 35 |
Static linear load | N/cm | 464 |
Vibration frequency(Low/High) | Hz | 28/35 |
Nominal amplitude(High/Low) | mm | 1.86/0.88 |
Exiting force(High/Low) | KN | 320/235 |
Swing angle | ° | ±10 |
Min. tuining extemal radius | mm | 6415 |
Engine model | 6BTAA5.9-C170 | |
Engine power | kw | 125 |
Engine oil consumption | g/kW.h | 232 |
Hydraulic oil tank capacity | L | 250 |
Fuel tank capacity | L | 250 |
Dimension(L*W*H) | mm | 6222*2300*3200mm |
