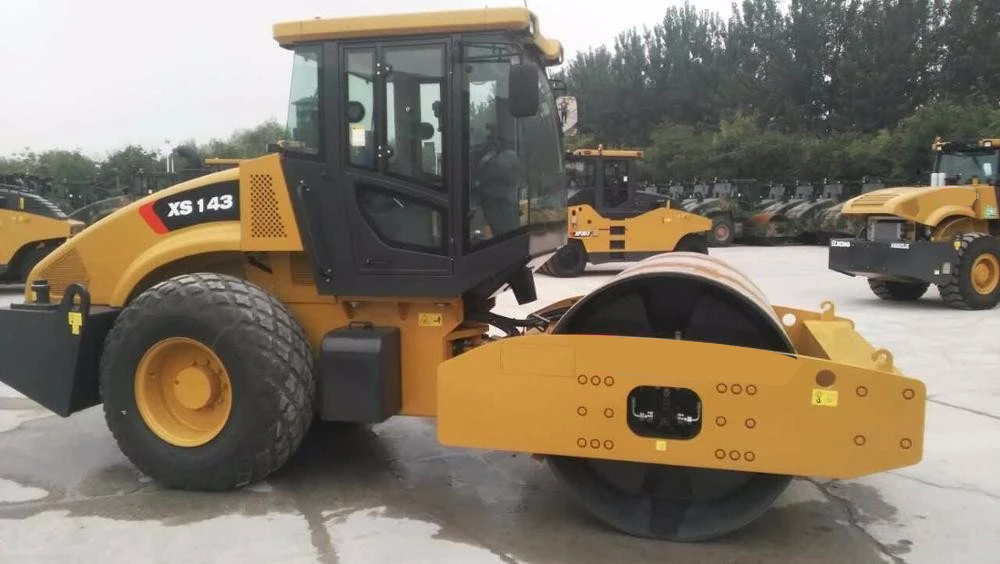

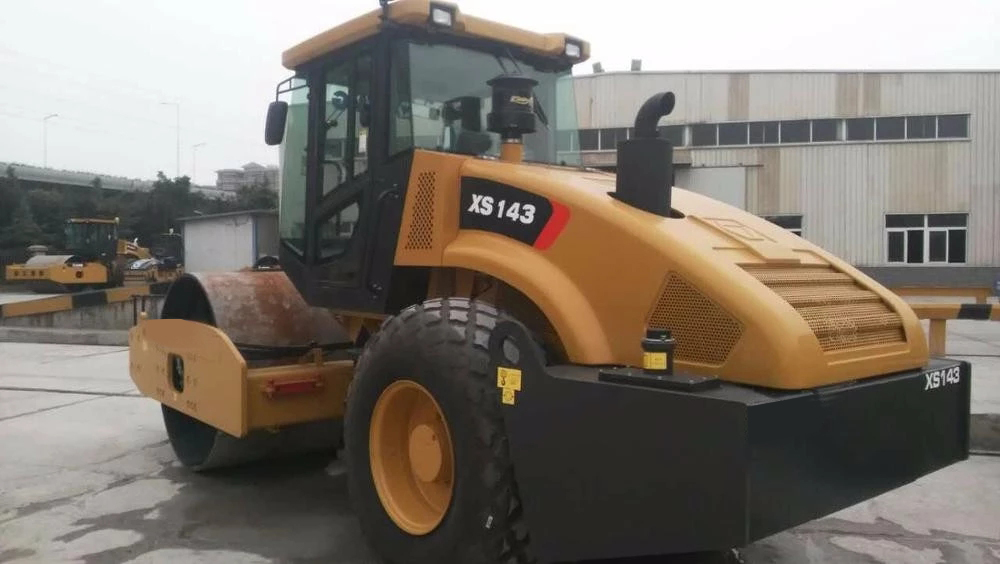

Home > Road machinery>Road roller>XCMG XS143 Hydraulic Single Drum Vibratory Roller





Similar Product

Select the products

<< BACK TO LIST

Description	Unit	Parameter value
Work weight	kg	14000
Drive wheel distribution weight	kg	7000
Vibratory drum distribution weight	kg	7000
Static line load	N/cm	315
Vibration frequency	Hz	28/33
Theoretical amplitude	mm	1.9/0.95
Exciting force	kN	274/190
Speed range	km/h	0-7.3
Wheelbase	mm	3040
Compaction width	mm	2130
Theoretical climbing ability	%	30
Minimum turning radius	mm	6800
Vibratory drum diameter	mm	1523
Minimum ground clearance	mm	431
Engine	Model	Dongfeng Cummins
	Rated speed	2200 r/min
	Rated power	125kW
Dimensions	mm	6150×2300×3200
Vibration system pressure	MPa	18
Steering system pressure	MPa	16
