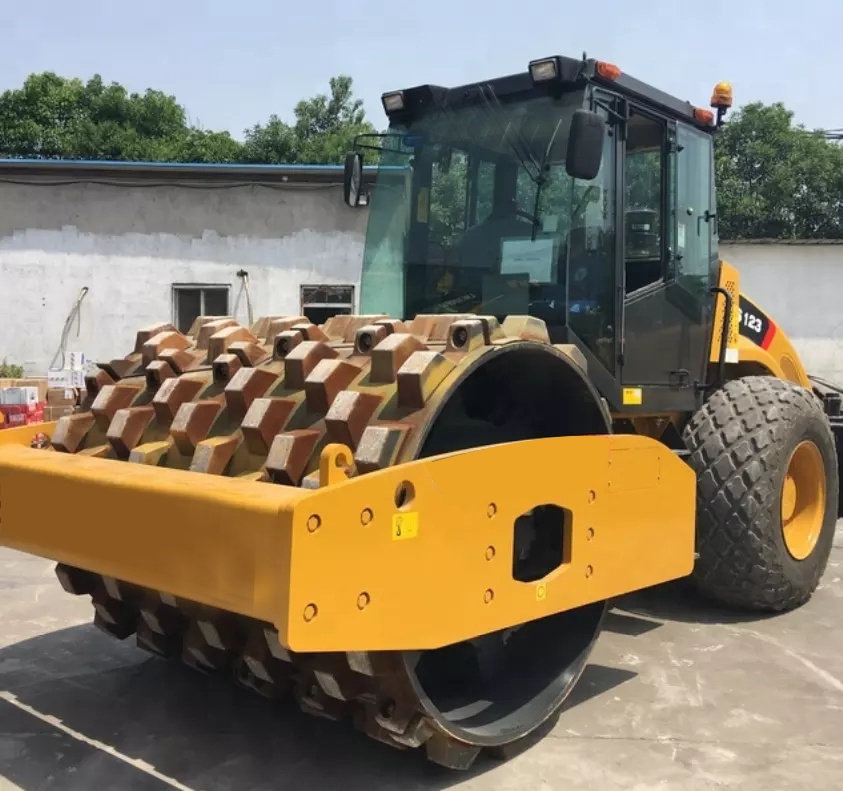

XS123 single drum roller is medium, self-propelled, full-hydraulic vibratory roller, has the big exciting force, high compaction efficiency, good compaction quality, used mainly for compaction operation of base coarse, sub-base coarse, stone filling of high-speed railway, high-grade highway, airport, harbor, dams and industrial construction site.
Specification
Item | Unit | Parameters |
Operating weight | kg | 12000 |
Weight at Drum | kg | 6700 |
Weight at axle | kg | 5300 |
Static linear load | kg/cm | 31.5 |
Driving speed ( gear I) | km/h | 0-5 |
Driving speed ( gear II) | km/h | 0-10.8 |
Theoretical gradeability | % | 45 |
Minimum turning radius | mm | 6800 |
Tire specification | 23.1-26-12G23TL | |
ply rating | 12 | |
Air pressure | kPa | 150-170 |
Engine manufacturer | Cummins | |
Type | QSB4.5 | |
Emission | EURO III | |
Rated power | kW | 93 |
Rated speed | rpm | 2300 |
Voltage | V | 24 |
Vibrational frequency | Hz | 30/35 |
Nominal amplitude | Mm | 1.8/0.9 |
Exciting force | kN | 280/190 |
Engine oil | L | 16.3 |
Fuel tank | L | 240 |
Hydraulic tank capacity | L | 240 |
Coolant | L | 20 |
Front drum chamber | L | 40 |
Front drum reducer | L | 27 |
