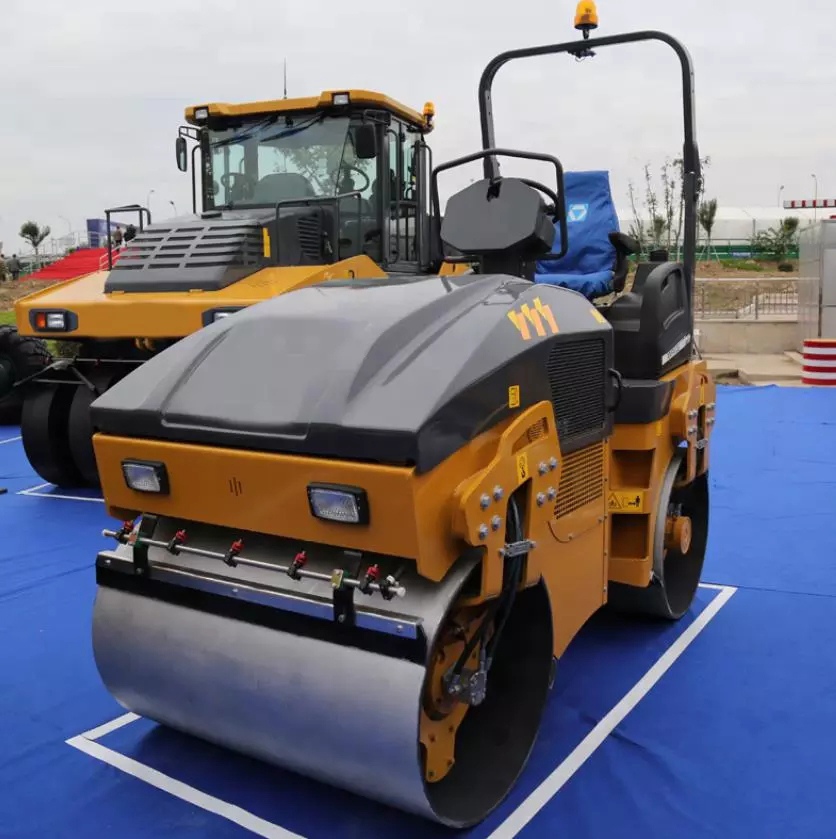

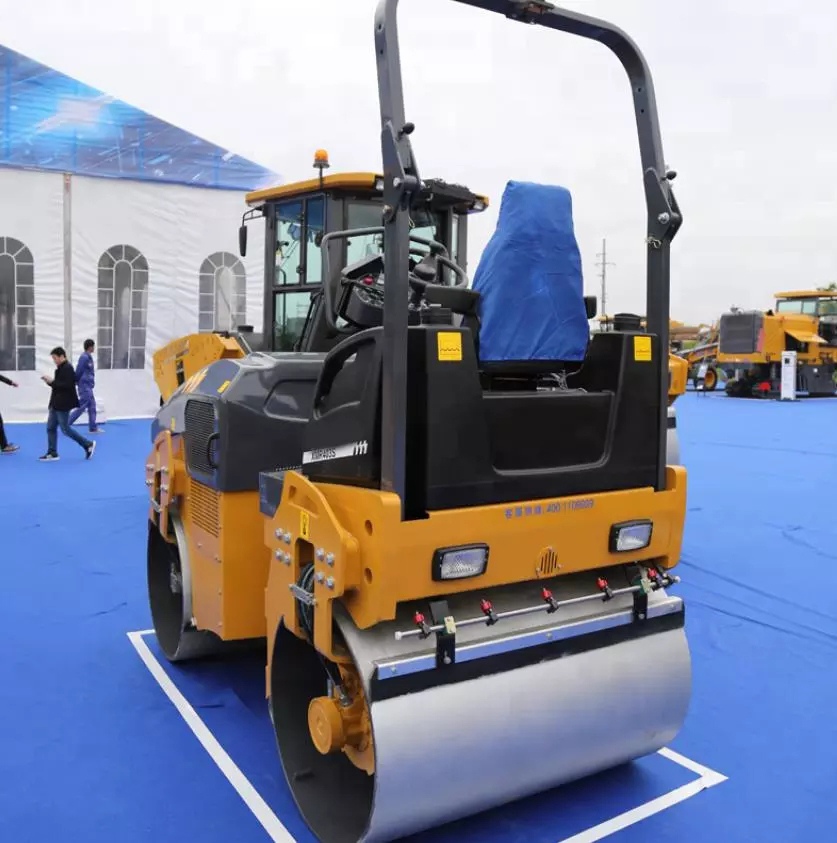

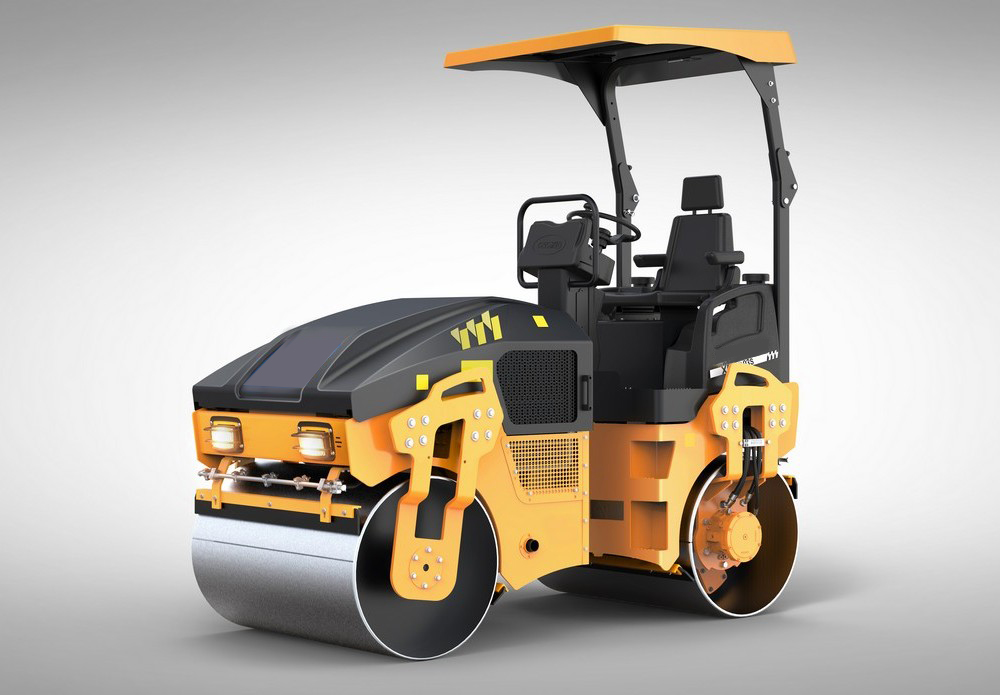

XMR403S light double drum vibratory roller is suitable for surface compaction and curb compaction of asphalt engineering, cement engineering, etc.

It is also suitable for compaction of base and base, sand and gravel materials.

Main parameter:

Working mass: 4100kg

Drum width: 1300mm

Detailed configuration

Perkins engineZN490Q,40kw,(National III)

Exiting force: 42KN

Imported brand double Driving & single Vibracting system

Cabin with Ceiling

Description	Unit	Parameter value
Working weight	kg	4100
Static line load (front/rear)	N/cm	157/157
Vibration frequency	Hz	60
amplitude	mm	0.41
Exciting force	kN	42
Vibration wheel (diameter x width)	mm	800×1300
Theoretical climbing ability	%	30
Speed of work	km/h	0-10.6
Wheelbase	mm	1920
Steering angle		±30°
Swing angle		±10°
Minimum turning radius (inner) / (outside)	mm	3062 / 4362
Minimum ground clearance	mm	348
engine model		Perkins 404D-22T
rated power	kW	40
Rated speed	r/min	2600
Overall dimensions(L×W×H)	mm	2720x1416x2776
